Omicron CP CR500 - Low-Voltage Connector (LV); Safety Connection; Equipotential Ground

CP CR500
12
3.3 Low-Voltage Connector (LV)
The CP CR500 provides one low-voltage connector LV for connecting with
CP TD1 and, if necessary, to another CP CR500 (Figure 3-1: ”CP CR500’s
Interface Panel” on page 12).
3.4 Safety Connection
On the interface panel of the CP CR500, there are two D-Sub 9 connectors
(male and female) named Safety A (male) and Safety B (female).
These connectors are used for the safety circuit.
3.5 Equipotential Ground
The connector EG is connected with the CP CR500's equipotential ground
(functional earth, protective earth).
Caution:
For a safe operation make sure that all units involved and the trolley, if used, are
connected to the common equipotential ground. Use earth connection cables of
at least 6 mm² cross-section. Never operate the test setup without solid
grounding.

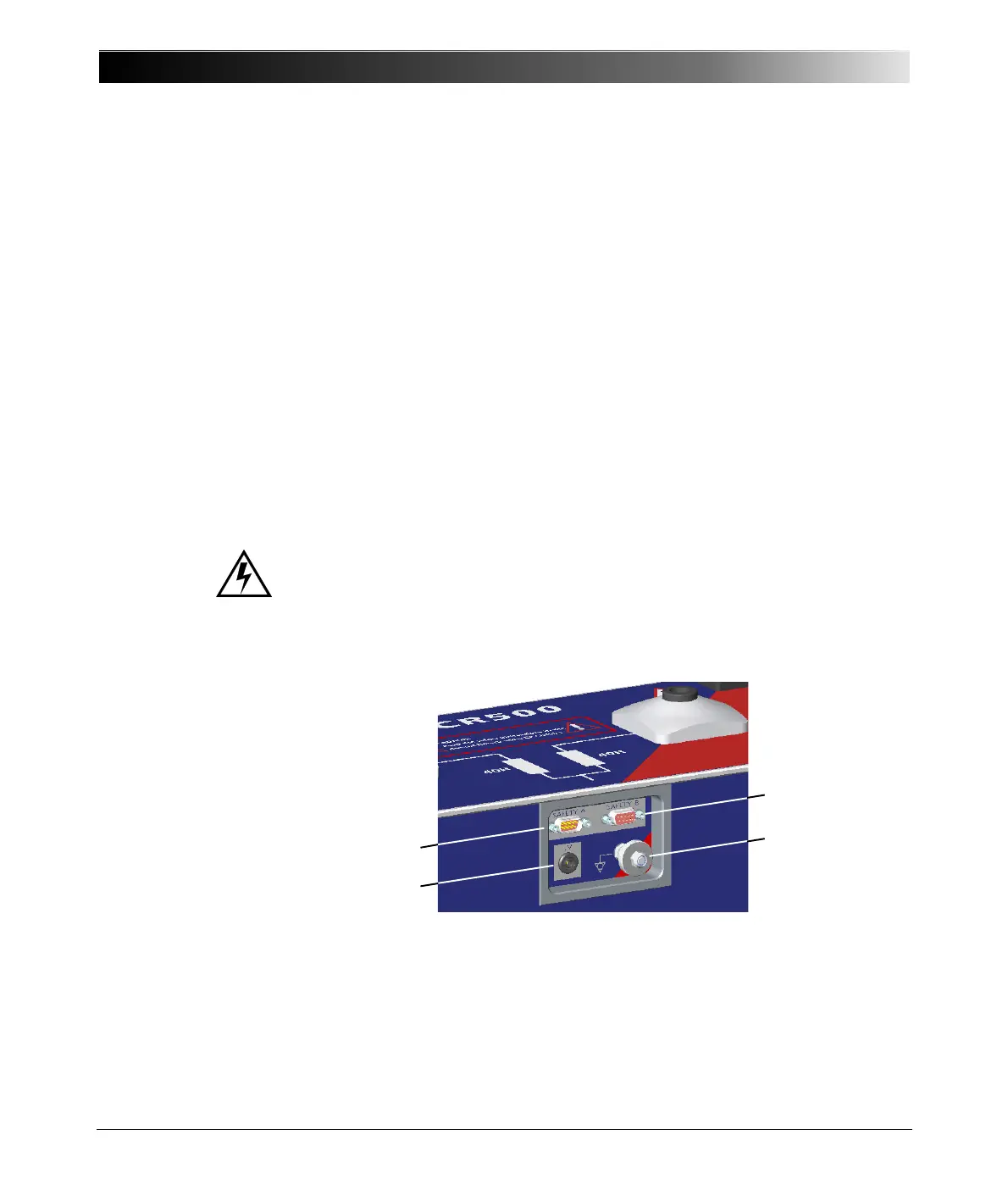

Figure 3-1:
CP CR500’s Interface
Panel
Safety B
(D-Sub 9
female)
Safety A
(D-Sub 9 male)
LV connector
(low voltage)
Connector for
equipotential
ground
