6.6 Appendix

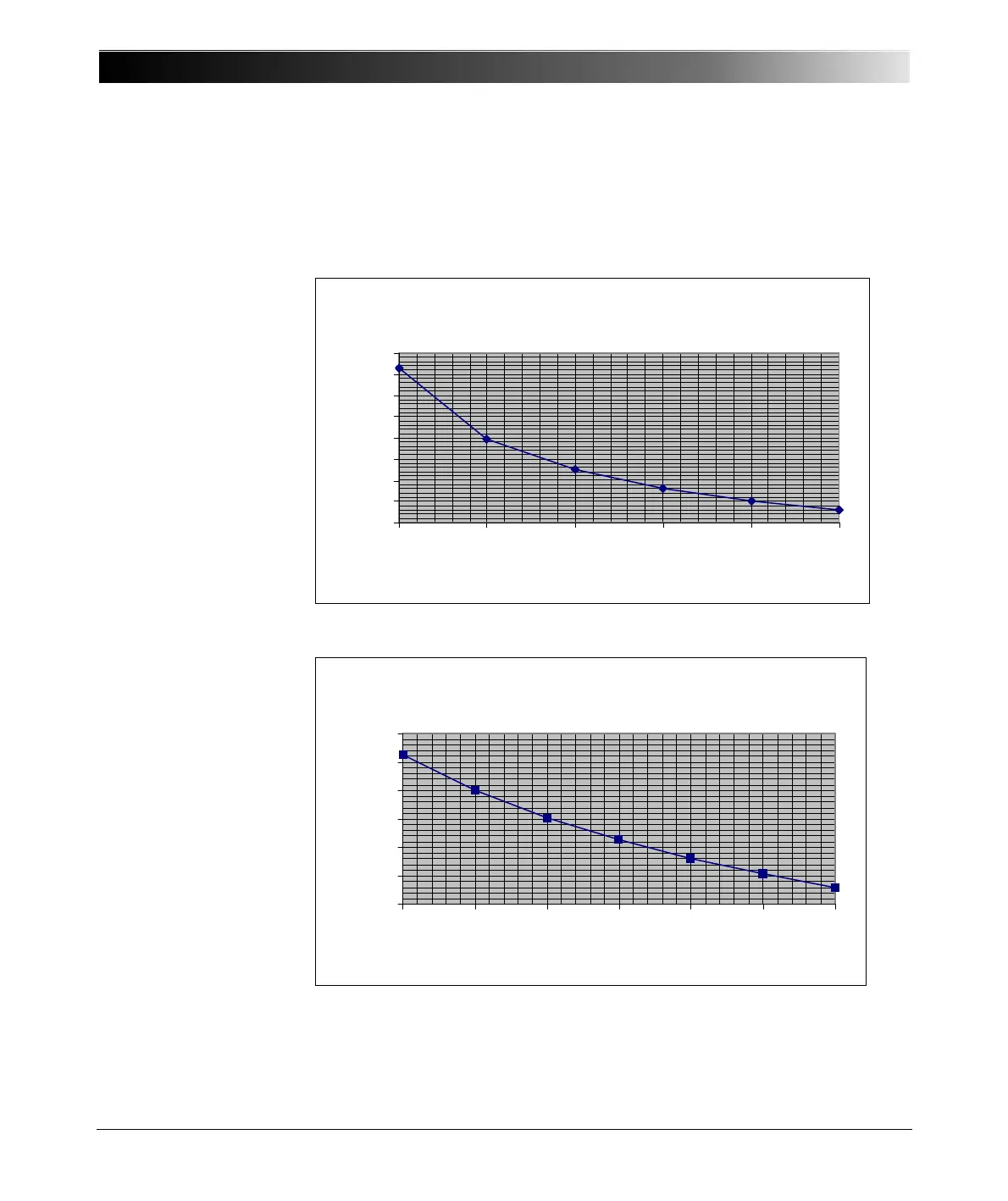

Resonance frequencies = function of capacity at different numbers of
compensation inductors.
1 L [40H]
40
50
60
70
80
90
100
110
120
0.05 0.10 0.15 0.20 0.25 0.30
Capacitance [µF]
Frequency [Hz
]
2 L [20H]
45.0
50.0
55.0
60.0
65.0
70.0
75.0
0.25 0.30 0.35 0.40 0.45 0.50 0.55
Capacitance [µF]
Frequency [Hz
]
