31
Diagnostic of Rotating Machines Insulation
This result can also be determined using the graph in picture "Resonance
frequencies = function of capacity" on page 36 in section 6.6 ”Appendix”.

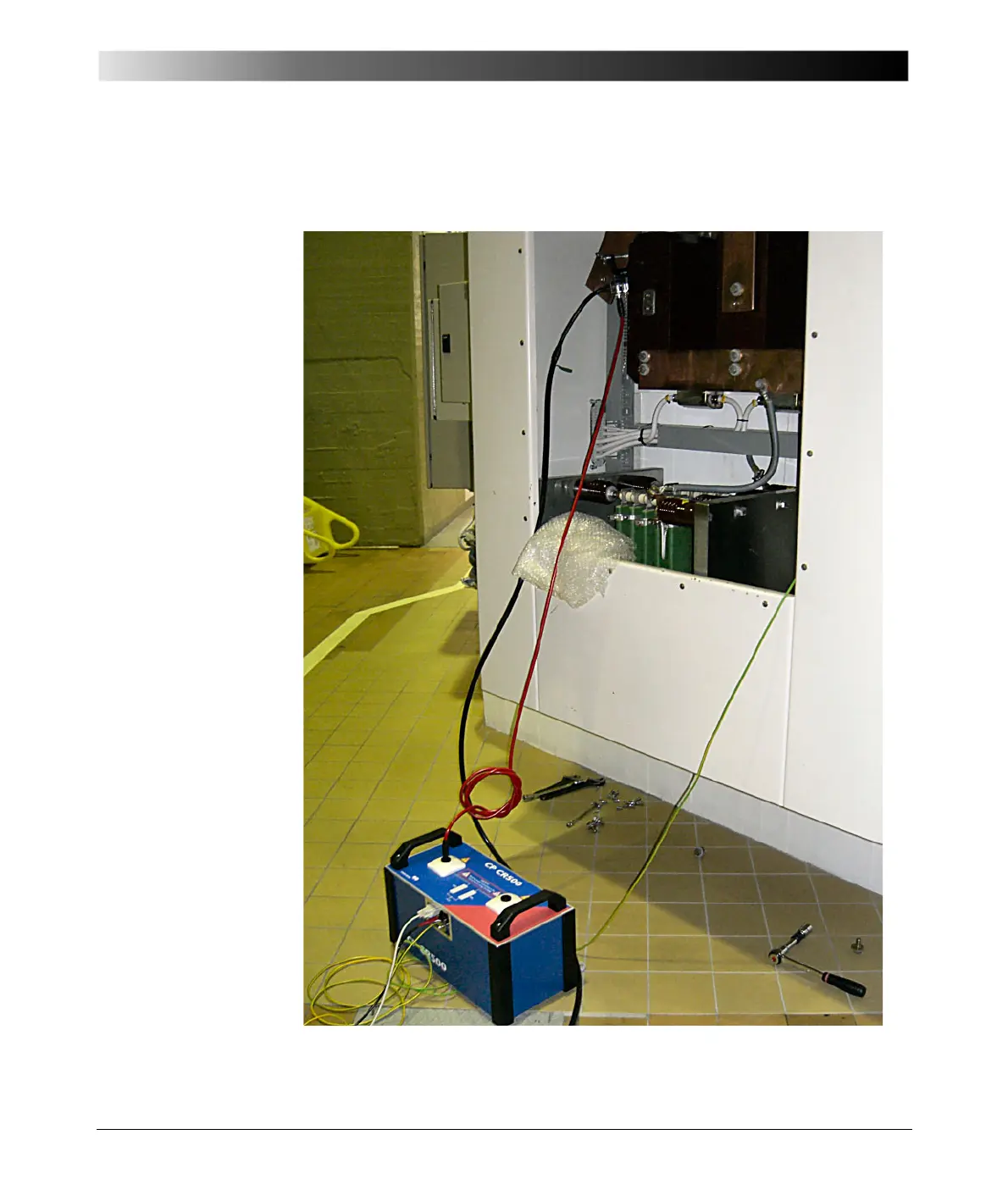

Figure 6-11:
Connecting the
CP CR500
