2. Remove the existing double deep drawer, two existing drawers, two false drawer fronts or a
combination of drawer and false fronts that would take up two adjoining drawer spaces.
3. Insert the bin liner into the drawer, with the side numbered
1 and 2 facing the front.
4. Insert the right/left bin divider into the bin liner.
5. Insert the front/rear bin divider into the bin liner.
6. Connect the drawer cable and insert the drawer into the carrier.
Matrix Drawers Labels
Numerical bin labels are provided with matrix drawers to make bin identification and restock
easier for the customer.

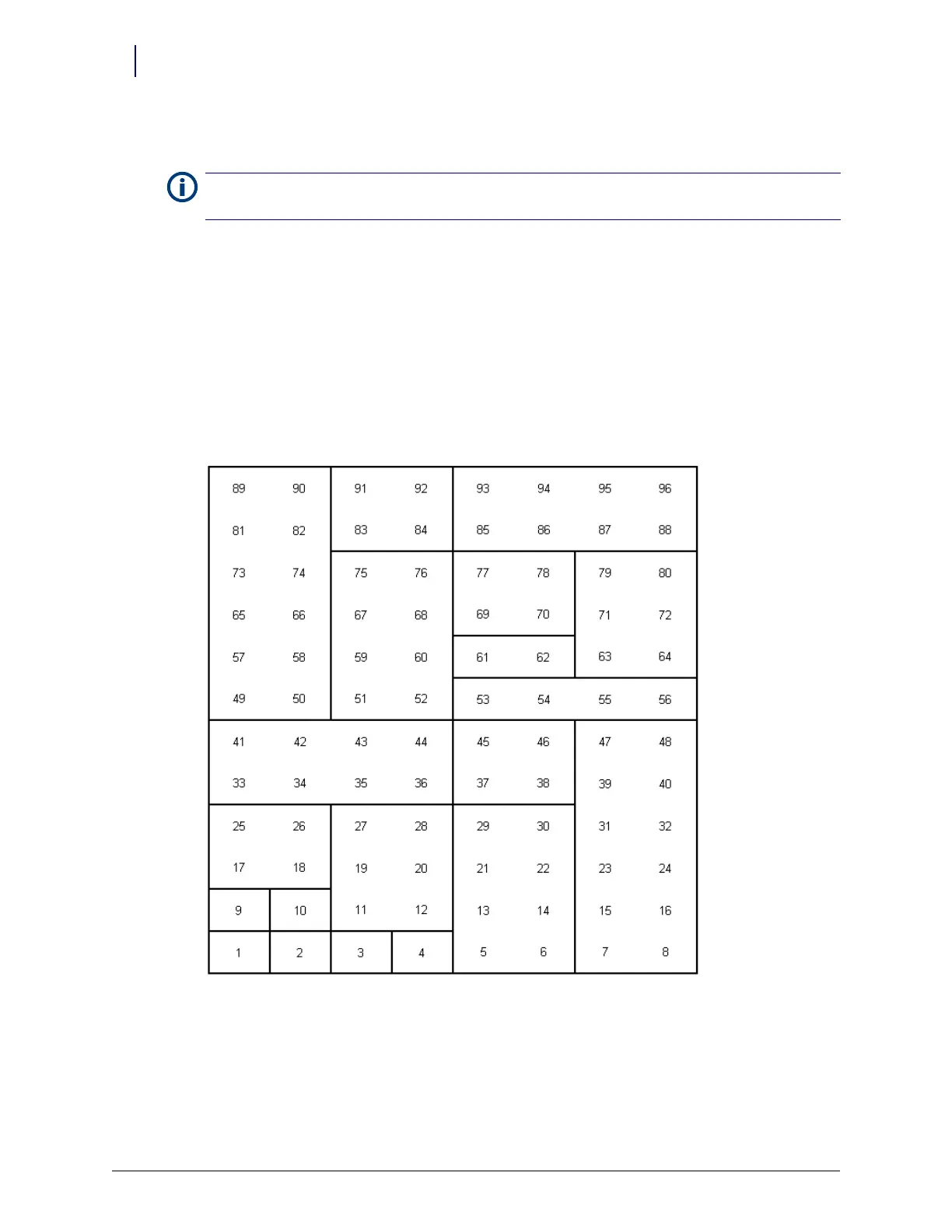

Figure 3-3. Matrix drawer labelling system
The bottom of the bin liner on any matrix drawer is numbered according to its type (i.e. 1-96, 1-
24, 1-4). These numbers are used to identify bin locations for the drawer. The drawer will be
numbered by using the lowest number in a specific bin.
Note:
If two single deep drawers are removed, the lower set of slide mount brackets must be removed from
inside the carrier before continuing.
