LVS-7500 External System Operations Manual
LVS-7500 External System Operations Manual Page 72 of 129
Below is a graphical representation of the Alarm Matrix Pass/Fail view settings:
Repeat
1
Repeat
2
Repeat
3
Repeat
4
Repeat
5
Repeat
6
Repeat
7
Overall Inspection
Results for Repeat
Number
PASS FAIL PASS PASS PASS FAIL PASS
PASS Output On Off On On On Off On
FAIL Output Off On Off Off Off On Off
Within the Alarm Matrix Pass/Fail view, additional functionality is available when the following settings are
enabled in the LVS7500.ini file: UsePassFailMethod=1 5and UseAcknowledgementIO=1. Example:
[Alarm matrix]
UseAcknowledgementIO=1
UsePassFailMethod=1

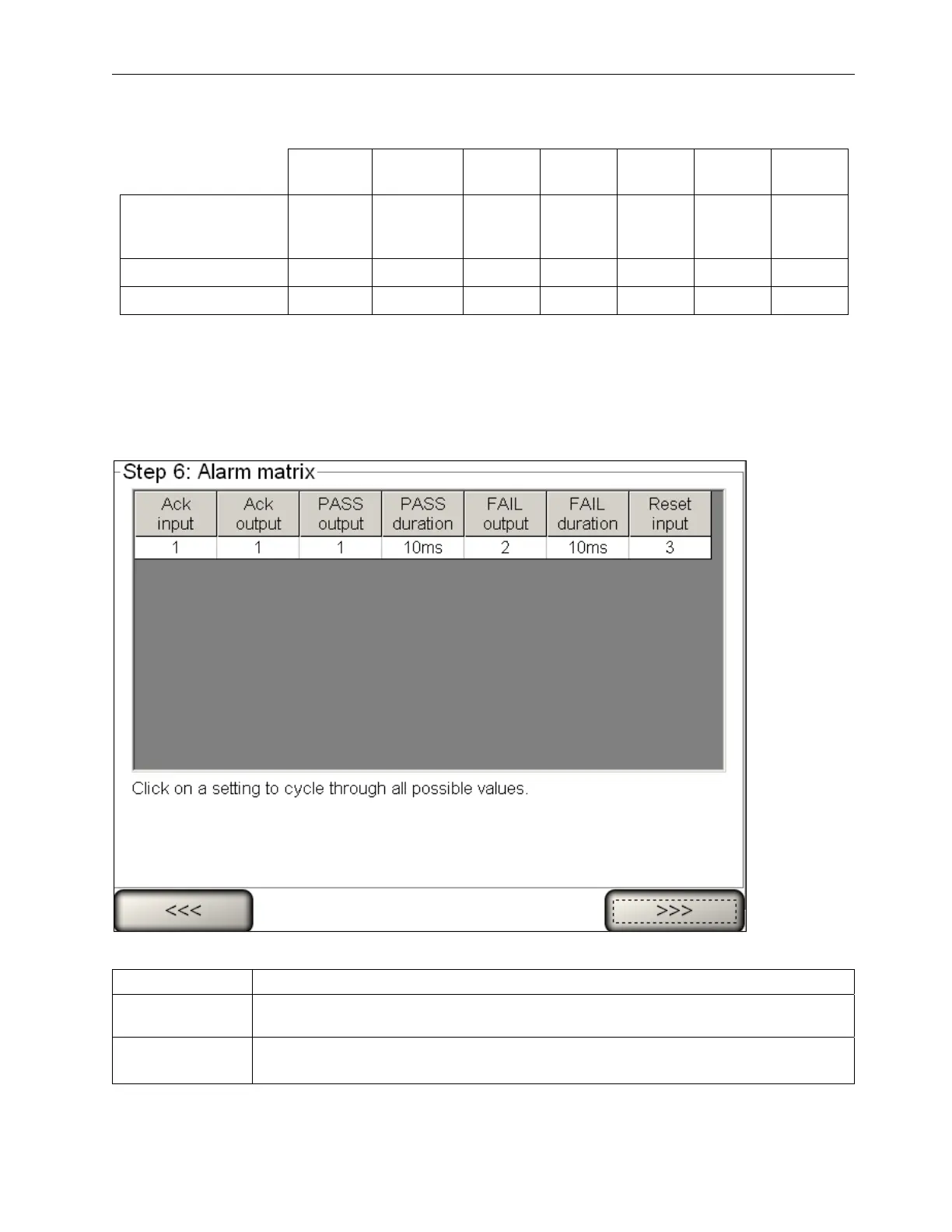

When the above settings are enabled, the Alarm Matrix appears as shown below.
Each column is described in the following table:
Setting Description
Ack Input
This input is a request for the LVS-7500 External System to indicate the Ack Output
channel and current run status.
Ack Output This output is activated as long as the following conditions are met:
• The Ack Input is active
