Connection Procedure
14
A

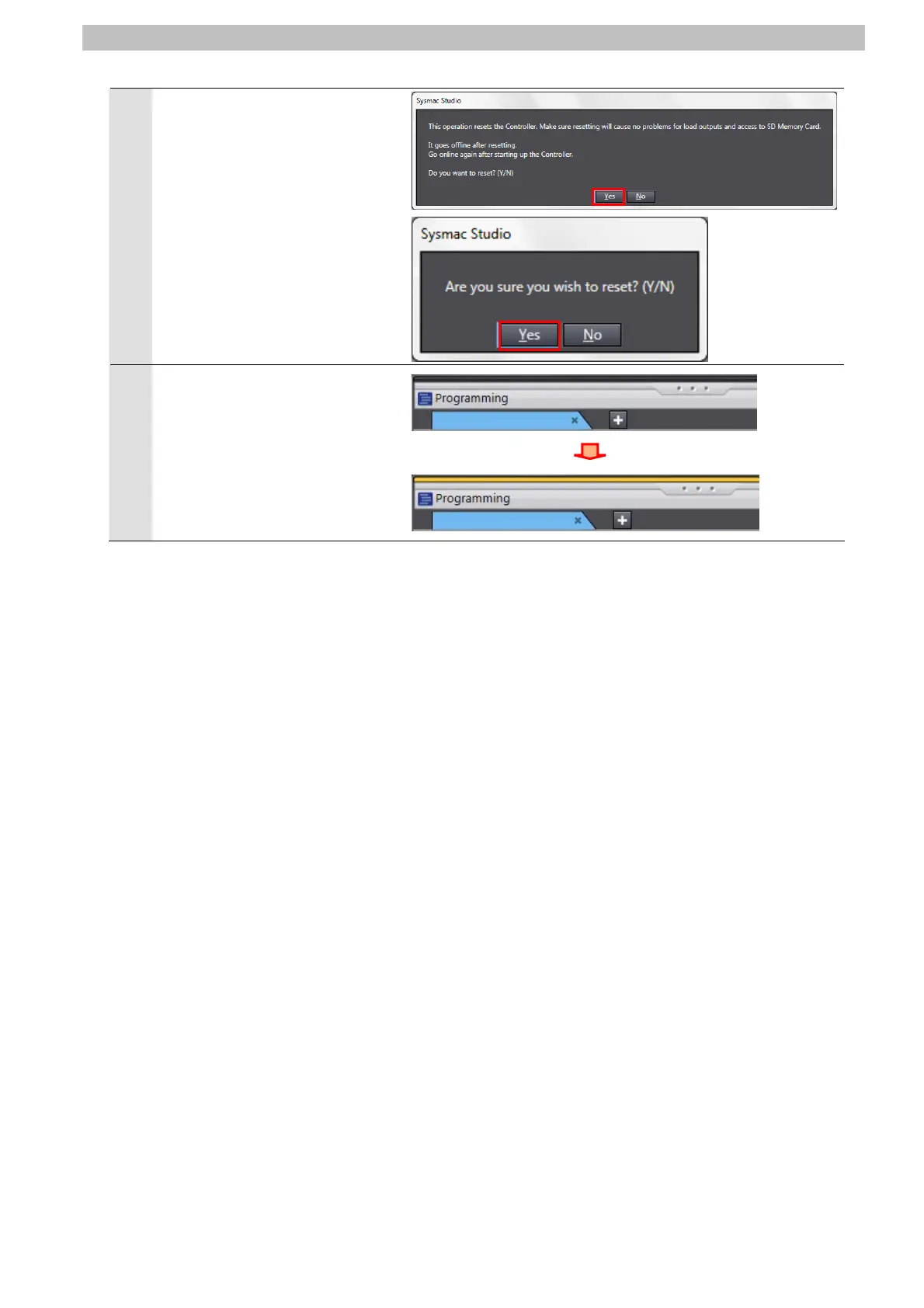

confirmation dialog box is
displayed several times. Click
the
Ye
s
Button.
15
The Controller is reset, and
Sysmac S
t
udio goes of
fline.
The yellow bar on the top of the
Edit Pane disappears.
Use steps 6 to 8 to go online.
28
30
32
Table of Contents
Default Chapter
3
Table of Contents
3
1 Related Manuals
4
2 Terms and Definitions
4
3 Remarks
5
4 Overview
7
5 Applicable Products and Support Software
8
Applicable Products
8
Device Configuration
9
6 Devicenet Settings
11
Devicenet Communications Settings
11
Allocation for Remote I/O Communications
12
7 Connection Procedure
14
Overview of Setting up Remote I/O Communications
14
Work Flow
15
Setting up the Inverter
16
Parameter Setting
18
Setting up the Controller
23
Setting up the Network
32
Connection Status Check
38
8 Initialization Method
43
Controller
43
Inverter
44
9 Appendix 1 Details on Remote I/O Communication Settings
45
Global Variable Table
45
10 Appendix 2 Setting Procedure Without the Configuration Files
47
Overview of Setting Procedure Without the Configuration Files
47
Work Flow of the "Procedure for Setting Parameters from the Beginning
48
Setting up the Controller Without the Configuration Files
50
Setting up the Network by CX-Integrator
59
11 Revision History
67
5
Based on 1 rating
Ask a question
