10．Appendix 2 Setting Procedure without the Configuration Files
4

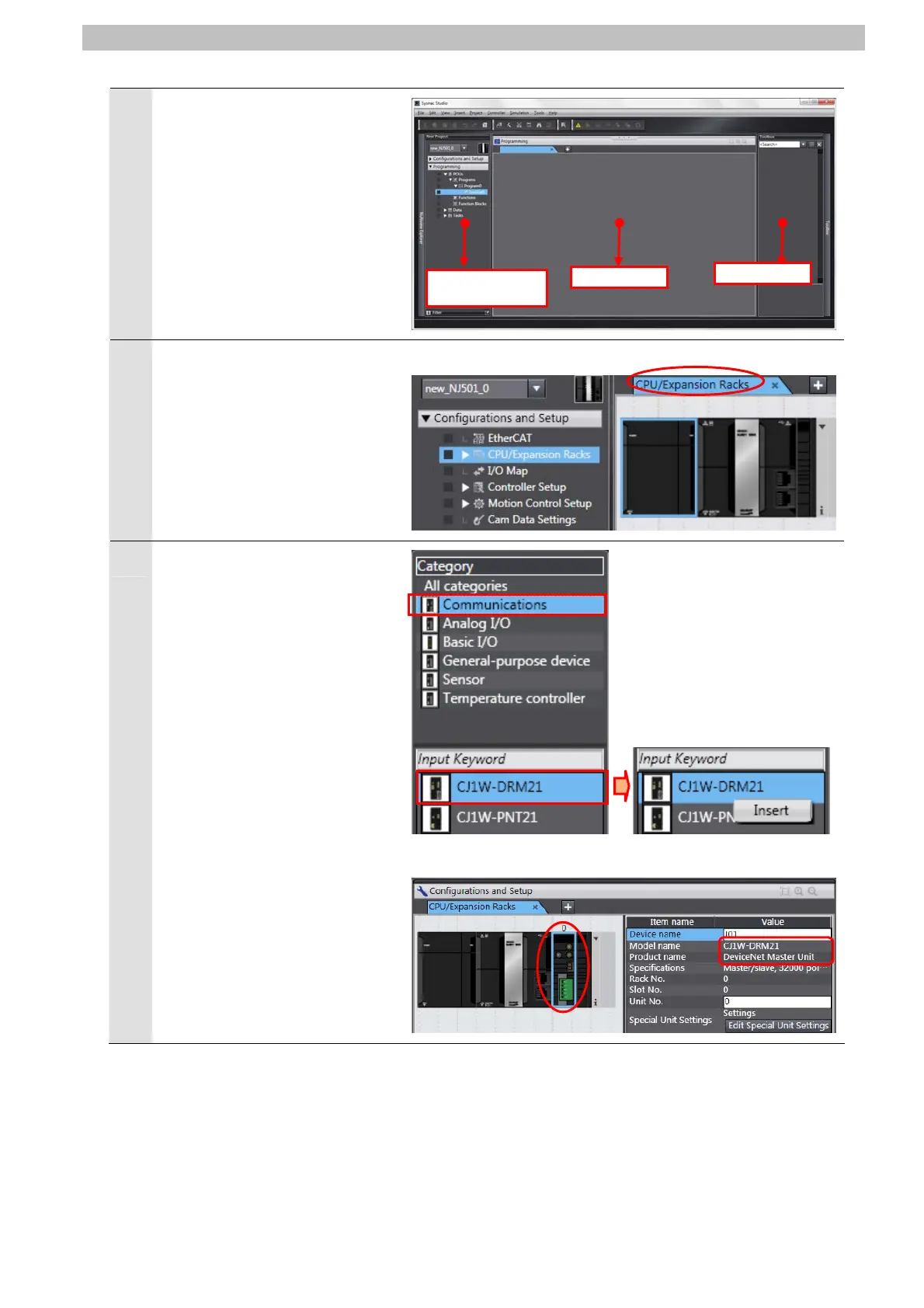

The New Project is displayed.
The left pane is called Multiview
Explorer, the right pane is called
Toolbox and the middle pane is
called Edit Pane.
5
Double-click CPU/Expansion
Racks under Configurations
and Setup in the Multiview
Explorer.
The CPU/Expansion Racks Tab
is displayed on the Edit Pane.
6
Select Communications under
Category in the Toolbox.
Select CJ1W-DRM21.
Right-click the CJ1W-DRM21 to
display a menu.
Select Insert from the menu.
CJ1W-DRM21 is displayed on
the CPU/Expansion Racks as
shown in the figure on the right.
Multiview
Explorer
48
To Next Page
