Omron CJ2M-CPU Series Connection Guide

7
．
Serial Communications Connection Procedure
16
8

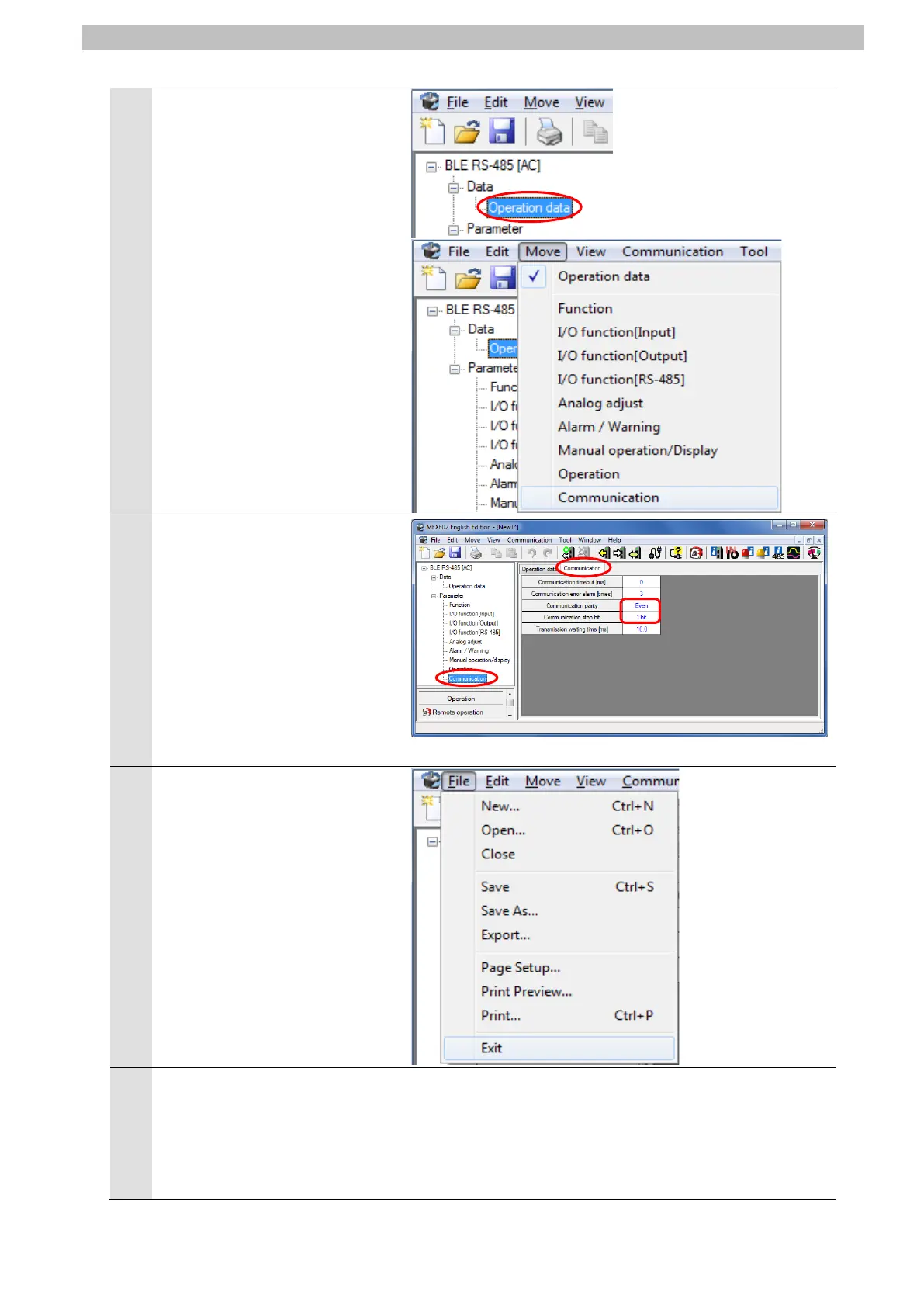

Operation data is displayed.
Select Communication from
the Move Menu.
9
The edit window for
Communication is displayed.
Check that the following
parameters are set as shown
below.
Communication parity: Even
Communication stop bit: 1 bit
*Use the default settings for
other parameters.
10
Select Exit from the File Menu
to close MEXE02.
11
Turn OFF Driver.
*After PLC is connected to
Driver according to the
procedure given on the
following pages, turn ON the
power supply again.

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
