Omron CJ2M-CPU Series Connection Guide

7
．
Serial Communications Connection Procedure
19
7.3.2. Opening the Project File and Connecting Online with PLC
Start CX-Programmer, open the project file, and connect online with PLC.
Install CX-Programmer and the USB driver on Personal computer beforehand.

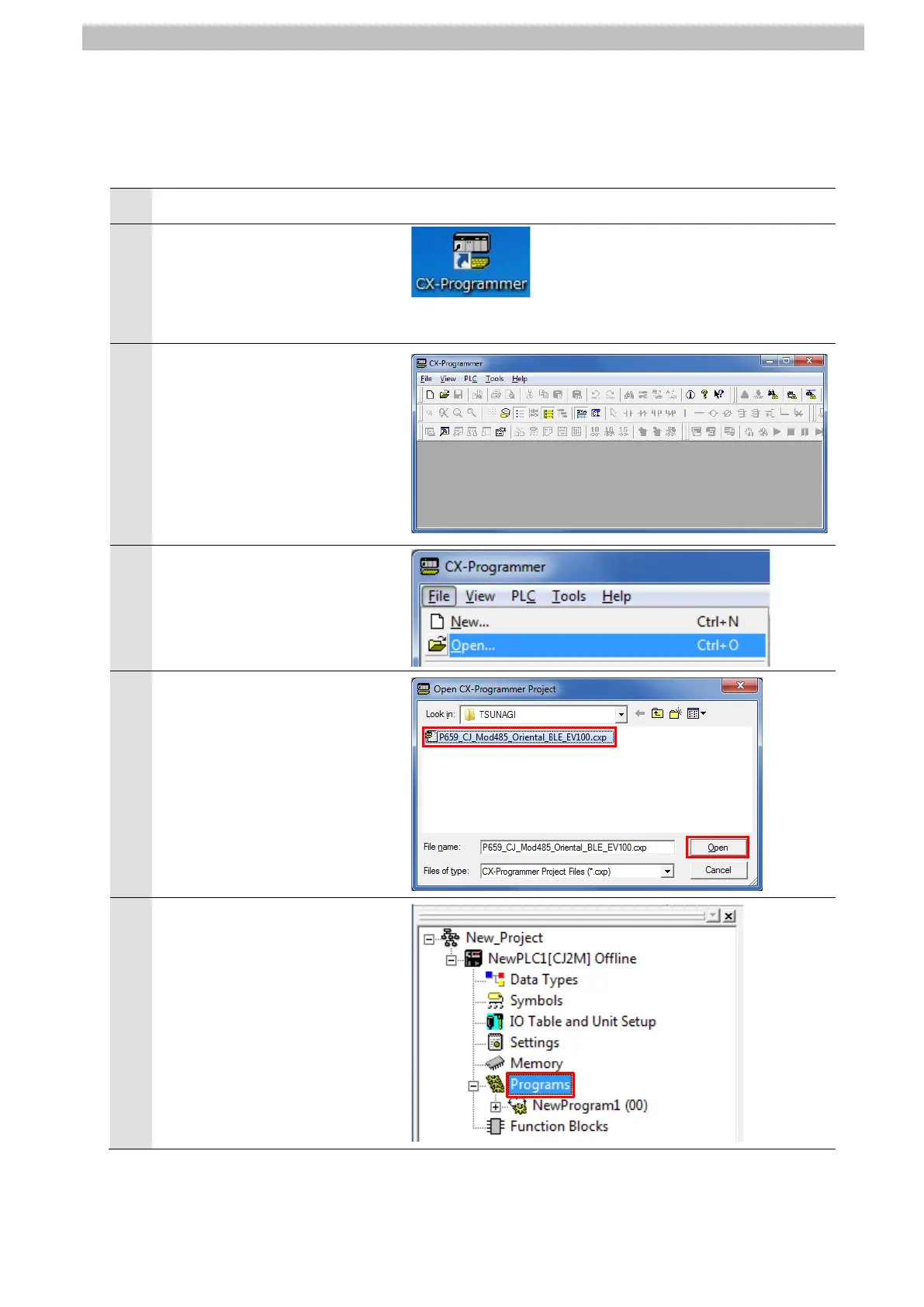

1
Turn ON PLC and Driver.
2
Start CX-Programmer.
*If the User Account Control
Dialog Box is displayed at start,
make a selection to start
CX-Programmer.
3
CX-Programmer starts.
4
Select Open from the File Menu.
5
The Open CX-Programmer
Project Dialog Box is displayed.
Select P659_CJ_Mod485_
Oriental_BLE_EV100.cxp and
click Open.
*Obtain the project file from
OMRON.
6
After opening the project file,
select Programs in the project
workspace.

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
