Omron CJ2M-CPU Series Connection Guide

7
．
Serial Communications Connection Procedure
21
10

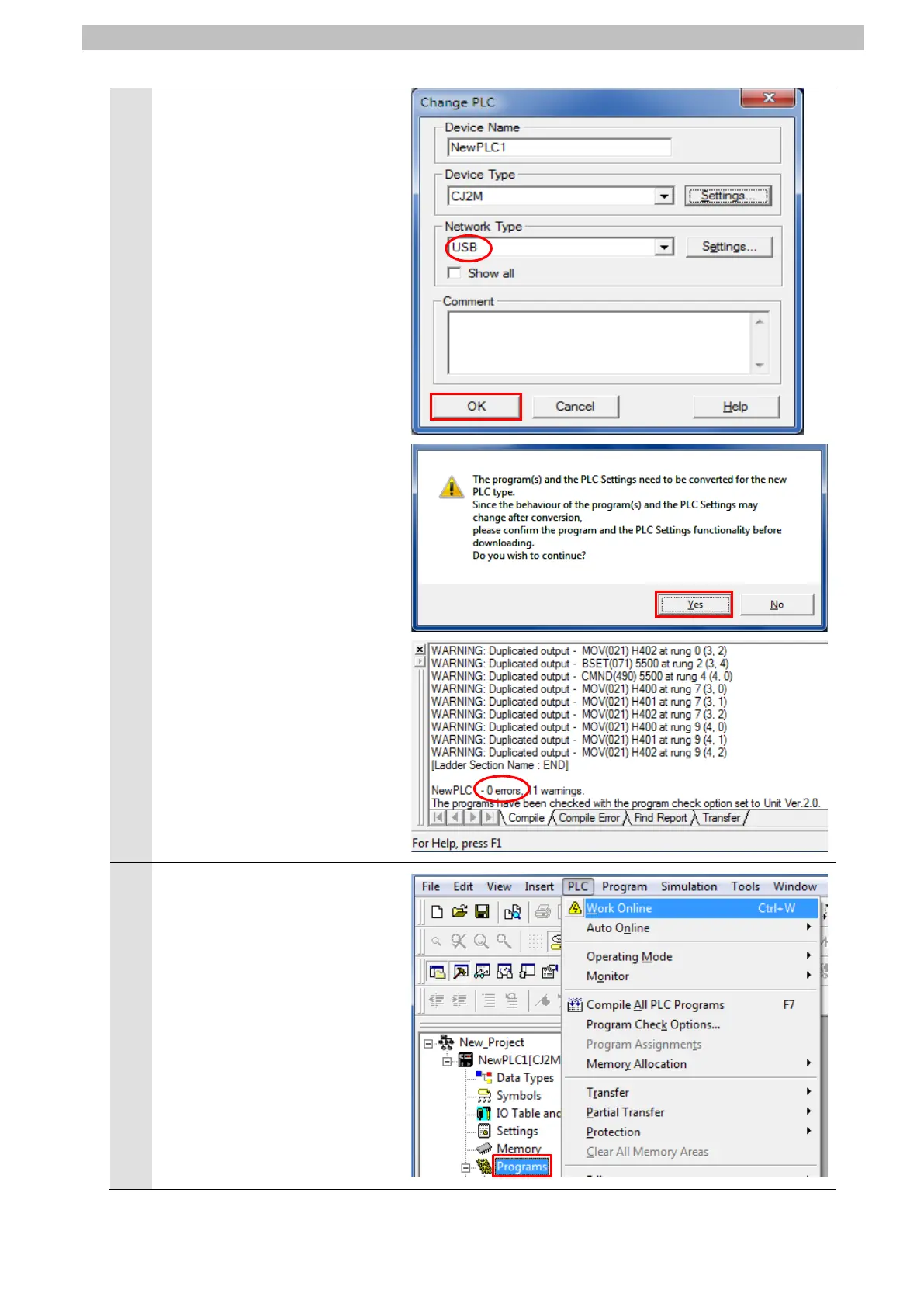

Check that USB is set as the
network type in the Change PLC
Dialog Box. Click OK.
*If the USB is not set as the
network type, select USB from
the pull-down list.
*If you changed Device Type in
step 8 or CPU Type in step 9,
the dialog box on the right is
displayed. Confirm that there is
no problem and click Yes.
Make sure that the program
was normally converted. ("0
errors" must be shown.)
(Although duplicated output
warnings were detected as
shown on the right, they are not
problems.)
11
Select Programs in the project
workspace.
Select Work Online from the
PLC Menu.

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
