Omron CJ2M-CPU Series Connection Guide

7
．
Serial Communications Connection Procedure
26
4

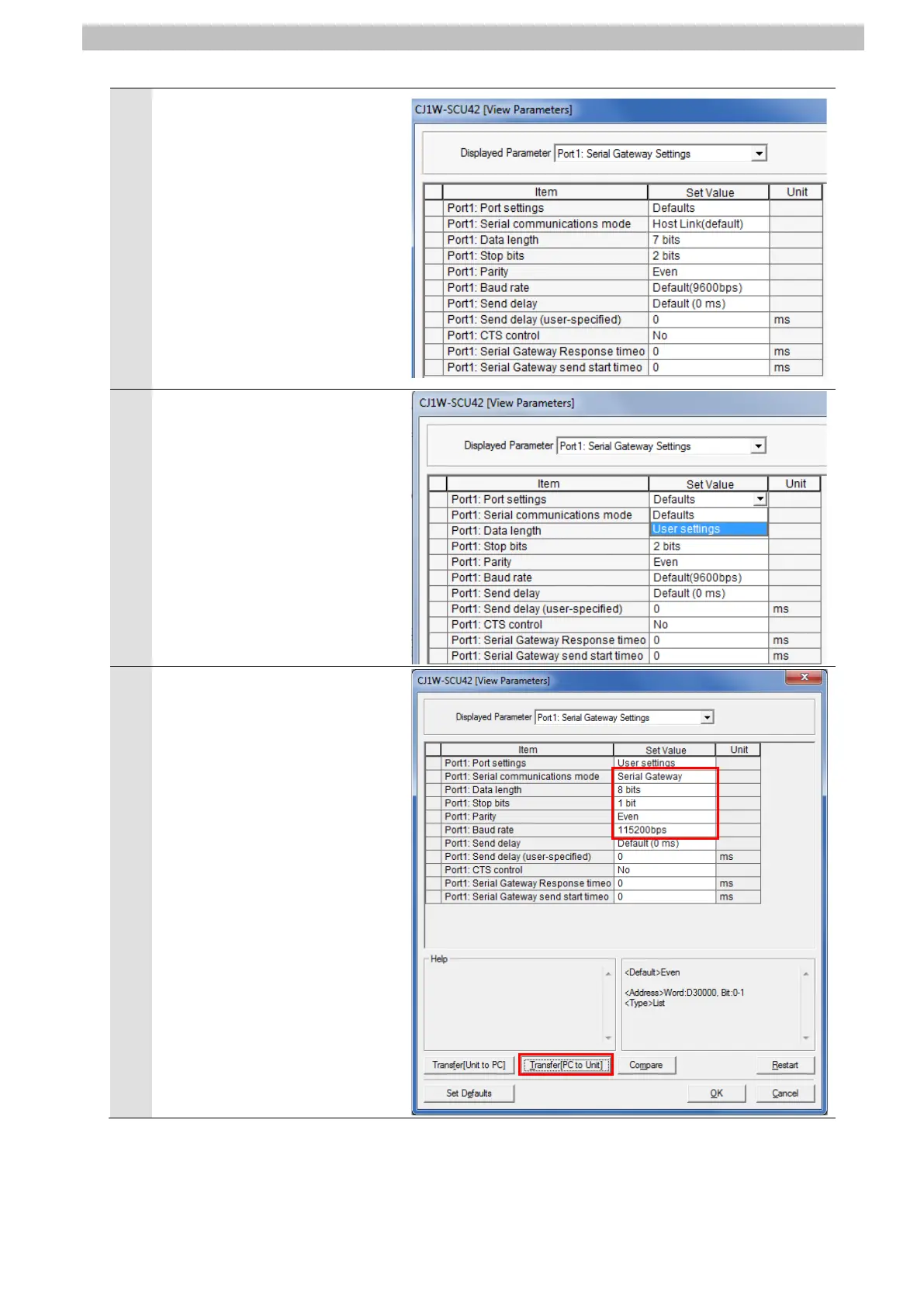

The setting items of Port1: Serial
Gateway Settings are listed as
shown in the figure on the right.
(The figure shows the default
values.)
5
Select User settings for Port1:
Port Settings from the pull-down
list of Set Value.
6
Set the following parameters in
the same way as step 5.
・Serial communications mode
: Serial Gateway
・Data length: 8 bits
・Stop bits: 1 bit
・Parity: Even
・Baud rate: 115200bps
*Use the default settings for
other parameters.
Click Transfer[PC to Unit].

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
