Omron CJ2M-CPU Series Connection Guide

7
．
Serial Communications Connection Procedure
27
7

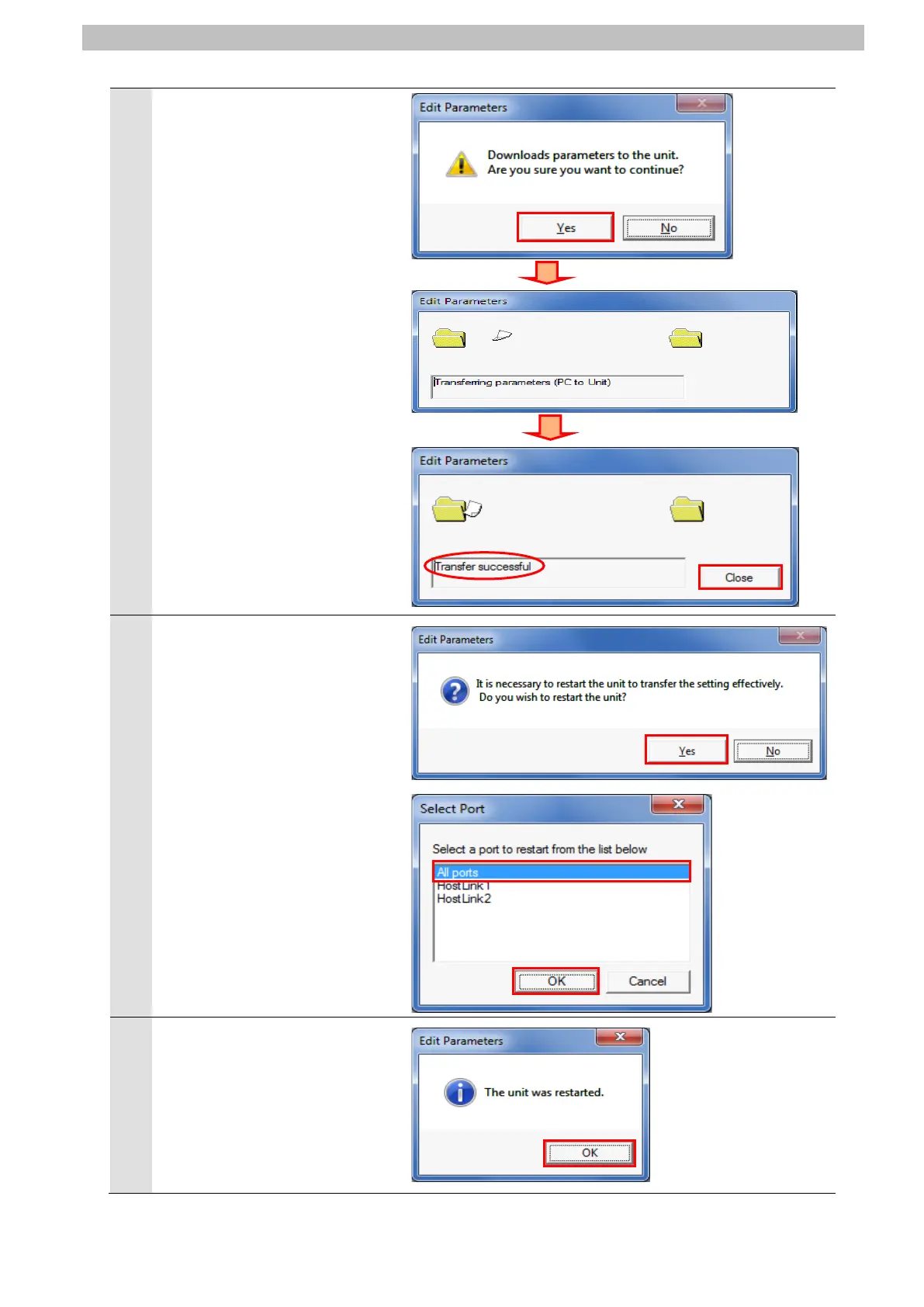

The confirmation dialog box on
the right is displayed.
Confirm that there is no
problem, and click Yes.
Check that the transfer is
completed as shown on the
right. Click Close.
8
The Dialog box on the right is
displayed. Check the contents
and click Yes.
The Select Port Dialog Box is
displayed. Select All ports and
click OK.
9
The Dialog box on the right is
displayed. Check the contents
and click OK.

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
