Product name Manufacturer Model Contact information
RJ45 Connectors Panduit Corporation
MPS588
*1
Panduit Corporation US
Headquarters
Osaka Branch Of
fice
*1. We recommend that you use combinations of the above cables and connectors.
The table below lists 2-pair cables with 22 AWG conductors and connectors.
Product name Manufacturer Model Contact information
Cables Kuramo Electric Co., Ltd.
KETH-PSB-OMR
*1
Kuramo Electric Co., Ltd.
TEL: 03-5644-7601
TEL: 06-6231-8151
SWCC Showa Cable
Systems Co., Ltd.
FAE-5002
*1
SWCC Showa Cable
Systems Co., Ltd.
TEL: 03-3597-7117
JMACS Japan Co., Ltd.
PNET/B
*1
JMACS Japan Co., Ltd.
TEL: 03-3239-5204
TEL: 06-4796-0080
RJ45 Assembly Connec-
tors
OMRON Corporation
XS6G-T421-1
*1
OMRON Customer Serv-
ice Center
TEL: 0120-919-066
*1. We recommend that you use combinations of the above cables and connectors.


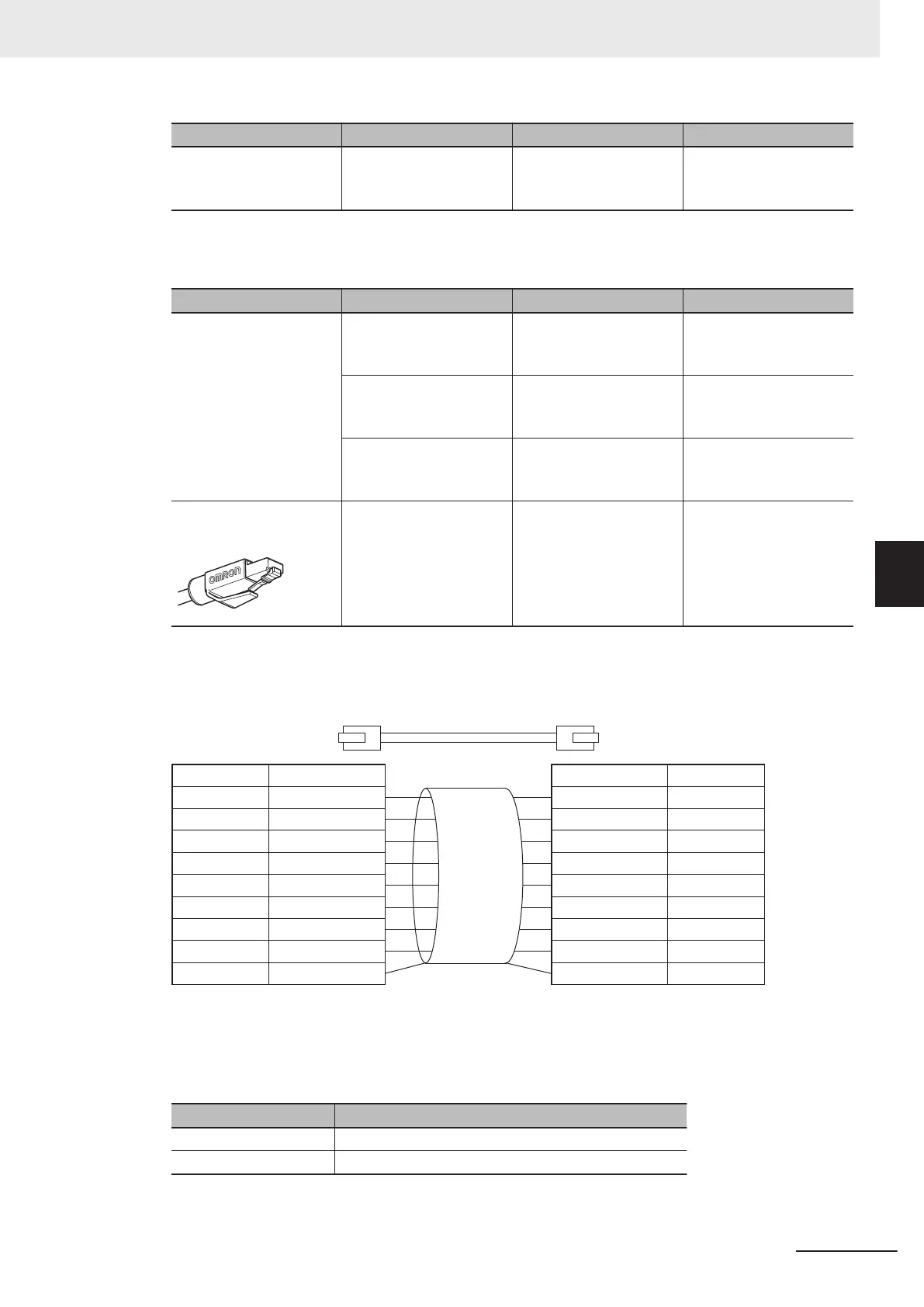

Attaching the Connectors to the Cable and Pin Assignments
Use straight wiring to attach the connectors to the communications cable, as shown below.
Pin No.
1
2
3
4
5
6
7
8
Hood
Pin No.
1
2
3
4
5
6
7
8
Hood
Wire color
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Shield
Wire color
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Shield
Note 1. Connect the cable shield to the connector hood at both ends of the cable.
Note 2. There are two connection methods for Ethernet: T568A and T568B. The T568A connection method
is shown above, but the T568B connection method can also be used.
The connector specifications are as follows.
Item Specification
Electrical characteristics Conforms to IEEE 802.3 standards.
Connector structure RJ45 8-pin modular connector (Conforms to ISO 8877)
The pin assignments are as follows.
5 Wiring
5-11
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-2 CPU Unit Wiring
5
5-2-1 Laying the EtherCAT Network
