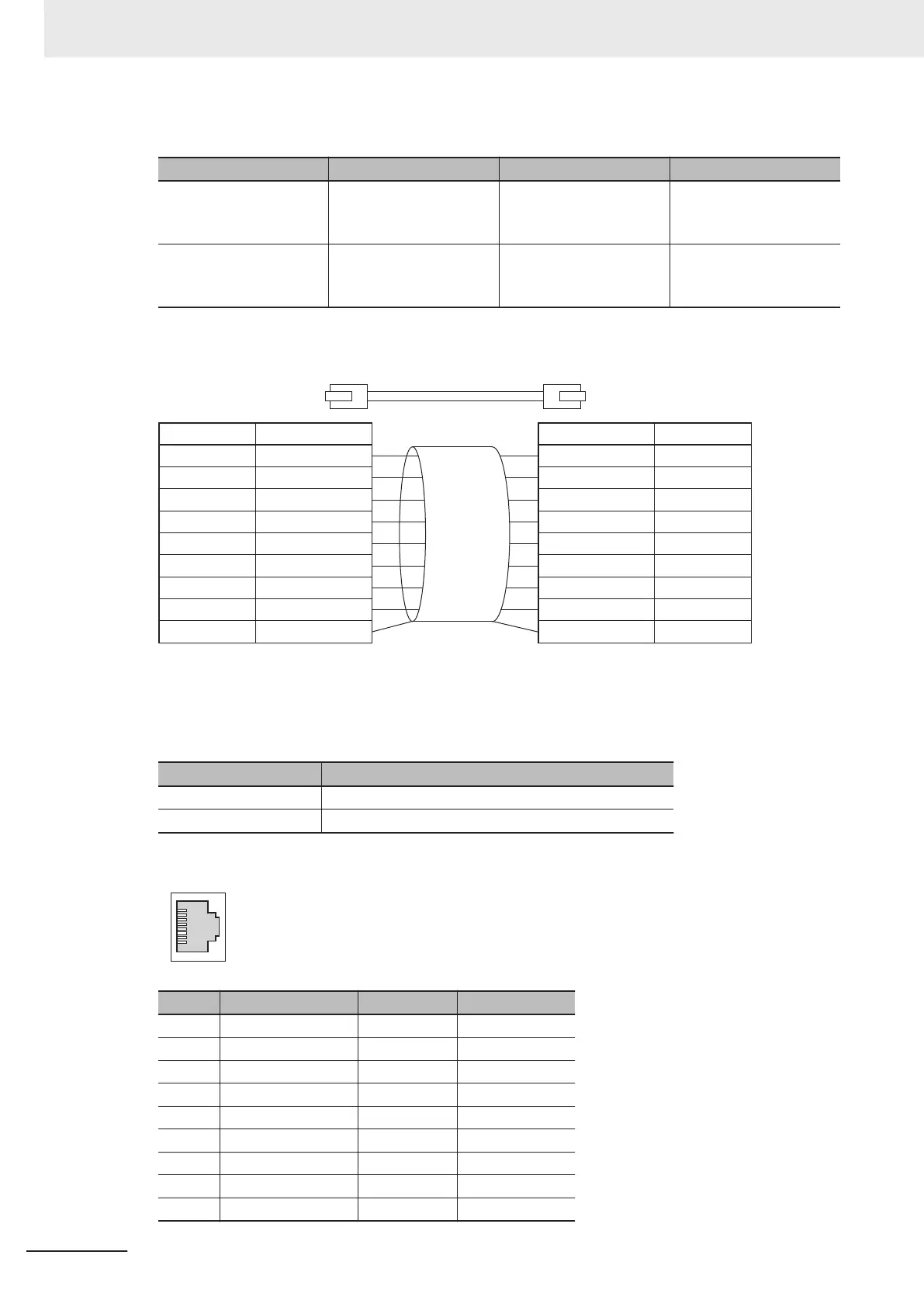

The table below lists 4-pair cables with 0.5-mm conductors and connectors for 100BASE-TX.
Product name Manufacturer Model Contact information
Cables Fujikura Ltd. F-LINK-E 0.5 mm × 4
Pairs
Planning Department,
Kanetsu Co., Ltd.
TEL: 075-662-0996
RJ45 Connectors Panduit Corporation MPS588 Panduit Corporation US
Headquarters
Osaka Branch Of
fice

Attaching the Connectors to the Cable and Pin Assignments
Use straight wiring to attach the connectors to the communications cable, as shown below.
Pin No.
1
2
3
4
5
6
7
8
Hood
Pin No.
1
2
3
4
5
6
7
8
Hood
Wire color
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Shield
Wire color
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Shield
Note 1. Connect the cable shield to the connector hood at both ends of the cable.
Note 2. There are two connection methods for Ethernet: T568A and T568B. The T568A connection method
is shown above, but the T568B connection method can also be used.
The connector specifications are as follows.
Item Specification
Electrical characteristics Conforms to IEEE 802.3 standards.
Connector structure RJ45 8-pin modular connector (Conforms to ISO 8877)
The pin assignments are as follows.
8
1
Pin No. Signal name Abbreviation Signal direction
1 Transmission data + TD+ Output
2 Transmission data − TD− Output
3 Reception data + RD+ Input
4 Not used. --- ---
5 Not used. --- ---
6 Reception data − RD− Input
7 Not used. --- ---
8 Not used. --- ---
Hood Frame ground FG ---
5 Wiring
5-14
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
