A-3 Wiring for Serial Communications
App
A-3-4 Reducing Electrical Noise for External
Wiring
Observe the following precautions when wiring communications cables.
• When multi-conductor signal cable is being used, avoid combining I/O wires and other control wires
in the same cable.
• If wiring racks are parallel, allow at least 300 mm between them.
• If the I/O wiring and power cables must be placed in the same duct, they must be shielded from each
other using grounded steel sheet metal.

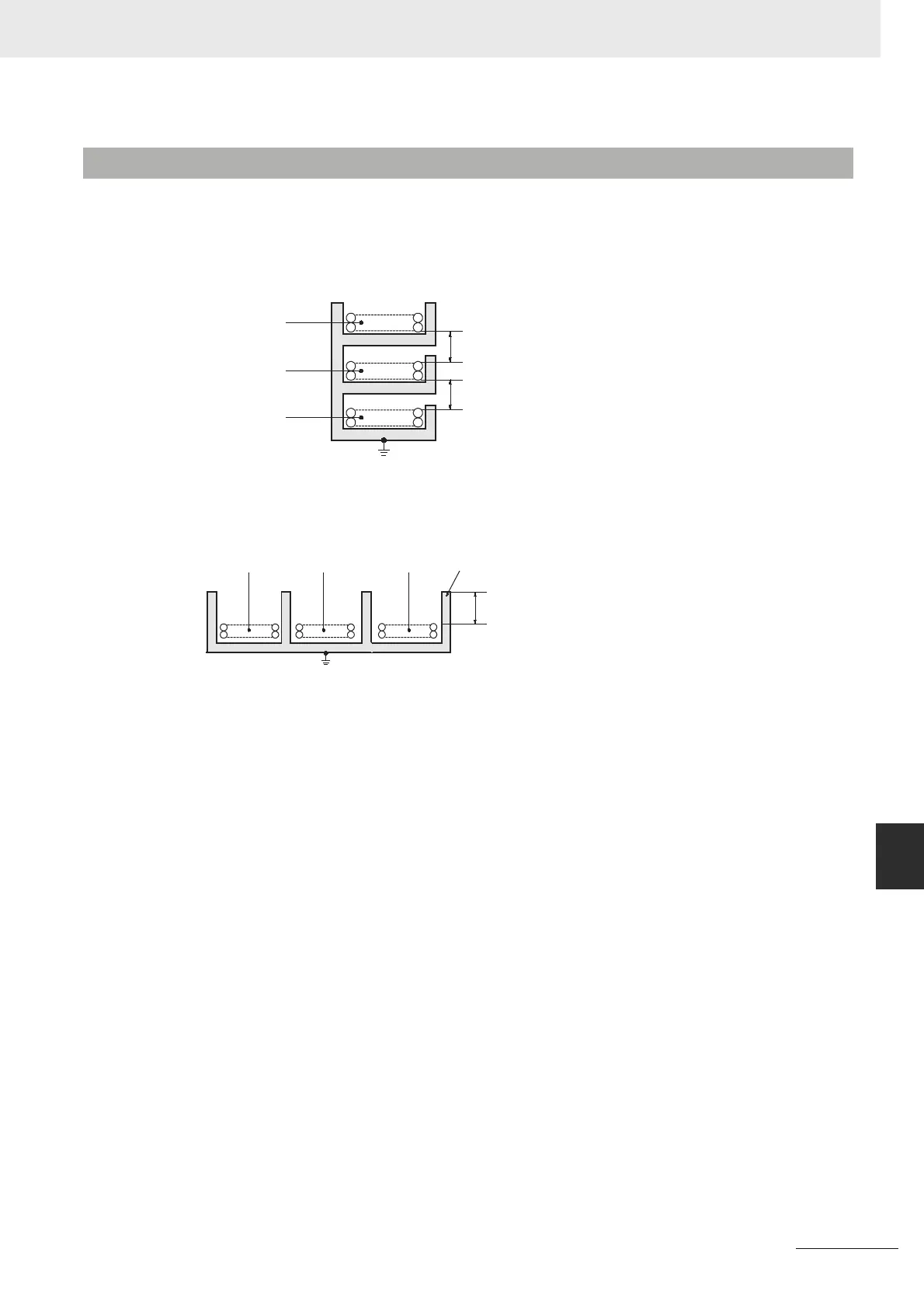

A-3-4 Reducing Electrical Noise for External Wiring
Communications
cables
Low-current cables
PLC power supply
and general control
circuit wiring
Power lines
300 mm min.
Ground to 100 Ω or less.
Control cables
Power cables
300 mm min.
Communications
cables
PLC power supply
and general control
circuit wiring
Power lines
200 mm min.
Ground to 100 Ω or less.
Steel sheet metal
