1 Overview and Specifications
CP1E CPU Unit Hardware User’s Manual(W479)
1-1 CP1E Overview
1
1-1-2 Features
Precautions for Correct UsePrecautions for Correct Use
For CP1E CPU Units, the following I/O memory area will be unstable after a power interruption.
• DM Area (D) (excluding words backed up to the EEPROM using the DM function)
• Holding Area (H)
• Counter Present Values and Completion Flags (C)
• Auxiliary Area related to clock functions(A)
Mount the CP1W-BAT01 Battery (sold separately) to an N/NA-type CPU Unit if data in the above
areas need to be retained after a power interruption. A Battery cannot be mounted to an E-type
CPU Unit.
 System Configuration
The CX-Programmer is used as the Programming Device for the CP1E.
The CX-Programmer is connected using a commercially available USB cable between the computer’s
USB port and the built-in peripheral USB port of the CP1E.

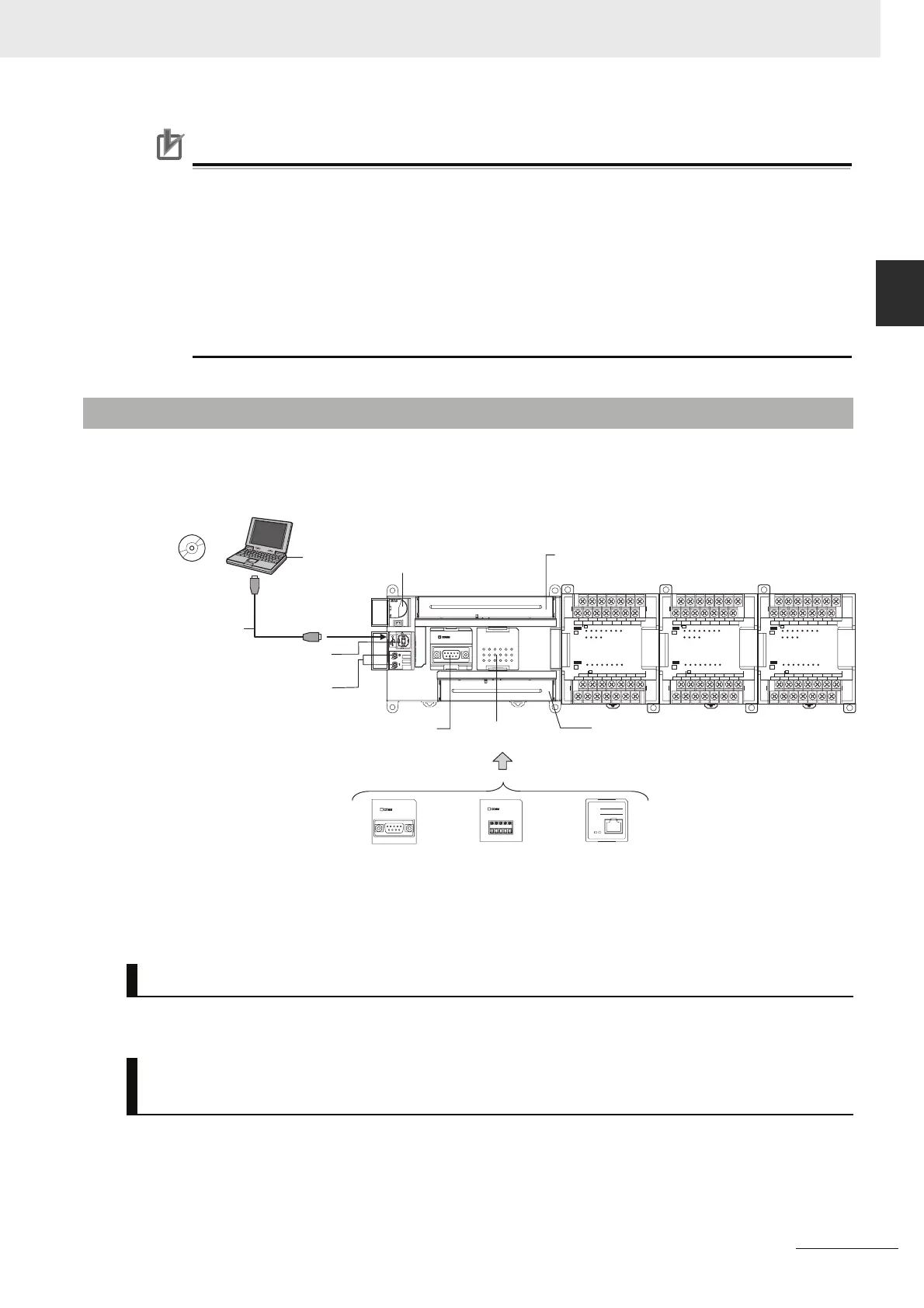

1-1-2 Features
Programming, Setting, and Monitoring with the CX-Programmer
Easy Connection with Computers Using Commercially Available
USB Cables
Commercially
available USB
cable
One RS-232C port One RS-422A/485 port
CX-Programmer
USB port
CP1E CPU Unit (An N-type CPU Unit with 40 I/O Points is shown here.)
Power supply and input terminals
Expansion Units (Can be mounted to E30/40, N30/40/60 or NA20 CPU Units)
Analog adjuster
Built-in RS-232C port
Option Board
Output terminal block
IN
CH
CH
OUT
00 01 02 03
08 09 10 11
04 05 06 07
00 01 02 03 04 05 06 07
CH
CH
EXP
COM 01 0 3 0 5 0 7 09 11
NC 00 02 04 06 08 10
NC 00 01 02 04 05 07
NC COM COM COM 03 COM 06
IN
CH
CH
OUT
00 01 02 03
08 09 10 11
04 05 06 07
00 01 02 03 04 05 06 07
CH
CH
EXP
COM 01 0 3 0 5 0 7 09 11
NC 00 02 04 06 08 10
NC 00 01 02 04 05 07
NC COM COM COM 03 COM 06
IN
CH
CH
OUT
00 01 02 03
08 09 10 11
04 05 06 07
00 01 02 03 04 05 06 07
CH
CH
EXP
COM 01 0 3 0 5 0 7 09 11
NC 00 02 04 06 08 10
NC 00 01 02 04 05 07
NC COM COM COM 03 COM 06
Peripheral USB port
CP1W-BAT01 Battery (sold separately)
(Can be mounted only to N/NA-type CPU Units.)
One slot for an
Option Board
RS-232C Option
Board CP1W-CIF01
RS-422A/485 Option
Board CP1W-CIF11/12
One Ethernet port
Ethernet Option Board
CP1W-CIF41 version 2.0
(Note) The following Option Boards cannot be used.
·CP1W-DAM01 LCD Option Board
·CP1W-CIF41 Ethernet Option Board version 1.0
IP ADDRESS:
SUBNET MASK:
COMMERR
10BASE-T
100BASE-TX
