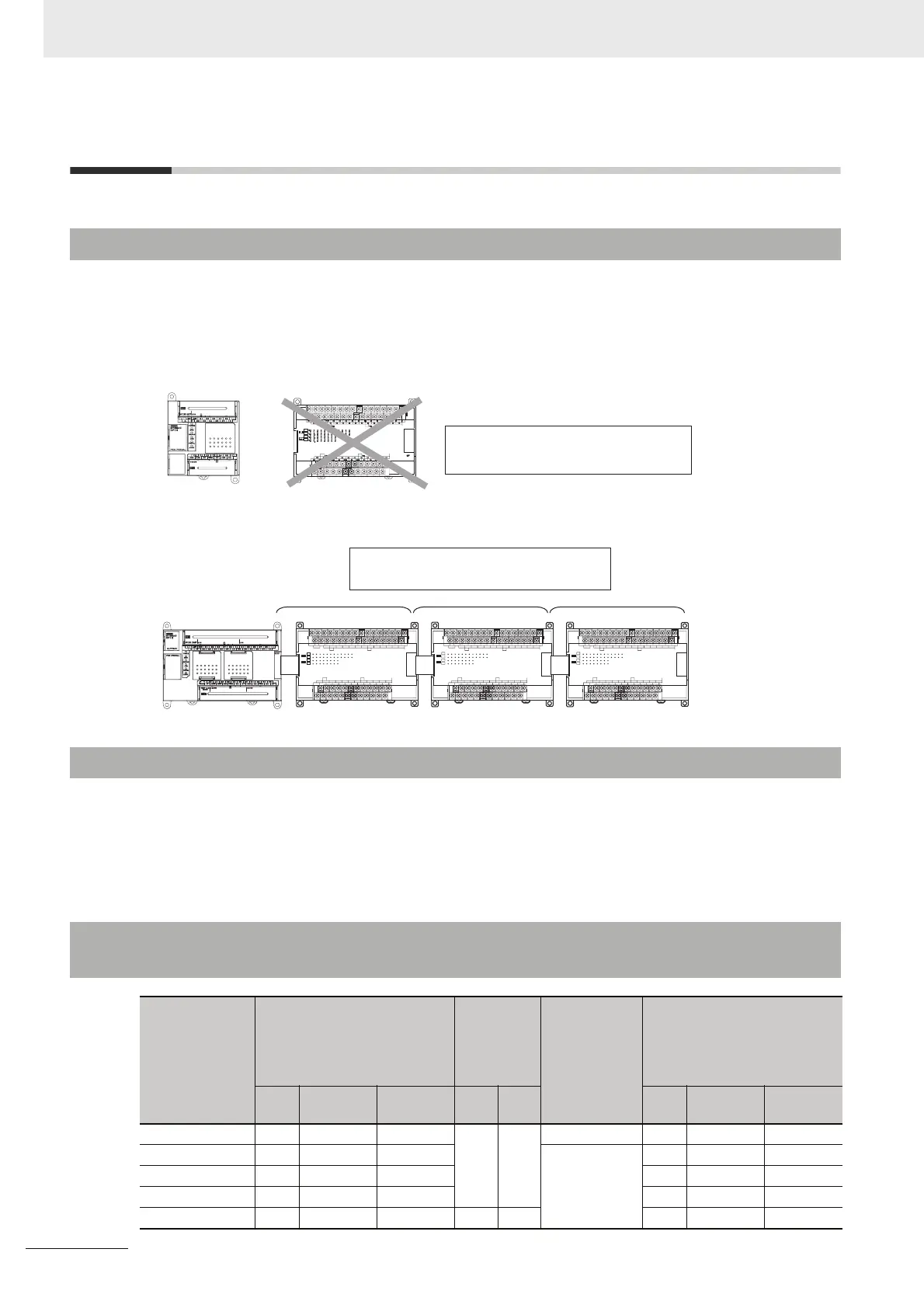

2-3 Expansion I/O Unit or Expansion Unit
This section describes the connection of Expansion I/O Units or Expansion Units to a CP1E CPU Unit.
• Expansion I/O Units and Expansion Units cannot be connected to E10/14/20 or N14/20 CPU Units.
• A total of up to three Expansion I/O Units and Expansion Units can be connected to an E30/40,
N30/40/60 or NA20 CPU Unit.
 CP1E E10/14/20 or N14/20 CPU Unit
 CP1E E30/40, N30/40/60 or NA20 CPU Unit
Connection cables for the Expansion I/O Units and Expansion Units are used to connect the Units.
The length can be extended by using a CP1W-CN811 I/O Connecting Cable (length: 800 mm).
Leave approximately 10mm of space between the CPU Unit and the Exapansion I/O Units or Expan-
sion Units.
2-3-1 Expandable CPU Units
2-3-2 Connection Methods
2-3-3 Maximum Number of I/O Points for an Expansion I/O Unit or
Expansion Unit
CPU Unit
Built-in I/O on CPU Unit
Built-in
Analog
Total number
of Expansion
I/O Units and
Expansion
Units that can
be connected
Number of inputs: 24
Number of outputs: 16
Total number of I/O points when
three CP1W-40ED
 Expansion
I/O Units are connected
Total
Number
of inputs
Number
of outputs
AD DA Total
Number
of inputs
Number
of outputs
CP1E-20D- 20 12 8 None None Not possible. 20 12 8
CP1E-30D- 30 18 12 3 Units maxi-
mum
150 90 60
CP1E-40D- 40 24 16 160 96 64
CP1E-60D- 60 36 24 180 108 72
CP1E-NA20D- 20 12 8 2 1 140 84 56
CP-series Expansion Units and Expansion I/O
Units cannot be connected.
A total of up to three CP-series Expansion I/O Units
and Expansion Units can be connected.
