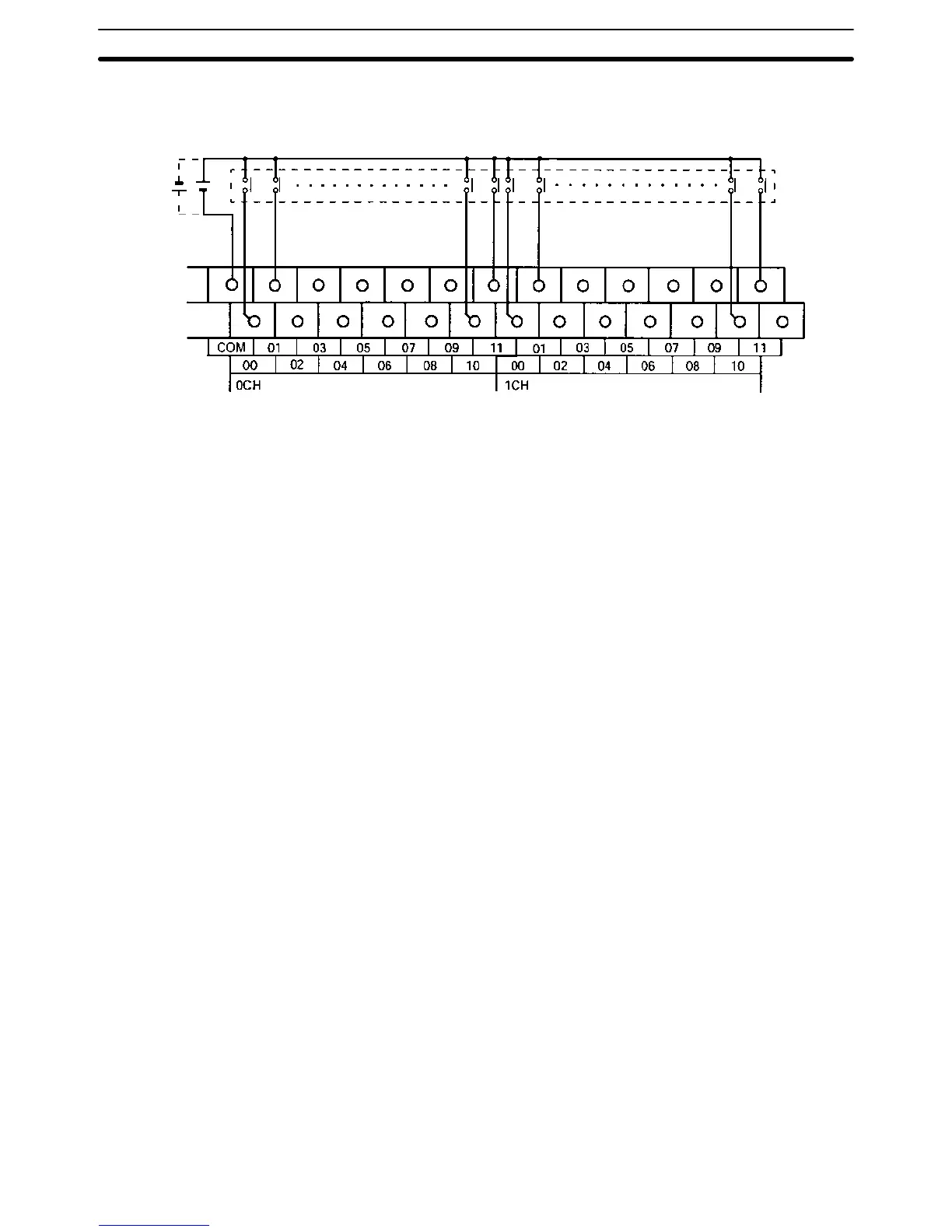

CPM2A-40CDR-j, CPM2A-40CDT-D, and CPM2A-40CDT1-D
Terminals 00 through 11 of “0CH” correspond to bits IR 00000 through IR 00011,
terminals 00 through 11 of “1CH” correspond to bits IR 00100 through IR 00111.
Input
devices
24 VDC
Wiring and Connections
Section 3-4
