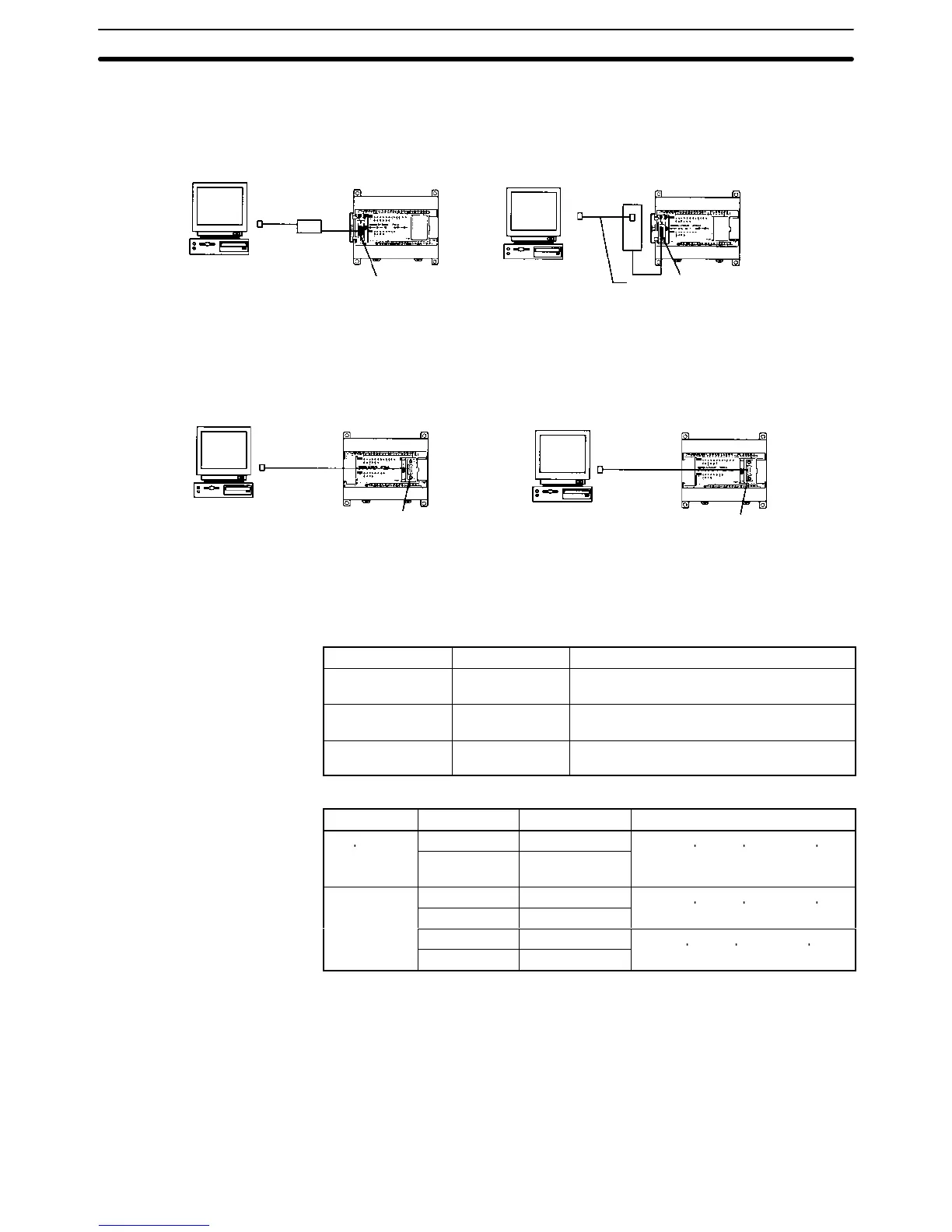

Peripheral Port Connection
A personal computer can be connected to the CPU Unit’s Peripheral port with a
CQM1-CIF01 or CPM1-CIF01 RS-232C Adapter.
Using a CQM1-CIF02
CQM1-CIF02
CPM2A
Peripheral port
IBM PC/AT or
compatible
computer
Using a CPM1-CIF01
CPM1-CIF01
CPM2A
Peripheral port
IBM PC/AT or
compatible
computer
XW2Z-j00S
RS-232C Port Connection
A personal computer can be connected to the CPU Unit’s RS-232C port with an
XW2Z-j00S or XW2Z-j00S-V Connecting Cable.
Using an XW2Z-j00S Cable
CPM2A
RS-232C port
IBM PC/AT or
compatible
computer
XW2Z-j00S
Using an XW2Z-j00S-V Cable
CPM2A
RS-232C port
IBM PC/AT or
compatible
computer
XW2Z-j00S-V
Note The XW2Z-j00S cables have a D-Sub 25-pin connector and the
XW2Z-j00S-V cables have a D-Sub 9-pin connector.
Support Software
Name Model number Comments
CX-Programmer
(Ver. 1.2 or later)
WS02-CXPC1-E For Window 95 or 98
(CD-ROM)
SYSMAC-CPT
Support Software
WS01-CPTB1-E For IBM PC/AT or compatible computers
(1.44 MB 3.5-inch floppy disks or CD-ROM)
SYSMAC Support
Software
C500-ZL3AT1-E For IBM PC/AT or compatible computers
(1.44 MB 3.5-inch floppy disks)
Cables and Adapters
CPM2A port Cable length Model number Comments
Peripheral
3.3 m CQM1-CIF01
For a 25-pin computer serial port
p
3.3 m +
0.15 m
CPM1-CIF01 +
XW2Z-S001
pp p
RS-232C
2 m XW2Z-200S
For a 25-pin computer serial port
5 m XW2Z-500S
pp p
2 m XW2Z-200S-V
For a 9-pin computer serial port
5 m XW2Z-500S-V
pp p
3-4-8 Host Link Connections
Host Link is a command/response communications system in which commands
are transmitted from the host computer and corresponding responses are
returned from the destination PCs. Host Link commands can be used to read/
write data in PC data areas and read/write PC settings.
The CPM2A CPU Unit can be connected to an IBM PC/AT or compatible com-
puter or a Programmable Terminal through the CPU Unit’s Peripheral port or
RS-232C port, as shown in the following diagrams.
One-to-one Host Link
Connection
Wiring and Connections
Section 3-4
