83

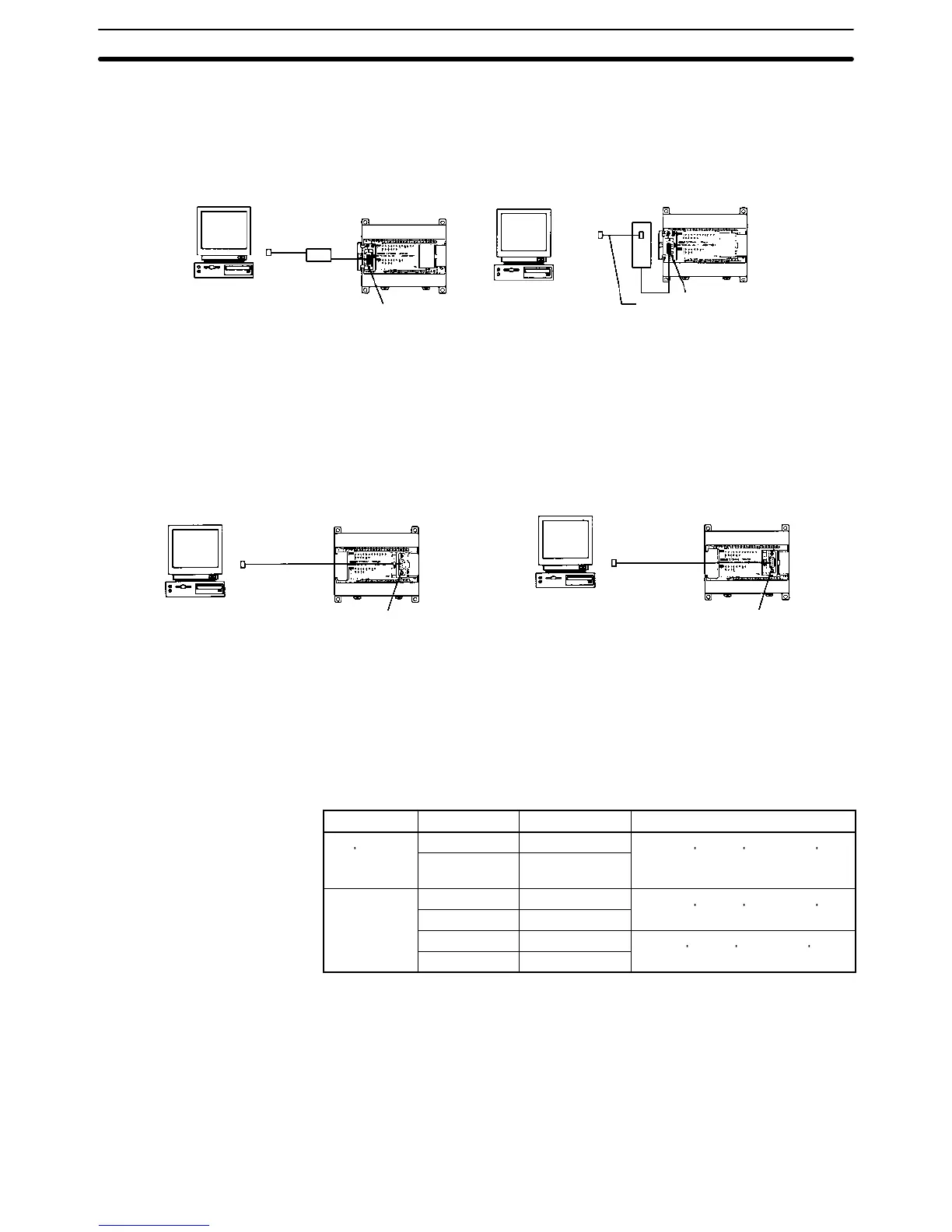

Peripheral Port Connection
Connect to the CPU Unit’s Peripheral port with a CQM1-CIF01 or CPM1-CIF01
RS-232C Adapter.
Using a CQM1-CIFjj
CQM1-CIF02
CPM2A
Peripheral port
IBM PC/AT or
compatible
computer
Using a CPM1-CIF01
CPM1-CIF01
CPM2A
Peripheral port
IBM PC/AT or
compatible
computer
XW2Z-j00S
RS-232C Port Connection
Connect to the CPU Unit’s RS-232C port with an XW2Z-j00S or
XW2Z-j00S-V Connecting Cable.
Using an XW2Z-j00S Cable
CPM2A
RS-232C port
IBM PC/AT
or compatible
computer
XW2Z-j00S
Using an XW2Z-j00S-V Cable
CPM2A
RS-232C port
IBM PC/AT or
compatible
computer
XW2Z-j00S-V
Note The XW2Z-j00S cables have a D-Sub 25-pin connector and the
XW2Z-j00S-V cables have a D-Sub 9-pin connector.
Cables and Adapters
CPM2A port Cable length Model number Comments
Peripheral
3.3 m CQM1-CIF02
For a 25-pin computer serial port
p
3.3 m +
0.15 m
CPM1-CIF01 +
XW2Z-S001
pp p
RS-232C
2 m XW2Z-200S
For a 25-pin computer serial port
5 m XW2Z-500S
pp p
2 m XW2Z-200S-V
For a 9-pin computer serial port
5 m XW2Z-500S-V
pp p
Communications Settings
Set the CPU Unit’s Communications Switch to ON when using the standard
communications settings
1
. Set the switch to OFF to use the settings in the PC
Setup.
Note The standard settings are: Host Link, 9,600 bps, 7-bit data, 1 start bit, 2 stop bits,
and even parity. Refer to Section 1 PC Setup in the Programming Manual
(W353) for details on settings.
Wiring and Connections
Section 3-4
