Omron D6T Series - I2 C Signal Timing and Definitions; Signal Terminal Flow; I2 C Signal Terminology

D6T MEMS Thermal Sensors User’s Manual (A284) 10
Table 3. Content of Received Data (Output Data)
PTAT
Reference temperature data stored in the sensor
The PTAT and Pn temperature data represents values equal to
temperature values (°C) multiplied by a factor of 10 as signed 16-bit
integers
Bit D15 is the sign bit.
25.0°C = 250 (High-byte data = 0x00, Low-byte data = 0xFA)
-25.0°C = -250 (High-byte data = 0xFF, Low-byte data = 0x06)
P0 to P15
(D6T-44L-06 )
P0 to P7
(D6T-8L-09)
P0
(D6T-1A-01)
(D6T-1A-02)
P0 to P1023
(D6T-32L-01A)

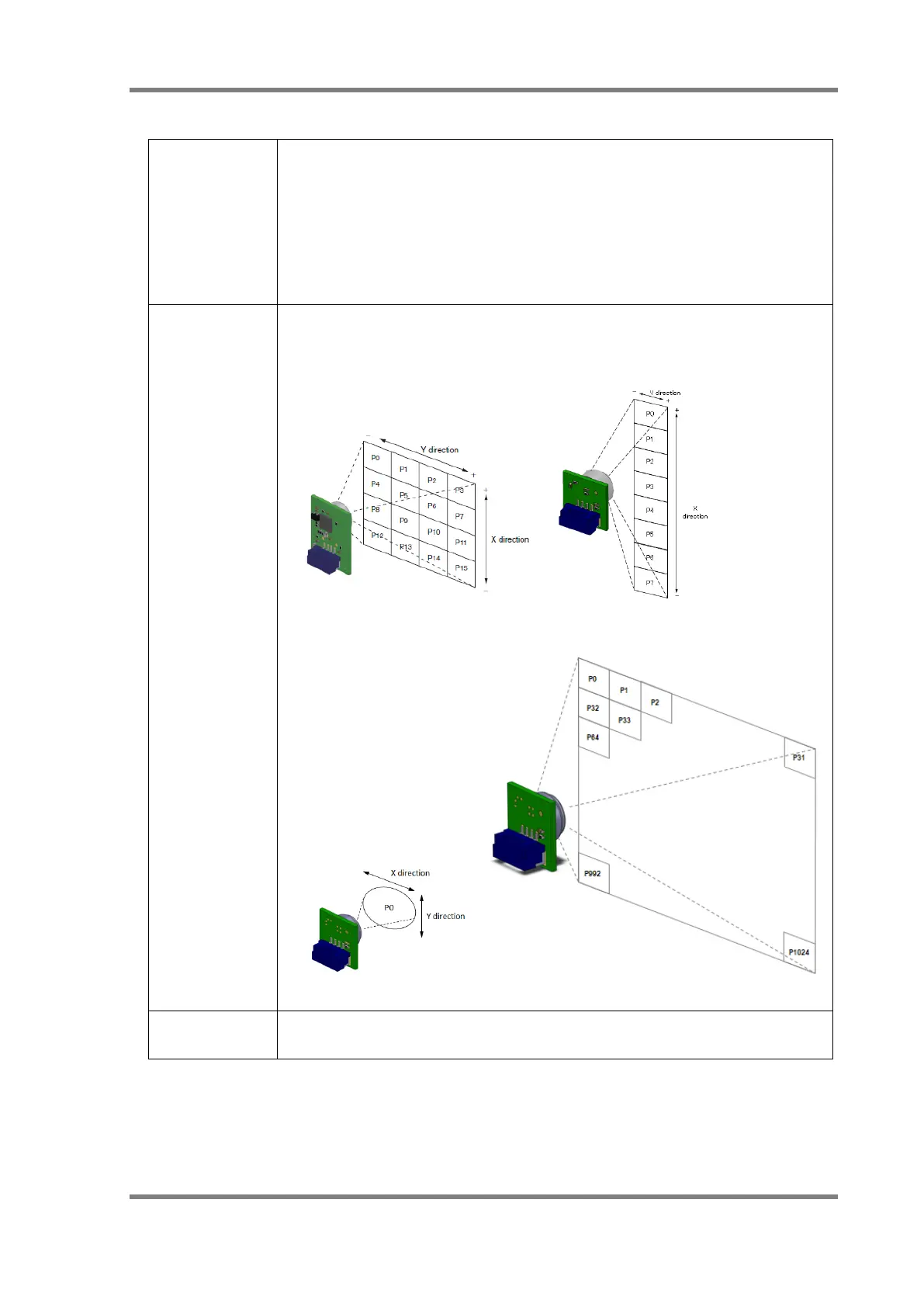

Refer to the following figures for illustrations of temperature data for each
pixel (8- and 16-channel arrangements)
D6T-44L-06 (16ch) D6T-8L-09 (8ch)
D6T-1A-01/-02 (1ch) D6T-32L-01A (1024ch)
PEC Packet error check code.
(Refer to section 6.4 and the "SMBus" specifications for details)
