D6T MEMS Thermal Sensors User’s Manual (A284) 18
6.9 Sensor Securement
Install the MEMS Thermal Sensor so that it is enclosed by casing and secured at mountable
areas.
D6T-44L-06 D6T-8L-09 D6T1A-01 / -02

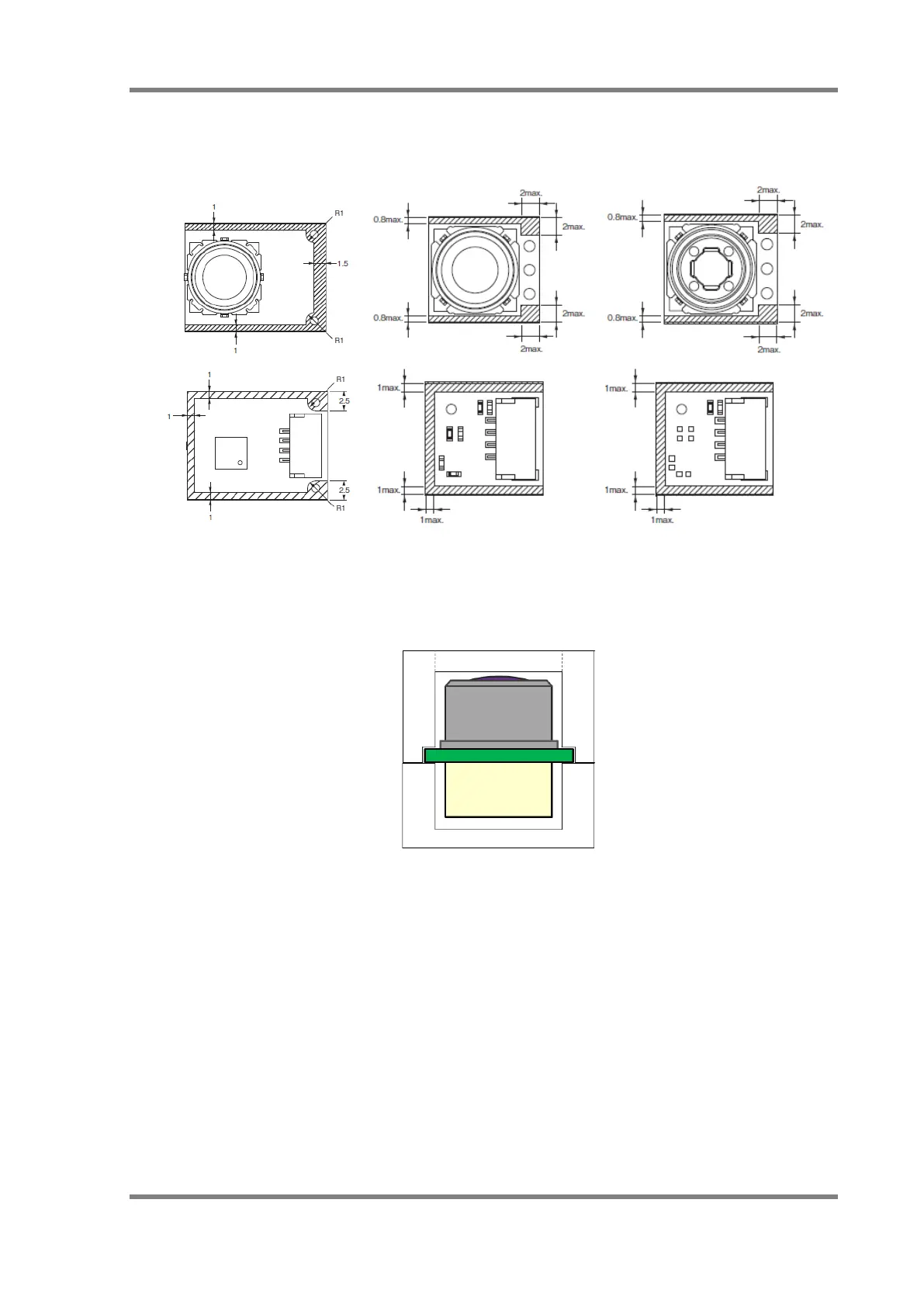

Fig. 14. Mountable Areas (Shaded Areas)
Fig. 15. Sensor Securement (Reference)
