Omron D6T - I2 C Specifications

D6T MEMS Thermal Sensors User’s Manual (A284) 8
6.3 I2C Specifications
Refer to the following table for information on communication specifications
Table 2. I2C Port Settings Parameter
Slave address
7-bit (0001_010b)
8-bit (with R/W bit) expression: Read: 15 h, Write: 14 h
Data bit length
8 bits (MSB-first)
Clock speed
Max. 100 kHz
Clock stretch support All models excluding D6T-1A-01, D6T-1A-02, and D6T-8L-09
(*Refer to section 6.5 for more information on using
software-based I2C)
(a) 16-channel (D6T-44L-06)
* This data is used to perform the Read operation to confirm that the configuration of internal
registers in this product have been updated. This Read operation can be skipped.
(b) 8-channel (D6T-8L-09)
(c) 1-channel (D6T-1A-01/D6T-1A-02)

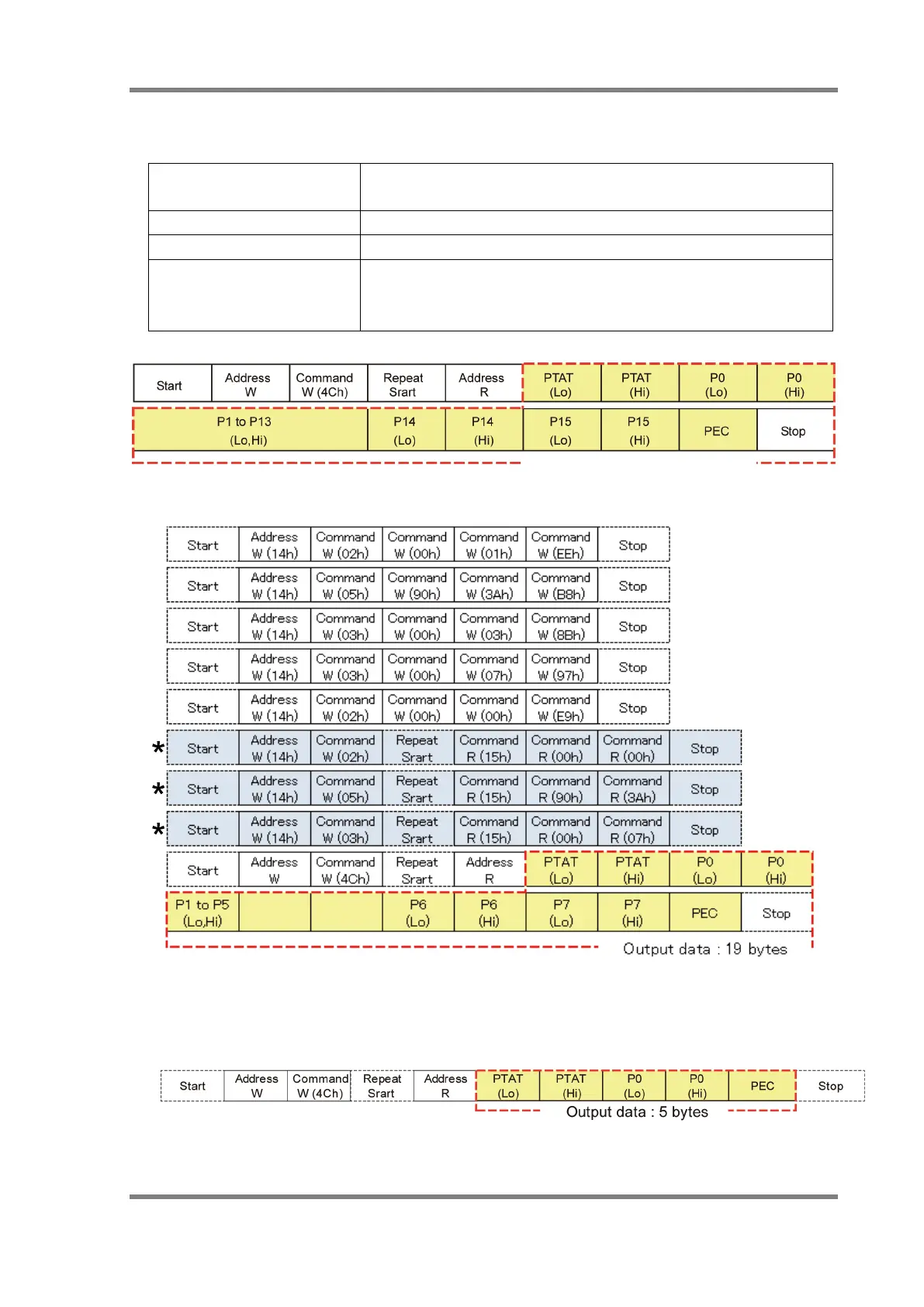

Fig. 8. I2C Data Line Flow
Output data : 35 bytes
