6 Usage Procedure
6.1 Connectors

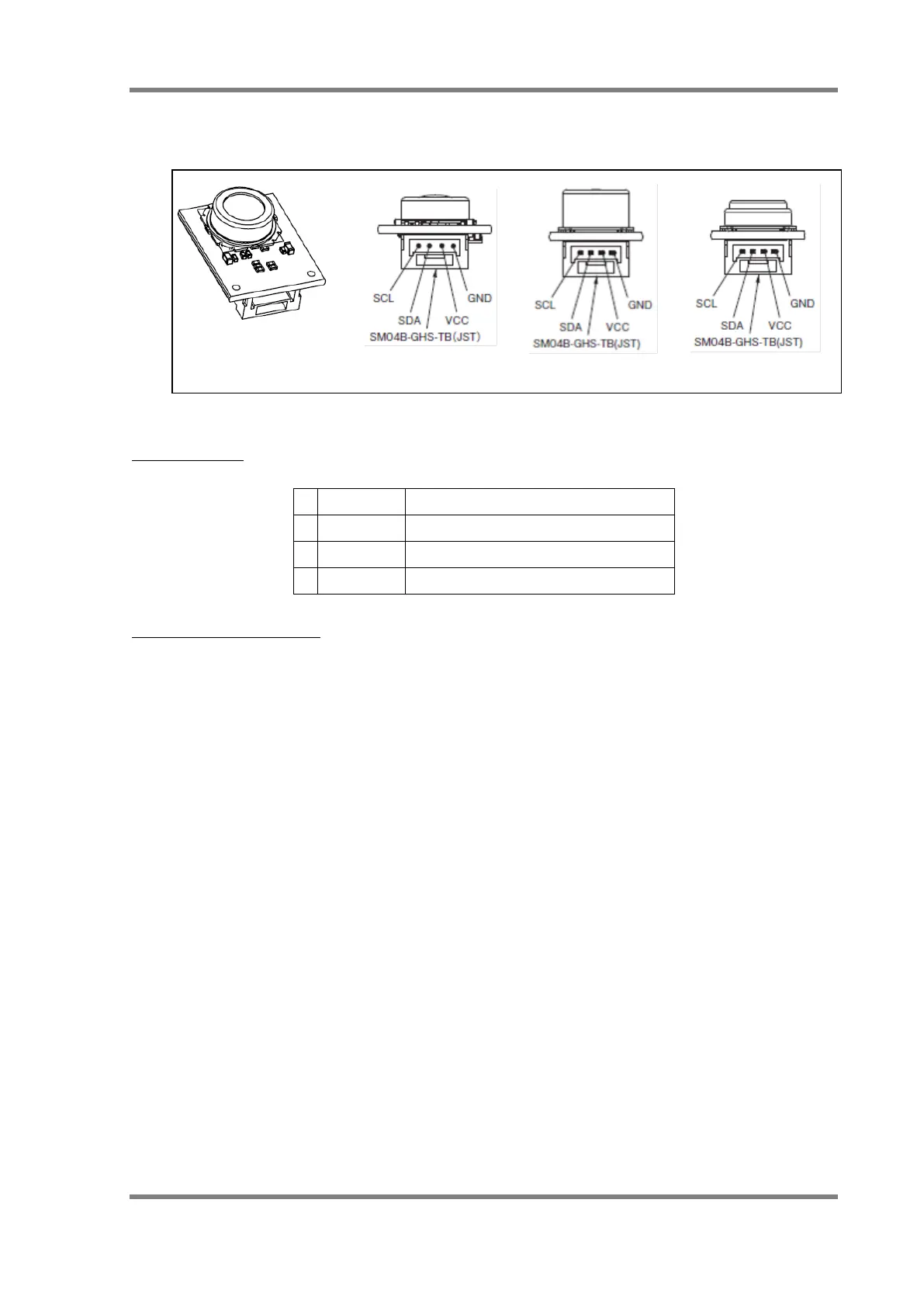

Fig. 6. Product Exterior (Reference)
Connector Pins
Table 1. Connector Pin Table
1
GND
GND power supply pin
2 VCC VCC power supply pin (5 V ±10%)
3 SDA I2C (5 V) data
4 SCL I2C (5 V) clock
Connector Parts Materials
Connector part model: SM04B-GHS-TB (JST)
Contact: SSHL-002T-P0.2 (JST)
Housing: GHR-04V-S (JST)
The lens height and circuit board size varies by model. Refer to the product catalog for more
information on dimensions. Use a 4-pin connector as described above to connect this module to
systems.
D6T-8L-09
D6T-1A-01 / -02
D6T-44L-06
