129
Using the Simple Program Function Section 4-15

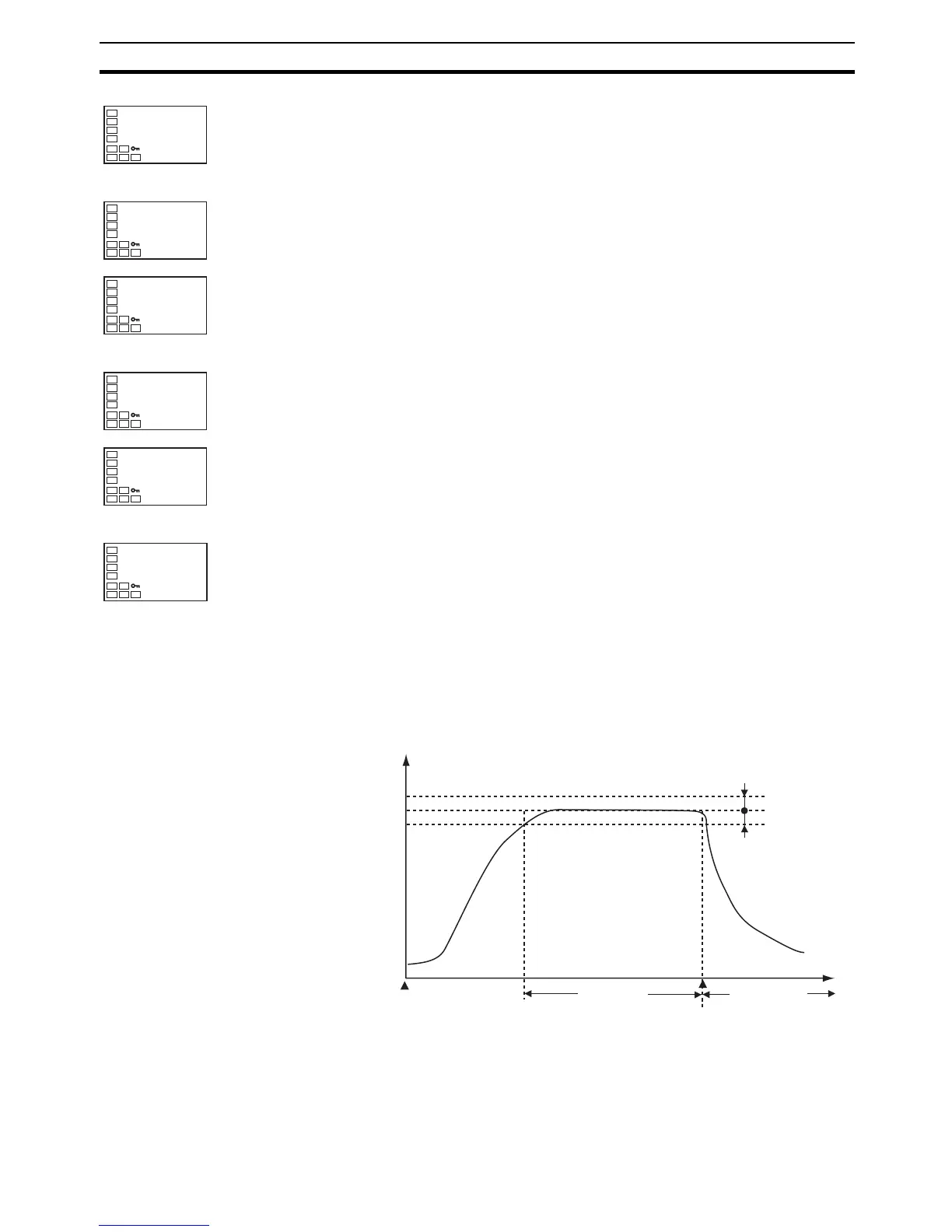

4-15 Using the Simple Program Function
4-15-1 Simple Program Function
• The simple program function can be used for the following type of control.
3. Press the U Key to select sp (set point).
Initial Setting Level
4. Select the Transfer Output Upper Limit parameter by pressing the M Key.
5. Use the D Key to set the parameter to 200. The default is 1300.
Initial Setting Level
6. Select the Transfer Output Lower Limit parameter by pressing the M Key.
7. Use the U Key to set the parameter to −50. The default is −200.
Operation Level
8. To return to the operation level, press the O Key for at least one second.
tr-t
sp
C
tr-h
1300
Transfer Output
Upper Limit
C
tr-h
200
C
tr-l
-200
Transfer Output
Lower Limit
C
tr-l
-50
C
25
100
PV/SP
RSET → STRT
PV
SP
Set point
Wait band
Wait band
Soak time END display
END output
Select either
STOP or RUN.
