Monitor/Setting Item Level Section 5-5

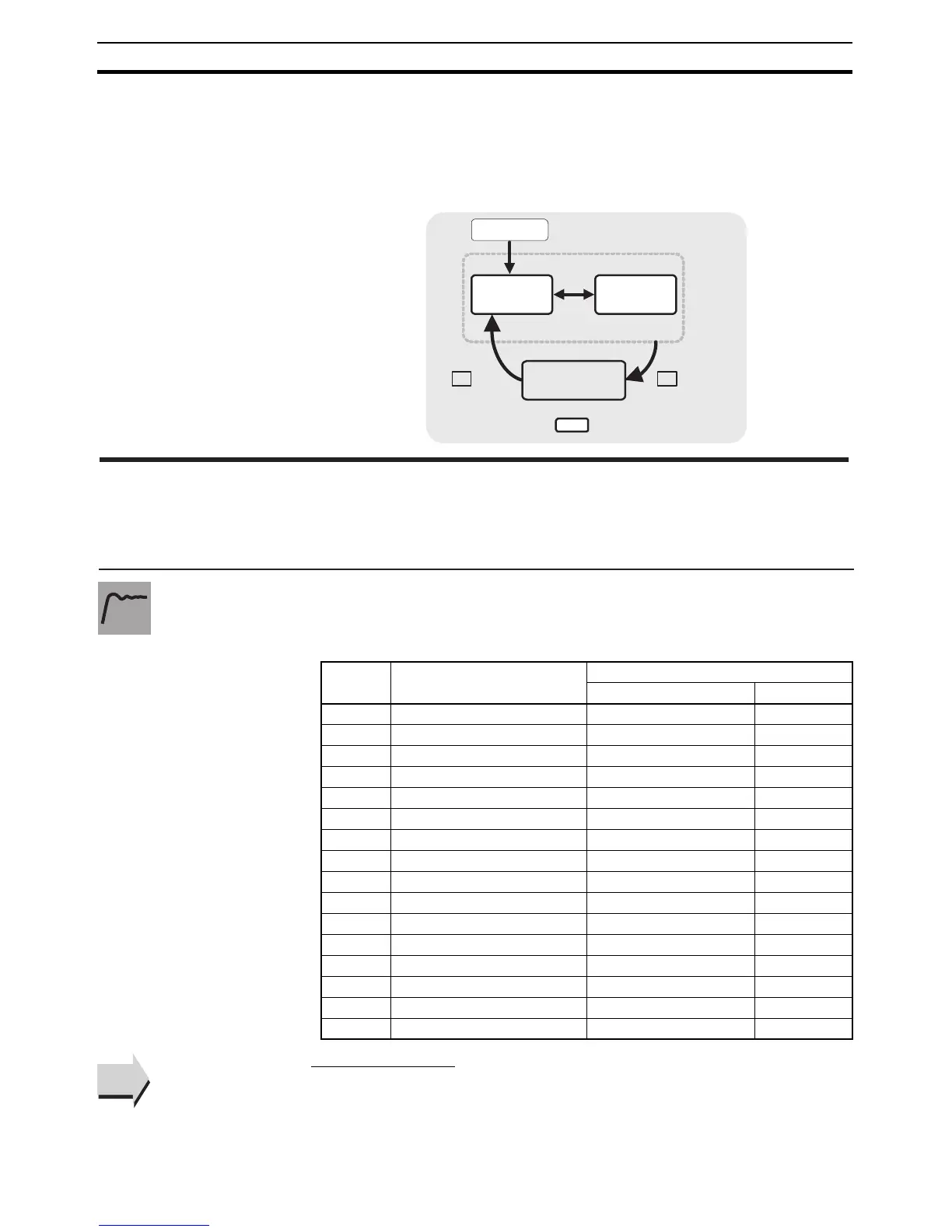

5-5 Monitor/Setting Item Level
Monitor/setting items can be displayed by means of the function key when the
PF Setting parameter (advanced function setting level) is set to PFDP: Moni-
tor/Setting Item (for the E5AN/EN only).
• When the PF Key is set to display monitor/setting items, pressing the PF
Key will display in order the contents of the Monitor/Setting Item 1 to 5
parameters. The contents of these parameters are shown in the following
table. For the setting (monitor) ranges, refer to the applicable parameters.
■ Related Parameters
PF setting (advanced function setting level): Page 247
Monitor/setting items 1 to 5 (advanced function setting level): Page 248
Operation
Level
Power ON
PF Key PF
Adjustment
Level
Monitor/Setting
Item Level
Control in progress
Press the O Key for
at least 1 s.
Key
Monitor/Setting Item Display 1 to 5
The PF Setting parameter must be
set to PFDP, and the Monitor/Setting
Item 1 to 5 parameters must not be
set to OFF.
Set
value
Setting Remarks
Monitor/Setting Symbol
0 Disabled ---
1 PV/SP/Multi-SP Can be set. (SP) ---
2 PV/SP/MV Can be set. (SP) ---
3 PV/SP /Soak time remain Can be set. (SP) ---
4 Proportional band (P) Can be set. p
5 Integral time (I) Can be set. i
6 Derivative time (D) Can be set. d
7 Alarm value 1 Can be set. al-1
8 Alarm value upper limit 1 Can be set. al1h
9 Alarm value lower limit 1 Can be set. al1l
10 Alarm value 2 Can be set. al-2
11 Alarm value upper limit 2 Can be set. al2h
12 Alarm value lower limit 2 Can be set. al2l
13 Alarm value 3 Can be set. al-3
14 Alarm value upper limit 3 Can be set. al3h
15 Alarm value lower limit 3 Can be set. al3l
Function
See
See
