Communications Function Section 1-4
1-3-2 Saving Settings
• If you press the M Key at the final parameter, the display returns to the
top parameter for the current level.
• To change parameter settings, specify the setting using the U or D Key,
and either leave the setting for at least two seconds or press the M Key.
This saves the setting.
• When another level is selected after a setting has been changed, the con-
tents of the parameter prior to the change is saved.
• When you turn the power OFF, you must first save the settings (by press-
ing the M Key). The settings are sometimes not changed by merely
pressing the U or D Keys.
1-4 Communications Function
The E5CN/AN/EN/GN are provided with a communications function that
enables parameters to be checked and set from a host computer. If the com-
munications function is required, use the E53-CN@03N2 with the E5CN, or
the E53-EN03 or E53-EN01 with the E5AN/EN/GN. For details on the com-
munications function, see the separate Communications Manual Basic Type.
Use the following procedure to move to the communications setting level.
1,2,3... 1. Press the O Key for at least three seconds to move from the operation lev-
el to the initial setting level.
2. Press the O Key for less than one second to move from the initial setting
level to the communications setting level.
3. Select the parameters as shown below by pressing the M Key.
4. Press the U or D Key to change the parameter setting.
M
M
Moves in order after M key
is pressed (if key is
released within 1 s).

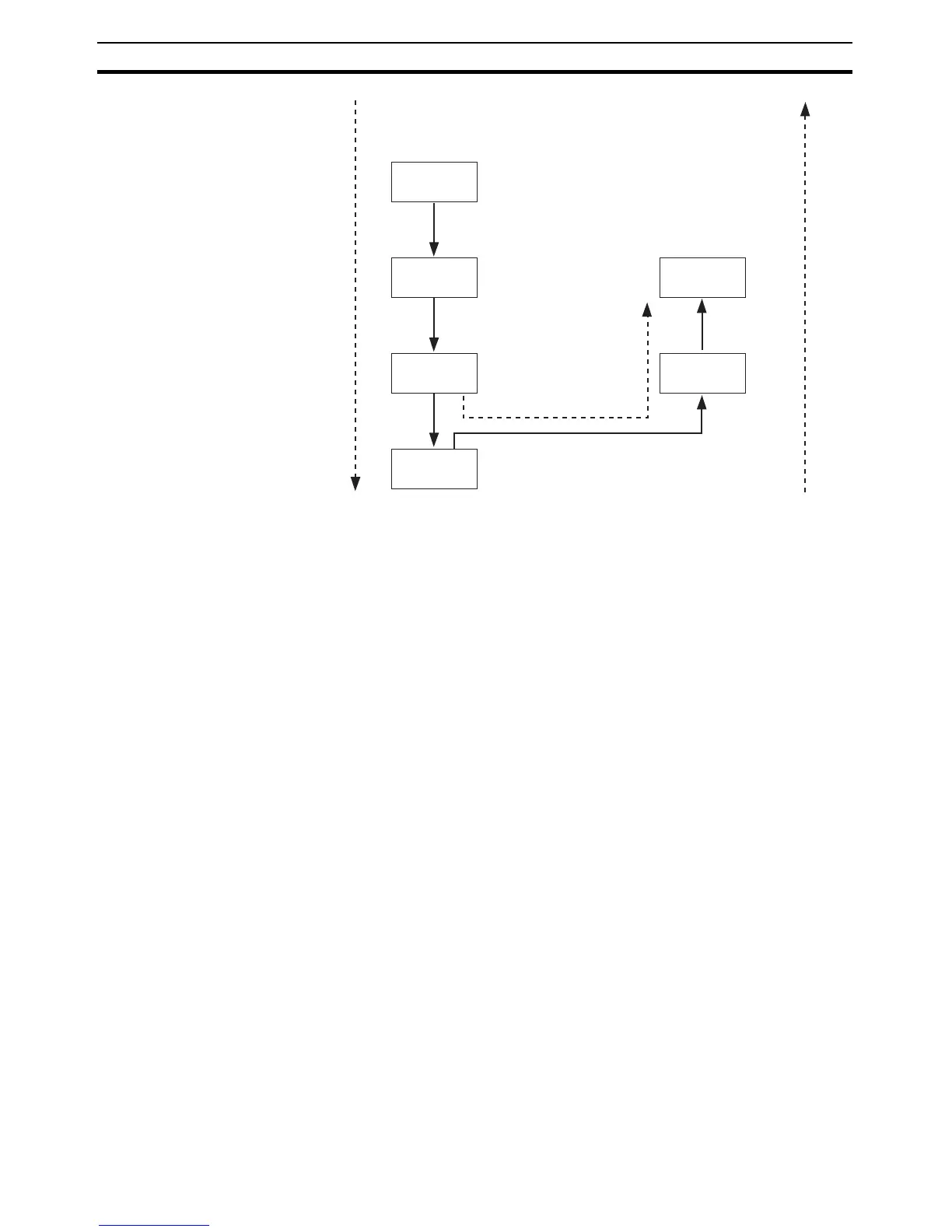

Parameter 1
Parameter 2
Parameter 3
After M key
is pressed
Parameter 4
Hold down the M key
during this interval.
While the M key is being held
down, the parameter will move
each second in reverse order.
Parameter 2
Parameter 3
After M key has
been held down
for 2 s.
After M key has
been held down
for 1 s.
