Installation Section 2-1
Mounting the Terminal Cover
For the E5CN, make sure that the “UP” mark is facing up, and then attach the
E53-COV17 Terminal Cover to the holes on the top and bottom of the Temper-
ature Controller.
E5AN/EN
Mounting to the Panel
1,2,3... 1. For waterproof mounting, waterproof packing must be installed on the
Controller. Waterproofing is not possible when group mounting several
Controllers. Waterproof packing is not necessary when there is no need for
the waterproofing function.
2. Insert the E5AN/E5EN into the square mounting hole in the panel (thick-
ness: 1 to 8 mm). Attach the Mounting Brackets provided with the product
to the mounting grooves on the top and bottom surfaces of the rear case.
3. Use a ratchet to alternately tighten the screws on the top and bottom
Mounting Brackets little by little to maintain balance, until the ratchet turns
freely.
Mounting the Terminal Cover
Slightly bend the E53-COV16 Terminal Cover to attach it to the terminal block
as shown in the following diagram. The Terminal Cover cannot be attached in
the opposite direction.

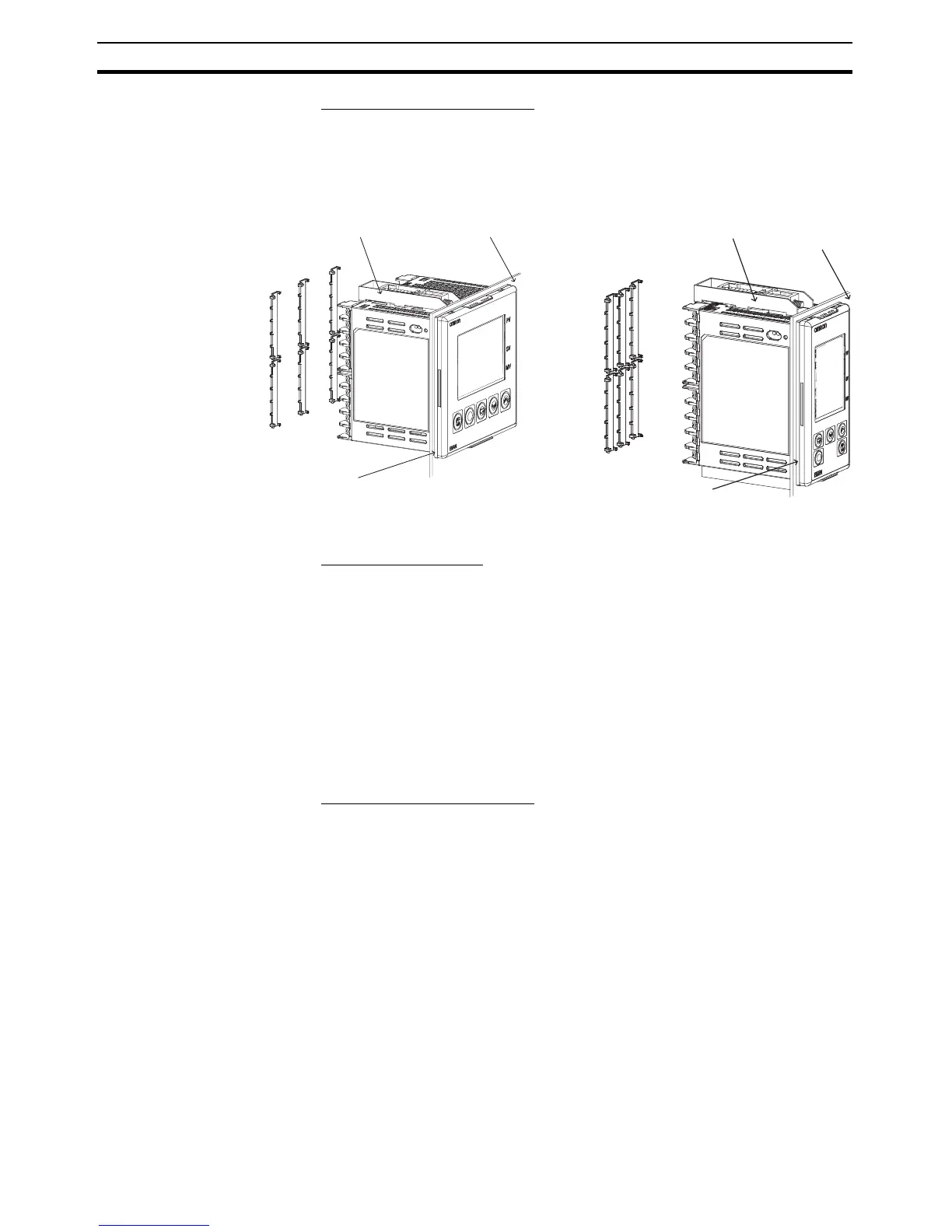

E5AN
Waterproof packing
Panel
Terminal Cover
(E53-COV16)
Mounting
Bracket
E5EN
Terminal Cover
(E53-COV16)
Waterproof packing
Mounting
Bracket
Panel
