Omron E5CC Quick Start Guide

Page 16 of 37
RD and SD LEDs on the K3SC will light up, confirming communication. A pop-up will appear confirming that the devices
were found. Click OK.

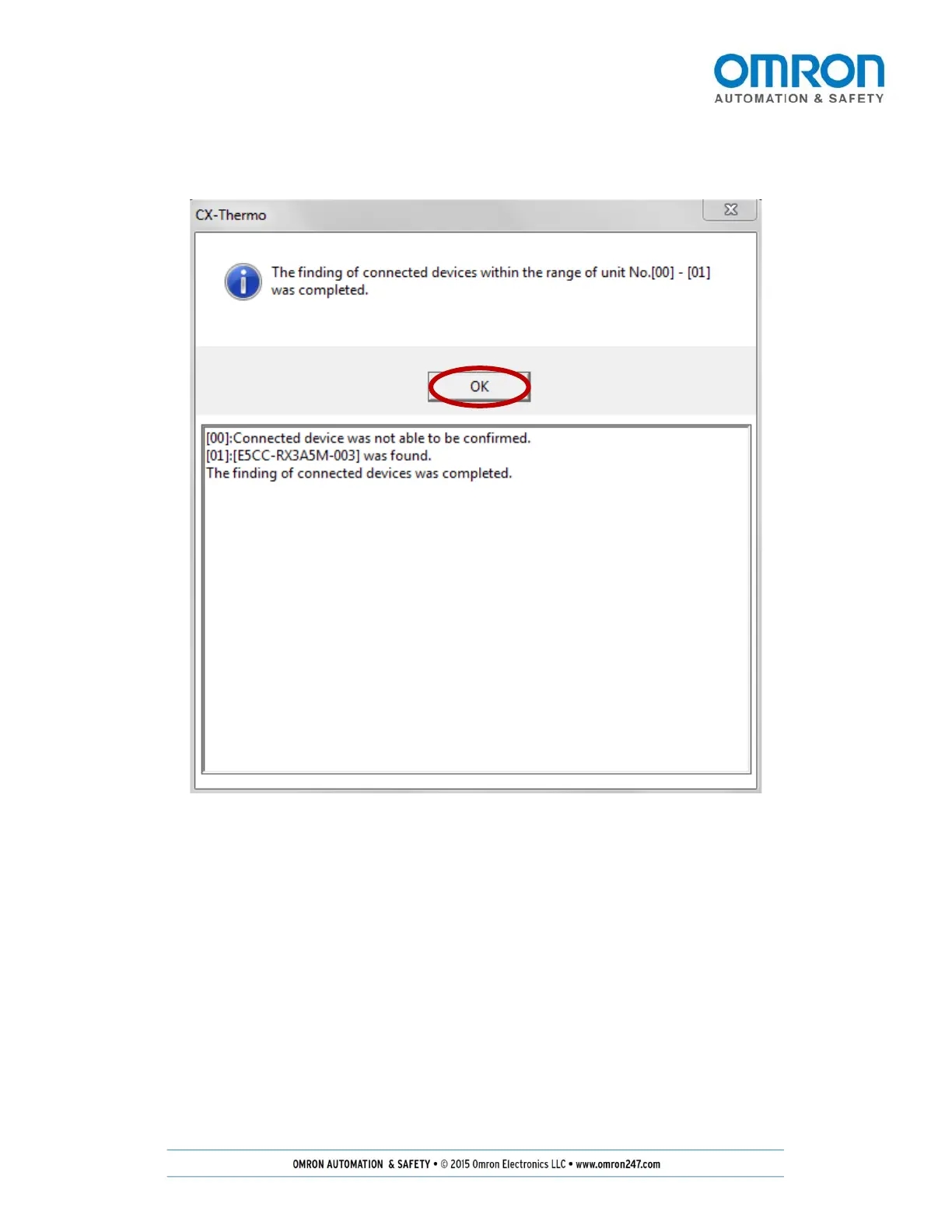

Figure 15: Confirmation of Devices Found
Next, decide whether or not to transfer the device parameters into CX-Thermo.

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
