Omron E5CC Quick Start Guide

Page 17 of 37

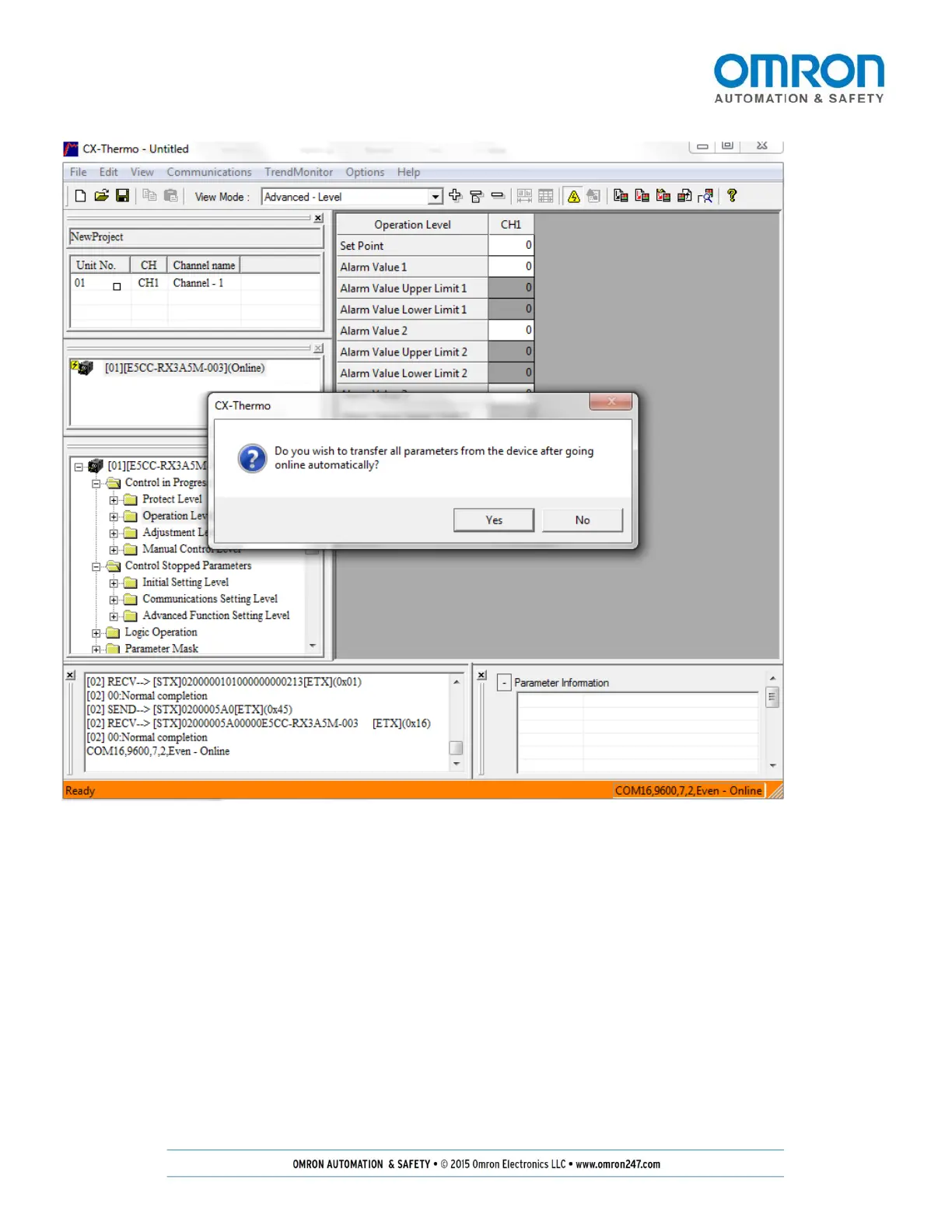

Figure 16: Option to Transfer Device Parameters
To initiate the transfer click yes. A pop-up will appear offering the option to transfer the parameters from one of
multiple devices.
A few other pop-ups could appear stating that some parameters might not be able to be transferred depending on the
version of the controller and the version of CX-Thermo.
A pop-up will then appear confirming the transfer of parameters. Click OK.

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
