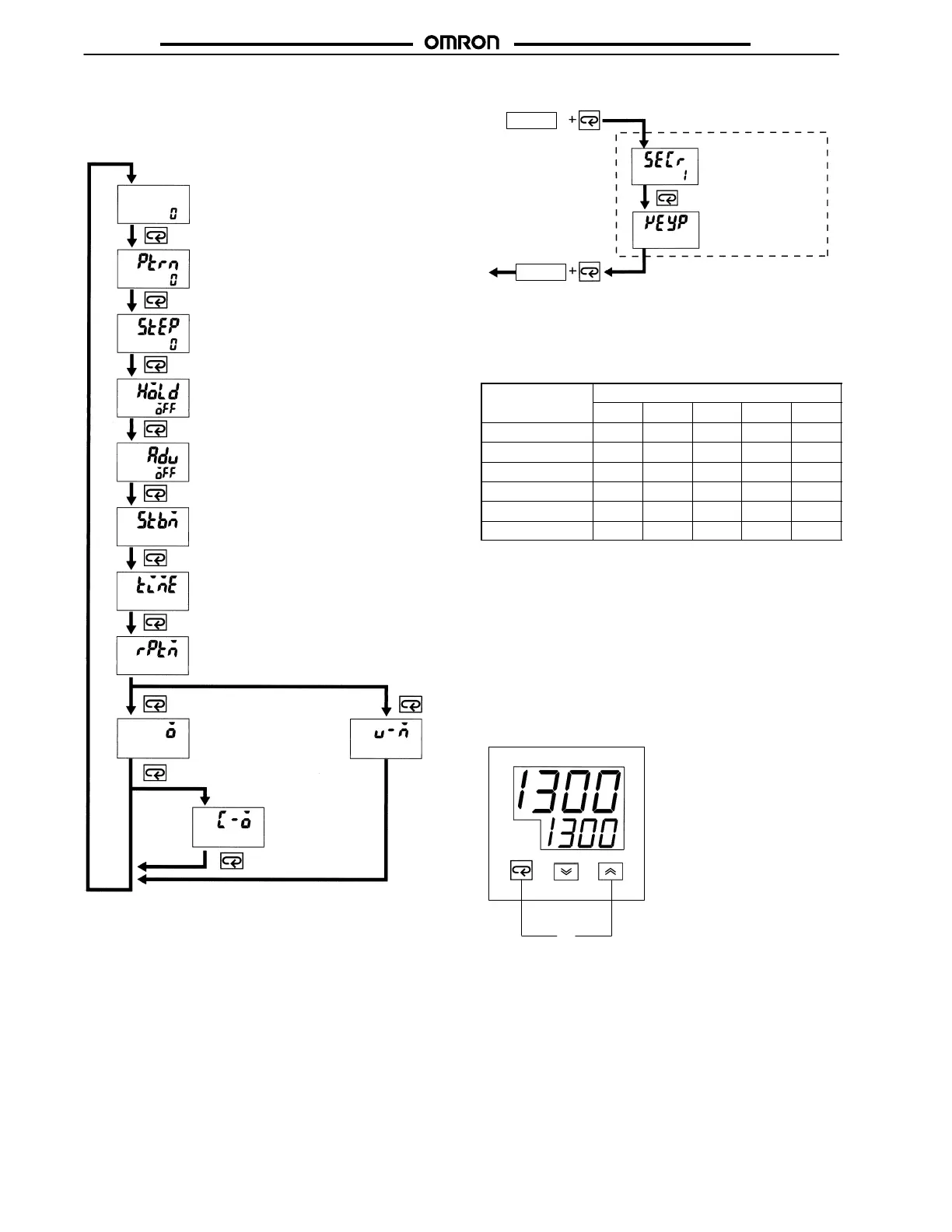

J PARAMETER OPERATION
Refer to “Settings” in the Operation Section.
Level 0 Mode
Process Value
Set Point
Pattern Number
(With E5CK–T, this display appears when more
than two patterns are used.)
Step Number
Hold
Advance
Standby Time (displays remaining time)
Pattern Elapsing Time
Pattern Execution Count
Operation Value
(heating)
(Control Valve Control)
(Heating/Cooling Control)
Operation Value
(Cooling)
Operation Value
Valve Opening
Operation Value
Time
Time
Number of times
Measured
value
PV/SP
The process value is displayed on the No.1 display and the set
point is displayed on the No.2 display.
When the multi-SP function is in use, the value of whichever is
set, set point 0 or 1, is linked.
Remote SP Monitor
Monitors remote SP in the local SP mode.
Set Point During SP Ramp
Monitors the set point when the SP ramp function is used.
J PROTECT MODE
Press twice
for 1 s min.
Security
Key protect
To level 0
Press twice
for 1 s min.
RUN/RST
RUN/RST
0
Security
Any mode marked with “X” in the following table is not displayed
on the menu when this parameter is set to “0” to “3.”
Mode
Set value
0 1 2 3 4
Calibration --- x x x x
Option --- --- x x x
Expansion --- --- x x x
Setup --- --- x x x
Level 2 --- --- --- x x
Level 1, 0 --- --- --- --- x
The Unit will be in only level 0 mode and the menu will not be avail-
able when this parameter is set to “4” to “6.”
Only the “PV/SP” parameter in the level 0 mode can be used when
this parameter is set to “5.”
Only the “PV/SP” parameter in the level 0 mode can be used
when this parameter is set to “6.”
Key Protect
Invalidate the automatic, manual, run, and reset functions.
J MANUAL MODE
A/M
Press both simultaneously for more than 1 second
to switch between auto or manual.
