6-4-3 PLC Setup
Communications Settings for the Serial Communications Option Board

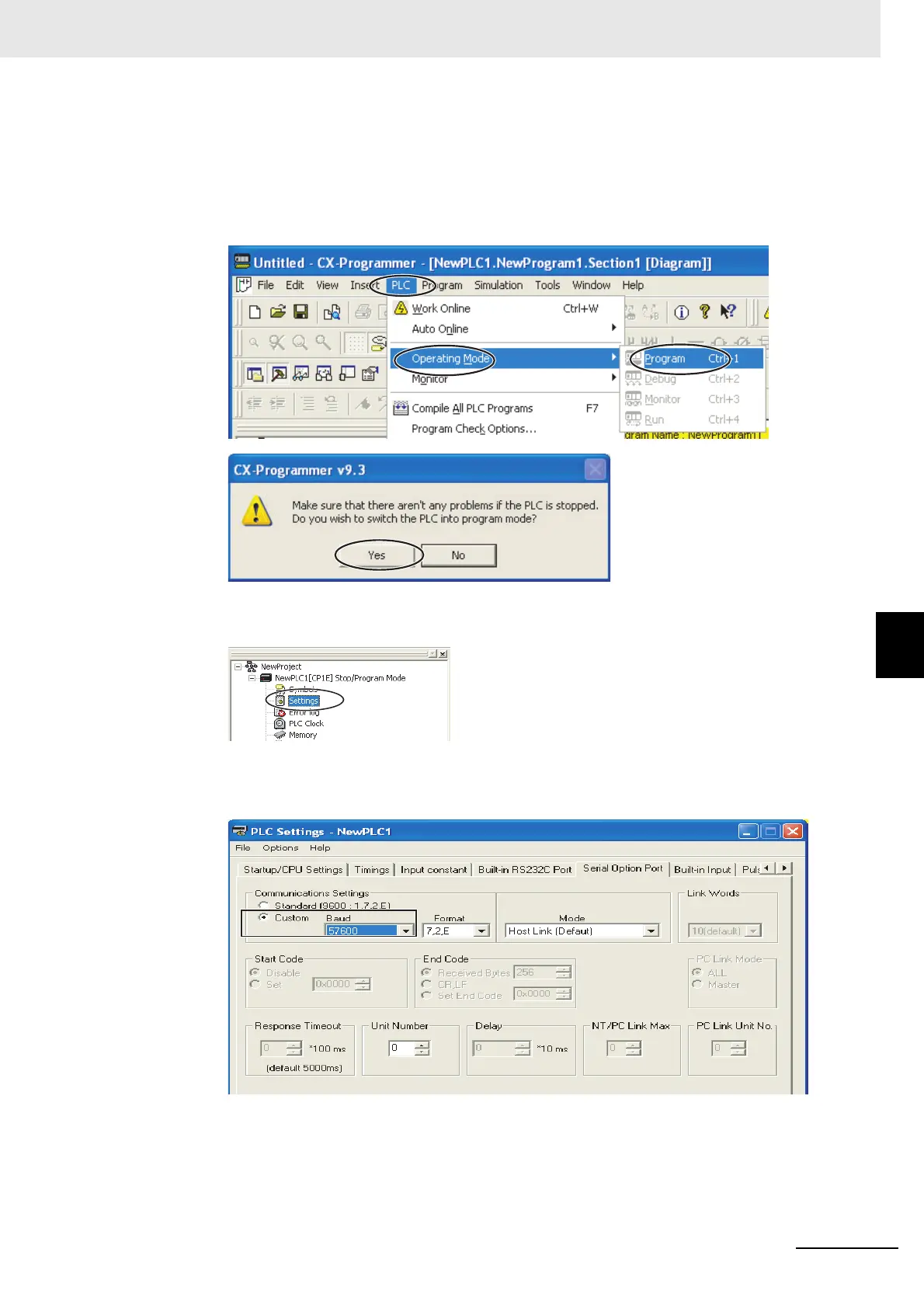

(1) The PLC operating mode must be changed to PROGRAM mode to enable changing
the communications settings in the PLC Setup.
Select PLC
−
Operating Mode
−
Program from the menu bar. A confirmation dialog
box will be displayed. Click the Yes Button.
(2) Double-click Settings. The PLC Setup Window will be displayed.
(3) Click the Serial Option Port Tab, select the Custom Option, and set the baud rate to
57,600. Leave the other settings at their default values.
Note: If you change the unit number, refer to 6-2-7 Communications Node Number.
To Next Page
