Omron E5EC Communications Manual

6 - 53
6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-7 Connecting to NJ-series PLCs
6
6-7-4 E5@C Controller Setup

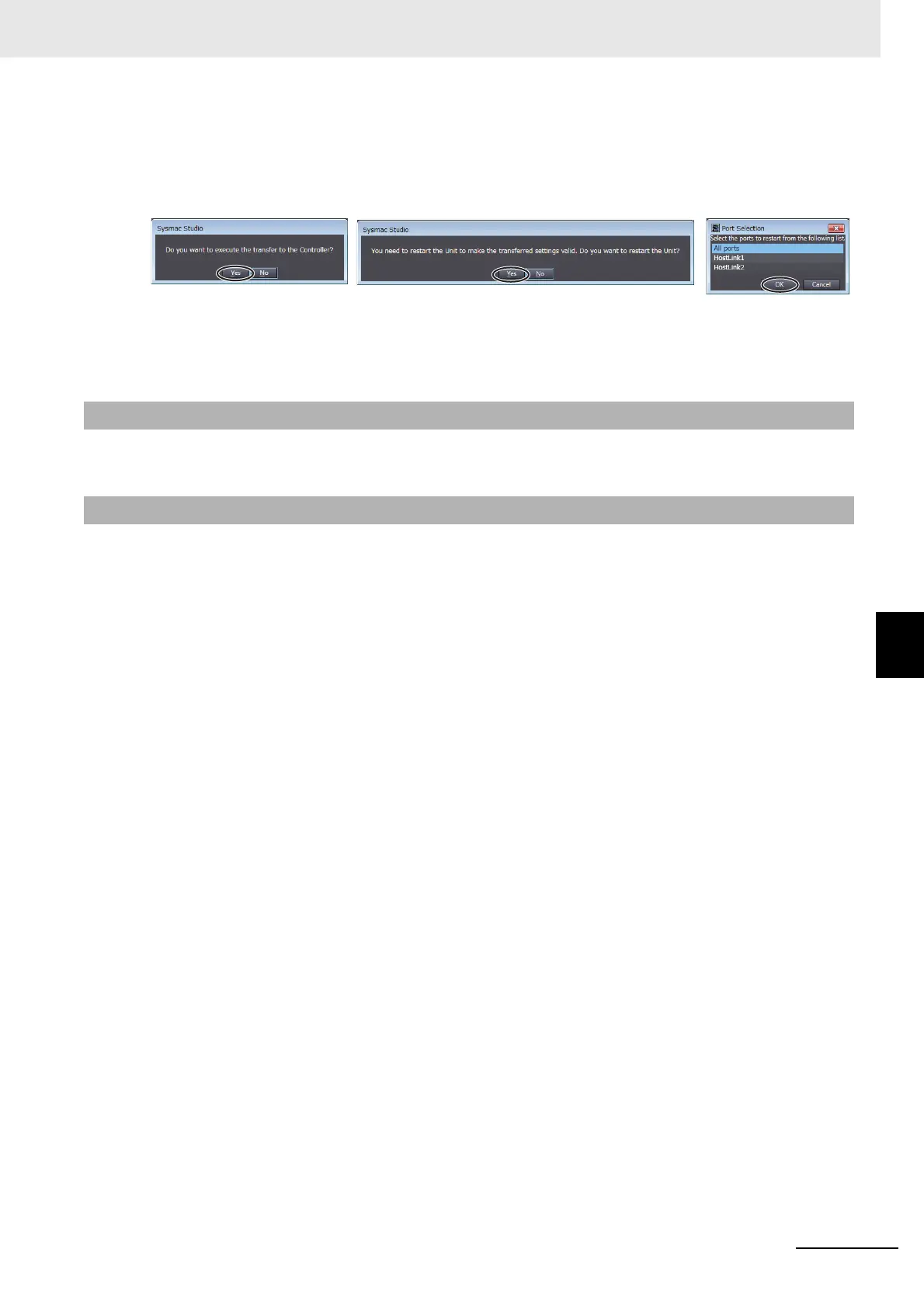

Click the Yes Button in the transfer confirmation dialog box to transfer the settings.
To restart the Unit and enable the transferred settings, click the Yes Button in the restart
confirmation dialog box.
In the Port Selection Dialog Box, select All ports and click the OK Button.
Click the OK Button in the dialog box that says the transfer was successfully completed.
This completes setting up the PLC.
You will use the Sysmac Studio to check operation, so leave it online.
Set up programless communications. Perform the procedure that is given in 6-4-4 E5
@ C Controller
Setup.
Perform the checking operation given in 6-6-5 Checking Operation.
6-7-4 E5@C Controller Setup
6-7-5 Checking Operation

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
