6 - 59
6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-8 Connecting to MELSEC Q-series PLCs
6
6-8-3 PLC Setup

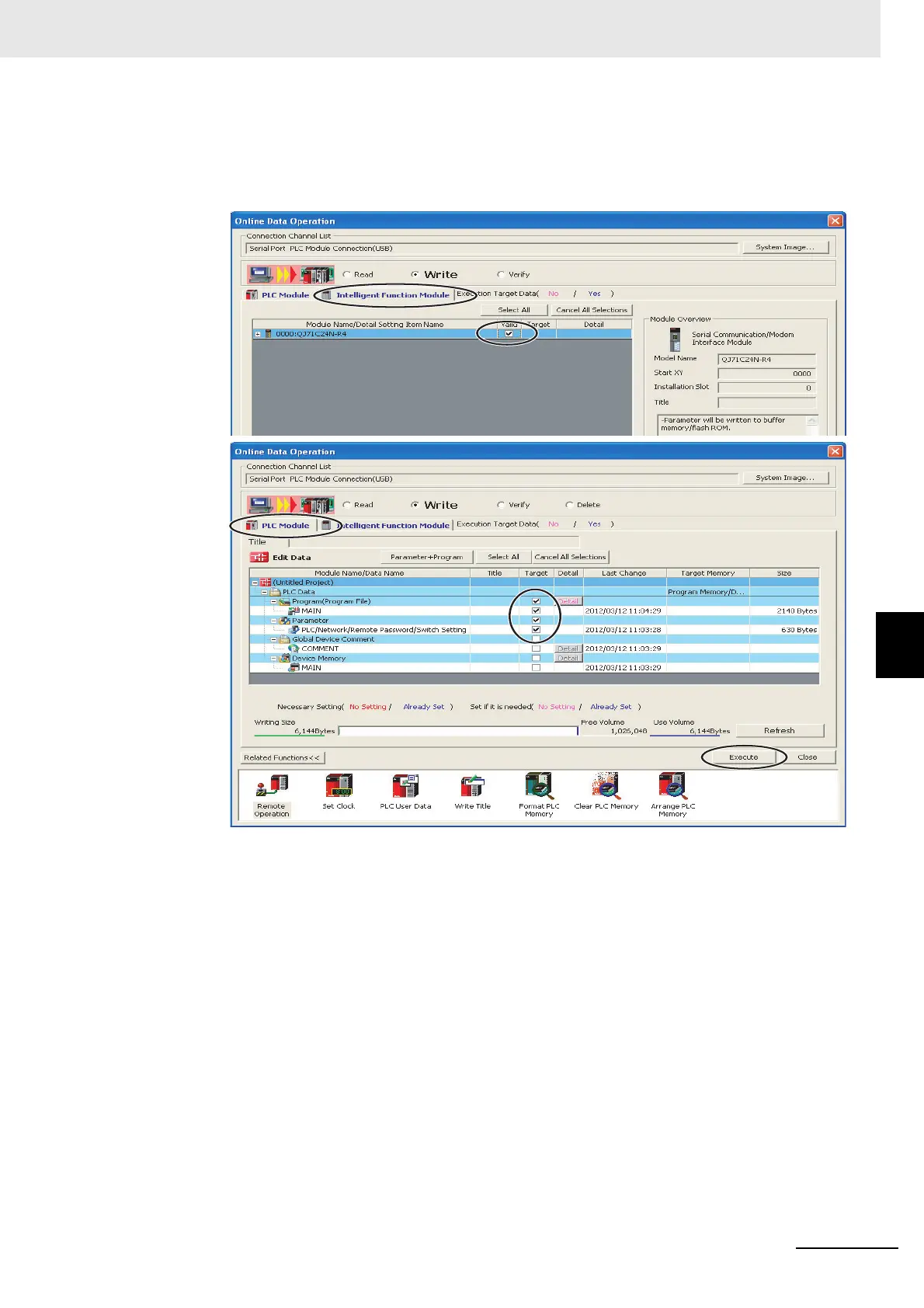

(4) We will write set values to the PLC.
Click the Intelligent Function Module Tab and select the check box for the Serial
Communication Module in the Valid Column. Then click the PLC Module Tab, select the
check box for the parameters in the Target Column, and then click the Execute Button.

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
