6 Programless Communications
6 - 78
E5@C Digital Temperature Controllers Communications Manual (H175)

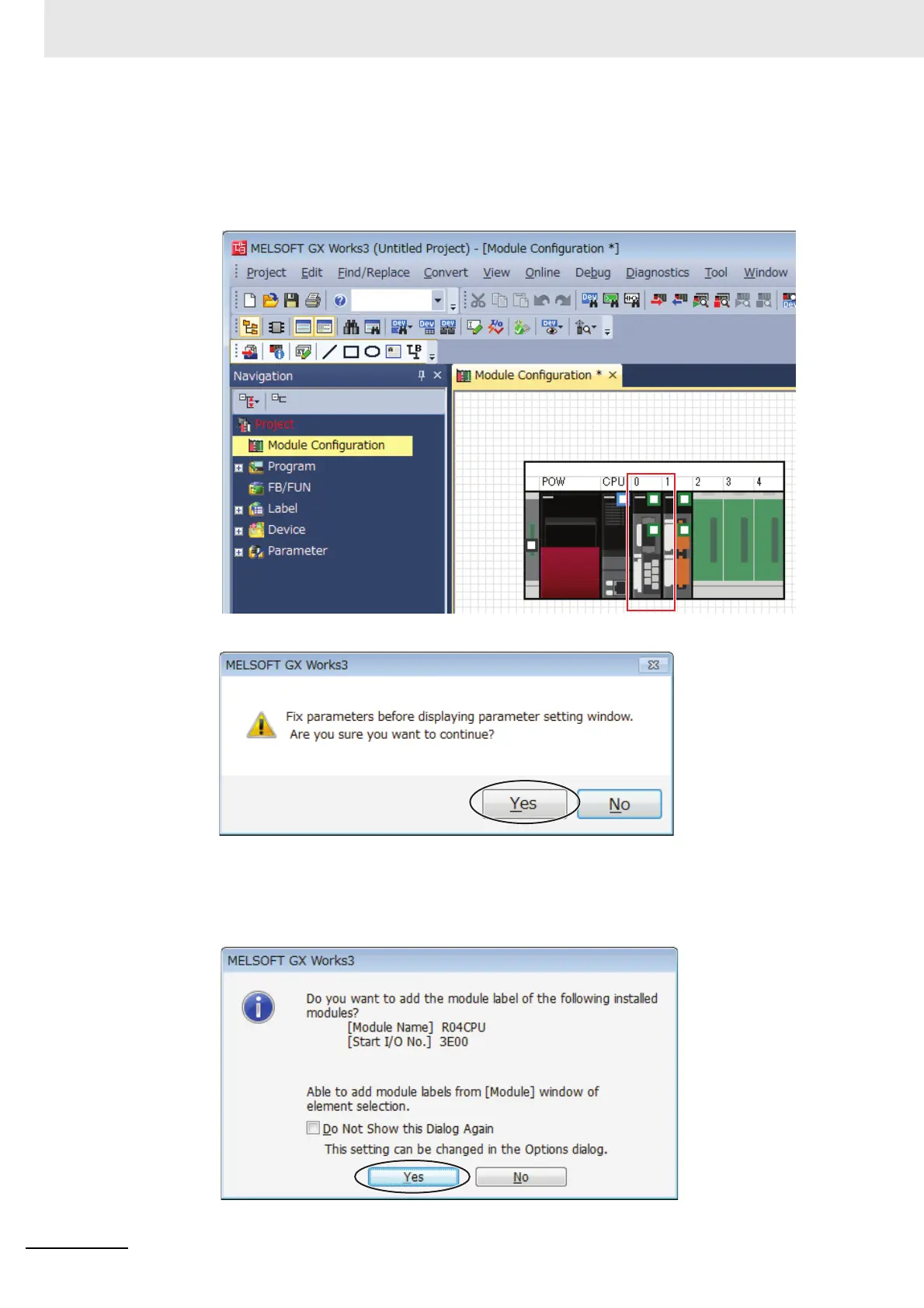

Communications Settings in the Serial Communication Module
(1) The above procedure reads the Module configuration that is actually connected in
the PLC.
Double-click the Serial Communication Module in the diagram.
Click the Yes Button in the dialog box.
(2) Messages will be displayed asking whether or not to add labels for mounted
Modules. One message will be displayed for each mounted Module.
Click the Yes Button for all of them.

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
