5 Advanced Operations
5 - 66
E5@C Digital Temperature Controllers User’s Manual (H174)
 Making the Settings

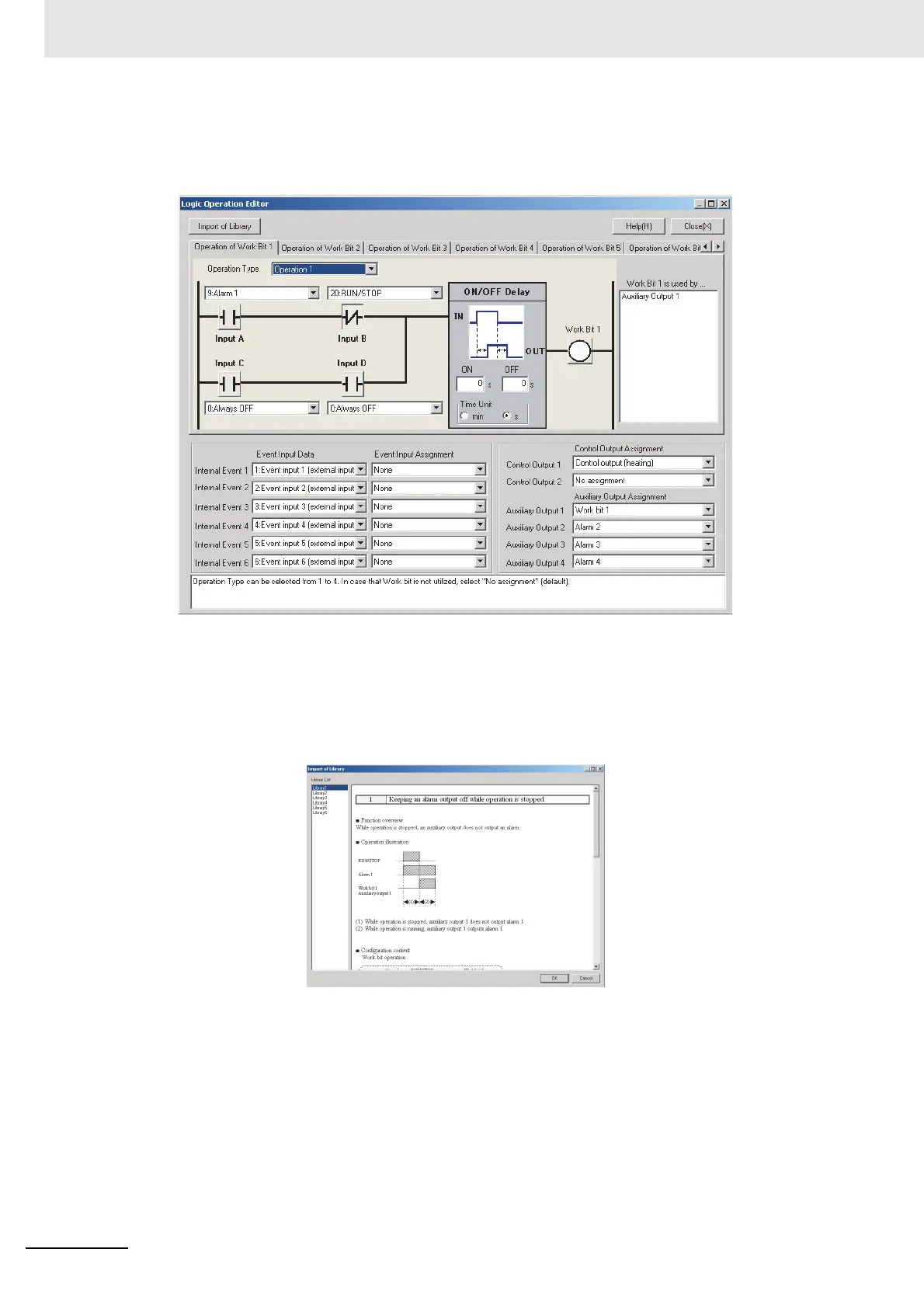

The following display will appear on the Logic Operation Editor Setting Window. Set each of the
parameters.
(1) Displaying the Library Import Dialog Box
Logic operation samples for specific cases are set in the library in advance. Examples of
settings for specific cases are loaded by selecting them from the library list and clicking the
OK Button.
Example: Selecting Library 1
(2) Switching Work Bit Operations
Select the work bit logic operations from the Operation of Work Bit 1 to Operation of Work
Bit 8 Tab Pages.

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
