5 Advanced Operations
E5@C Digital Temperature Controllers User’s Manual (H174)
5-22 Logic Operations
5
5-22-2 Using Logic Operations

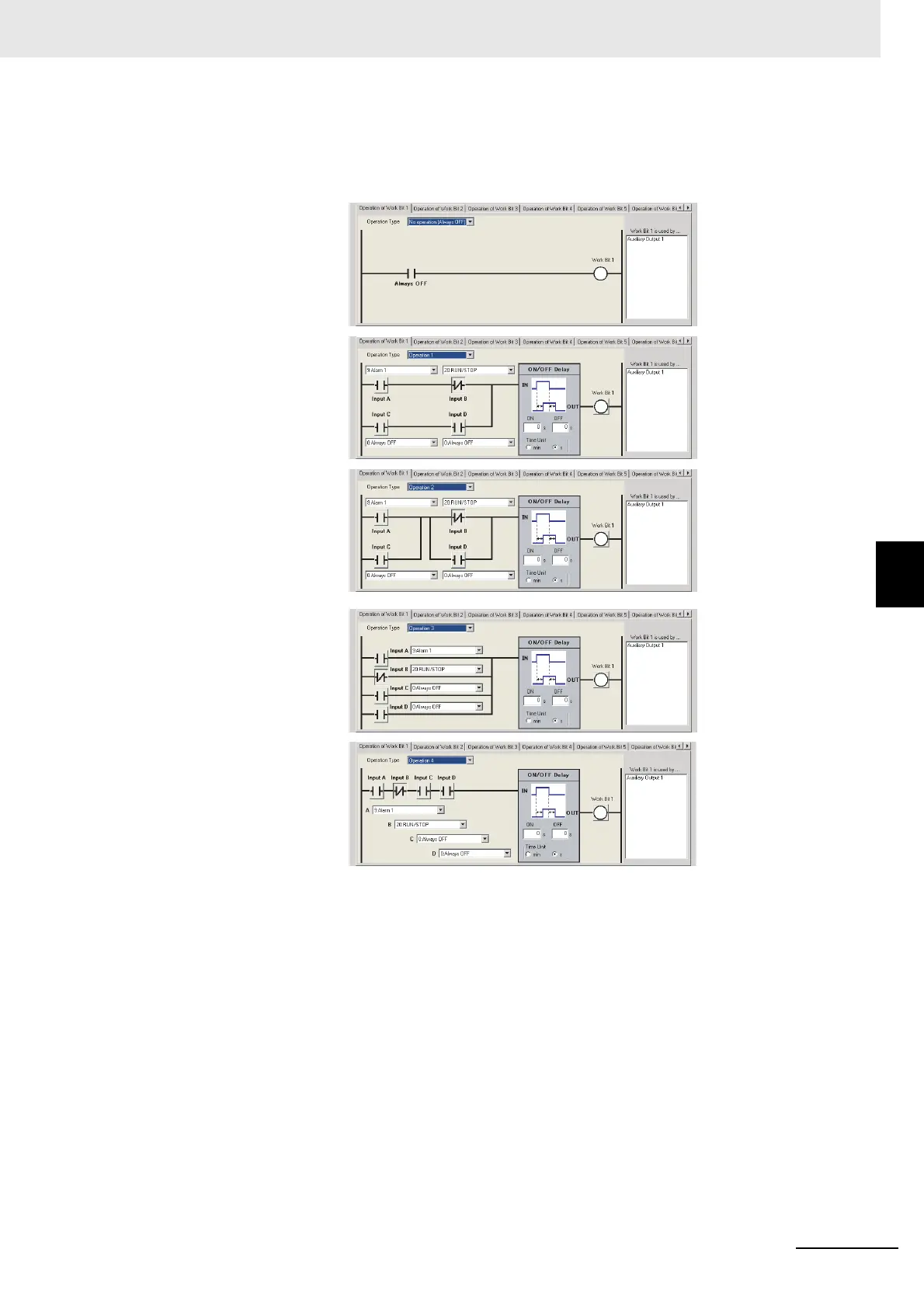

(3) Selecting the Operation Type
From one to four operations are supported. If work bits are not to be used, set them to No
operation (Always OFF) (the default).
• No operation
(Always OFF)
• Operation 1
(A and B) or (C and D)
When conditions A
and B or conditions C
and D are satisfied
• Operation 2
(A or C) and (B or D)
When condition A or C
and condition B or D
are satisfied
• Operation 3
A or B or C or D
When condition A, B,
C or D is satisfied
• Operation 4
A and B and C and D
When conditions A, B,
C and D are all
satisfied

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
