Omron E5EC User Manual

6 Parameters
6 - 64
E5@C Digital Temperature Controllers User’s Manual (H174)
rest
Standby Sequence Reset Alarm 1 to 4 type must be 5, 6, 7, 10, or 11.
• This parameter selects the conditions for enabling reset after the standby sequence of the
alarm has been canceled.
• Output is turned OFF when switching to the Initial Setting Level, Communications Setting
Level, Advanced Function Setting Level, or Calibration Level.
• Condition A
Control started (including when the power supply is turned ON), and an alarm value
(alarm value upper/lower limit), the process value input shift, the process value slope
coefficient, or the SP changed. However, the standby sequence will not be restarted if the
SP is changed with a remote SP.
• Condition B
Power ON

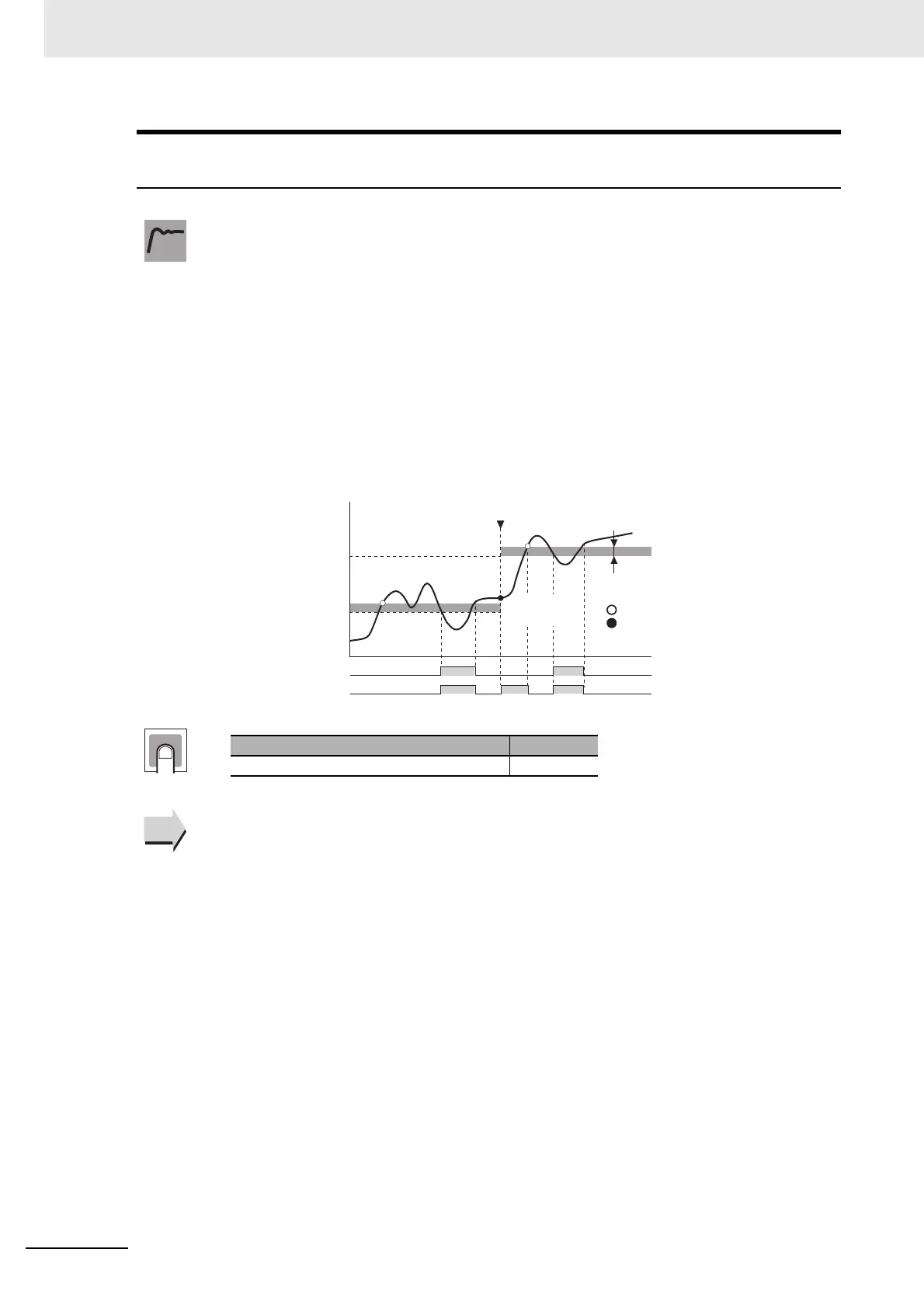

• The following example shows the reset action when the alarm type is lower-limit alarm
with standby sequence.
 Related Parameters
Alarm 1 to 4 Type (Initial Setting Level): Page 6-48
Alarm 1 to 4 Latch (Advanced Function Setting Level): Page 6-71
Function
Alarm
(after change)
Alarm
SP change
Condition A only
Alarm hysteresis
: Standby sequence canceled
: Standby sequence reset
Alarm output:
Condition A
Alarm output:
Condition B
Condition A
only
Setting
Setting range Default
a: Condition A, b: Condition B a
See
See

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
