Omron E5EC User Manual

2 Preparations
2 - 12
E5@C Digital Temperature Controllers User’s Manual (H174)

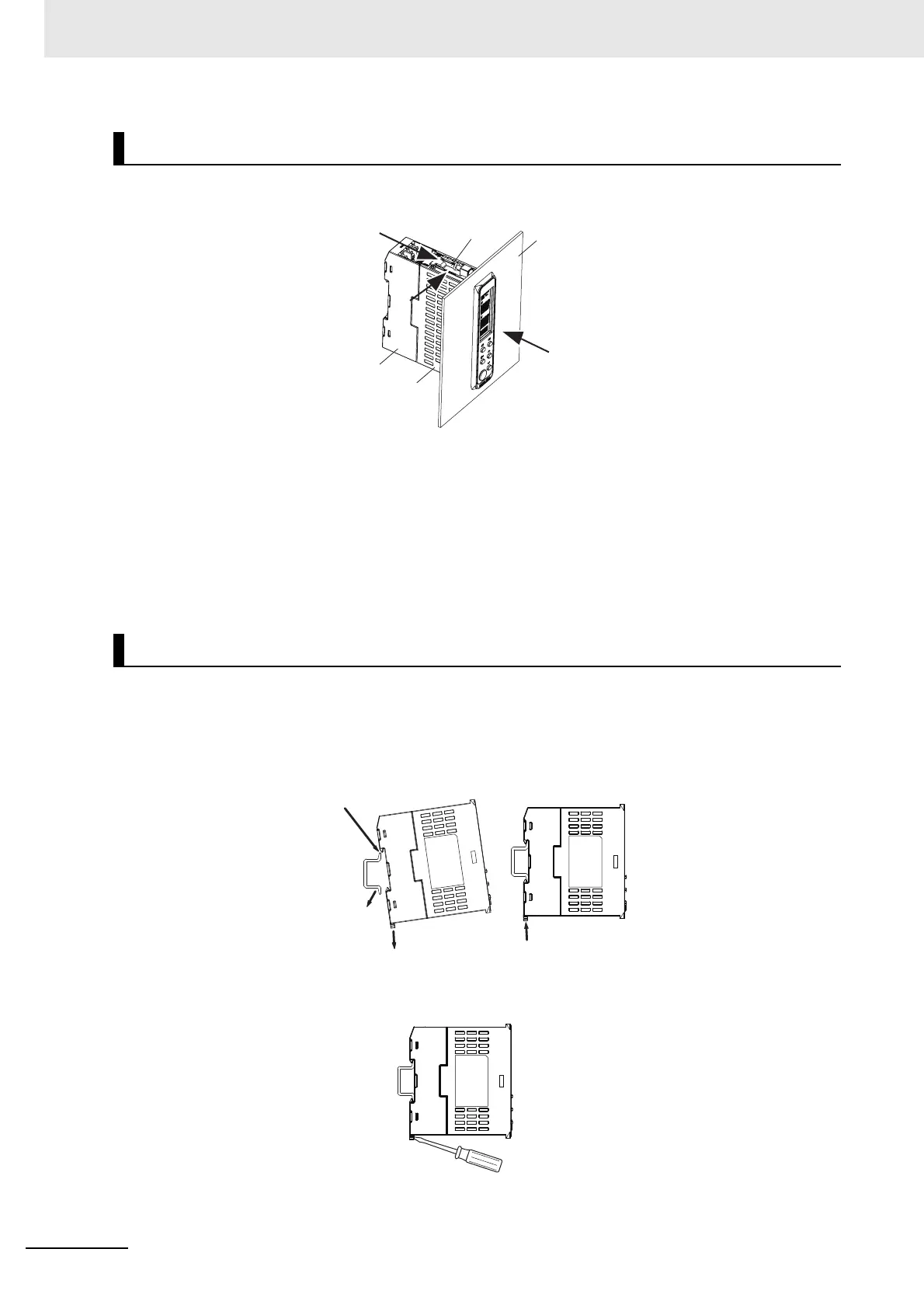

 Mounting to the Panel
1 Insert the E5DC or E5DC-B into the mounting hole in the panel. (Attach the Terminal Unit
after you insert the Main Unit.)
2 Push the Adapter from the Terminal Unit up to the panel, and temporarily fasten the
E5DC or E5DC-B.
3 Tighten the two fastening screws on the Adapter. Alternately tighten the two screws
little by little to maintain a balance.
Tighten the screws to a torque of 0.29 to 0.39 N·m.
 Mounting to and Removing from DIN Track
• Mounting a Unit
Pull down the DIN Track hook on the Terminal Unit and catch the top hook on the DIN Track.
Press the Unit onto the DIN Track until the DIN Track hooks are locked in place.
• Removing a Unit
Pull down on the DIN Track Hook with a flat-blade screwdriver and lift up the Unit.
Common Procedure of E5DC and E5DC-B
E5DC
Panel
Adapter
Terminal Unit
Main Unit
1
2
3
1. Pull down the hook.
2. Catch the top hook on
the DIN Track.
4. Make sure that the hooks
are locked in place.
3. Press the Unit onto
the DIN Track.

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
