2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-1 Installation
2
2-1-3 Mounting
 Removing the Main Unit
Press in the two hooks on the Main Unit and remove the Main Unit from the Terminal Unit.
 End Plate Installation
Make sure to attach PFP-M End Plates to the ends of the Units.
• End Plate (sold separately)
PFP-M
 Mounting to and Removing from DIN Track

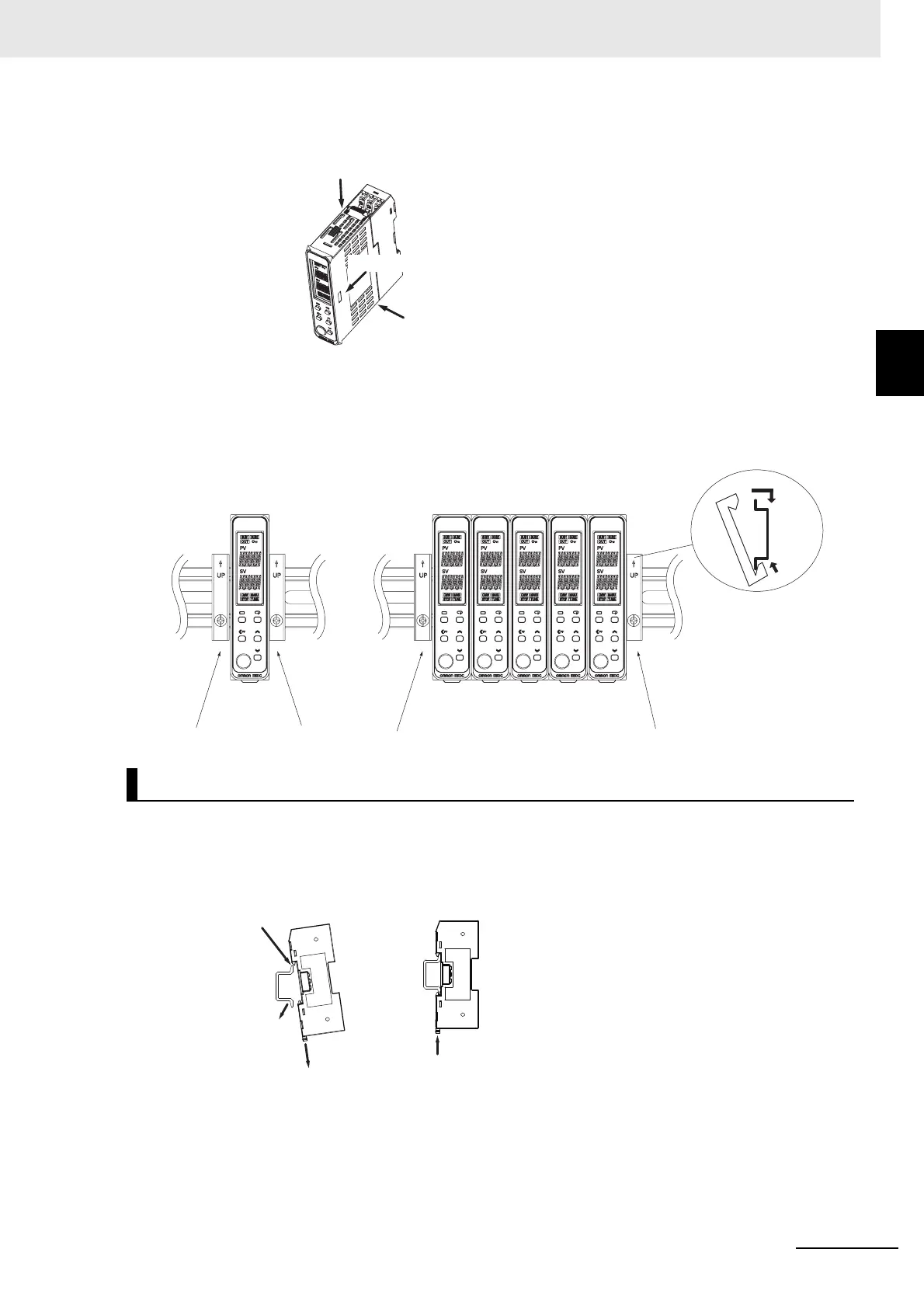

• Mounting a Unit
Mount the Main Unit after first mounting the Terminal Unit on the DIN Track.
E5DC-B
(1)
(1) Push in the hooks.
(2) Pull out the Main Unit.
Individual Mounting Group Mounting
(1)
(2)
(1) Pull down the hook.
(2) Catch the top hook
on the DIN Track.
(3) Press the Unit
onto the DIN
Track.
(4) Make sure that the
hooks are locked
in place.

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
