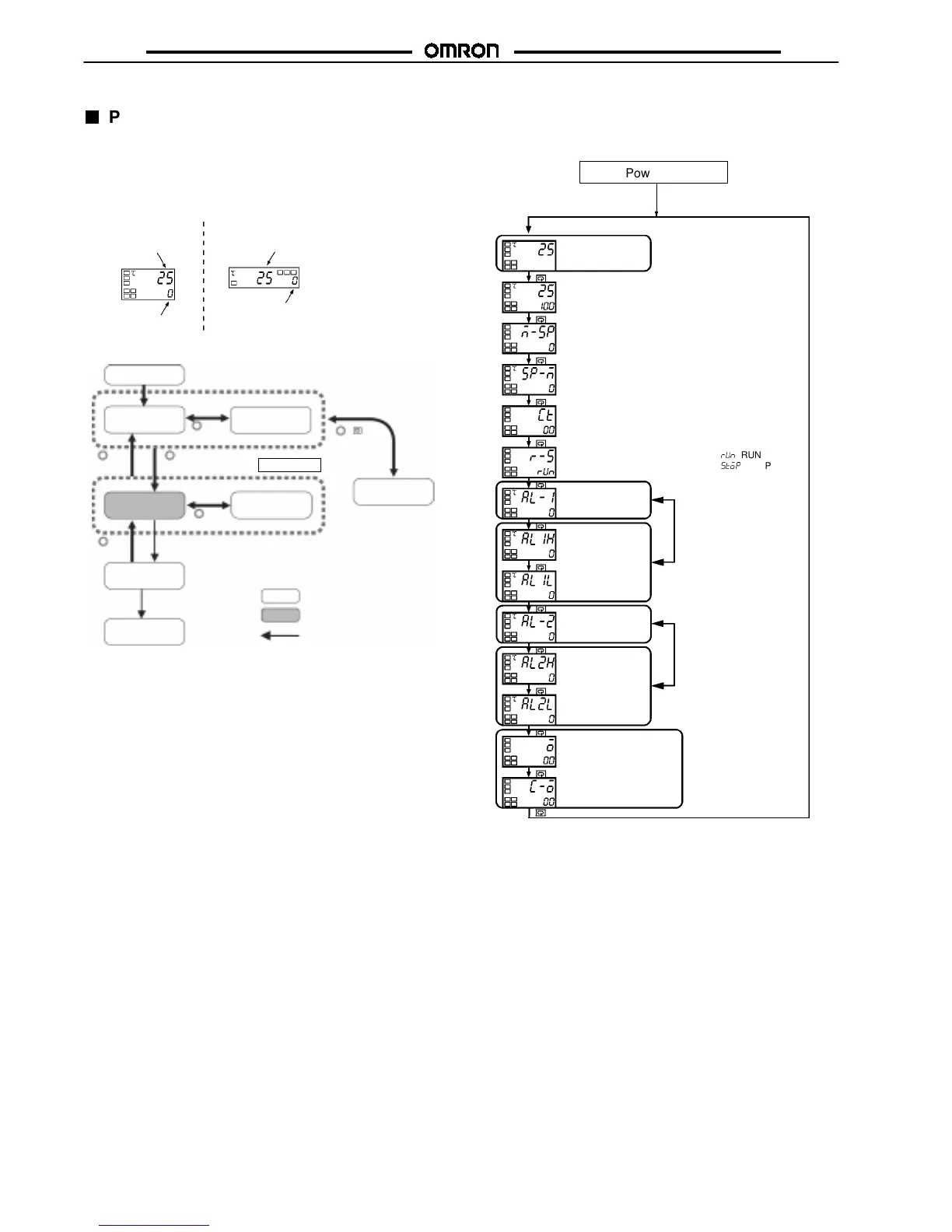

PARAMETERS
Parameters related to setting items for each level are marked in
boxes in the flowcharts and brief descriptions are given as
required. At the end of each setting item, press the mode key to
return to the beginning of each level.
Display
E5CN E5GN
No. 1 display
No. 2 display
No. 1 display
No. 2 display
Password input
set value “1201”
Advanced function
setting level
Calibration level
Password input
set value “-169”
Control stops.
Initial setting level
Less than 1 second
key
Communications
setting level
Power ON
Operation level
1 second min.
+key
Protect level
Control in progress
Control stopped
Adjustment level
1 second
min.
key
1 second
min.
key
3 second min.
key
Level change
Less than 1 second
key
Note: Advanced function levels are for E5CN.
Operation Level
PV
PV/SP
Add in the “additional
PV display” parameter.
Multi-SP
Set point during SP ramp
Heater current value monitor
Run/stop
Alarm value 1
Upper-limit
alarm value 1
Lower-limit
alarm value 1
Set either of
these parameters.
Alarm value 2
Upper-limit
alarm value 2
Lower-limit
alarm value 2
Set either of
these parameters.
MV monitor (heat)
MV monitor (cool)
Current value
monitor of HBA
Select SP.

: RUN

:STOP
Power ON
1
1
1
1
1
1
1
Note: 1. For E5CN only.
