Omron E5GN Instructions

E5GN
E5GN

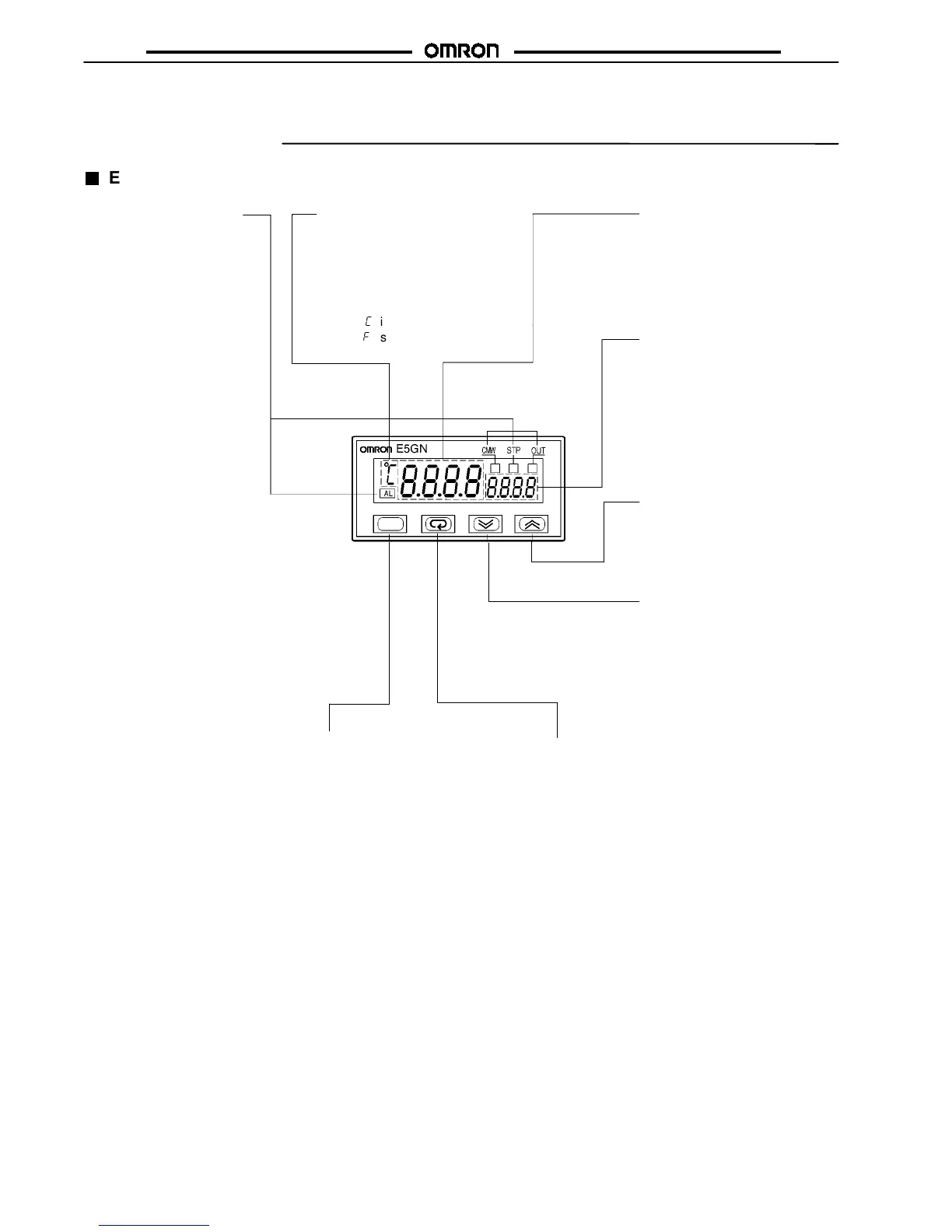

Nomenclature

E5GN
Temperature Unit
The temperature unit is displayed
when the display unit parameter is
set to a temperature. Indication is
determined by the currently
selected “temperature unit” parameter
set value. When this parameter is set
to “
°
C,” “

” is displayed, and when set
to “
°
F,” “

” is displayed.
Operation Indicators
1. AL (alarm)
Lights when alarm output is
ON.
2. CMW (communications
writing control)
Lights when communica-
tions writing is enabled and
is out when it is disabled.
3. STP (stop)
Lights when control of the
E5GN has been stopped.
During control, this indicator
lights when an event or the
run/stop function has been
stopped, or, this indicator is
out.
4. OUT (control output)
Lights when control output
is ON.
No. 1 Display
Displays the process value or
parameter type.
No. 2 Display
Displays the set point, manipu-
lated variable or set value (setup)
of the parameter.
Up Key
Each press of this key increases
values displayed on the No.2
display. Holding down this key
continuously increases values.
Down Key
Each press of this key decreases
values displayed on the No.2
display. Holding down this key
continuously decreases values.
Mode Key
Press this key to select parameters
within each level.
Level Key
Press this key to select the setup
level. The setup level is selected
in this order: “operation level”
←→
“adjustment level,” “initial setting
level”
←→
“communications
setting level.”
Level + Mode Key
This key combination sets the
E5GN to the “protect level.”
