Overview of System Startup Procedure Section 2-1

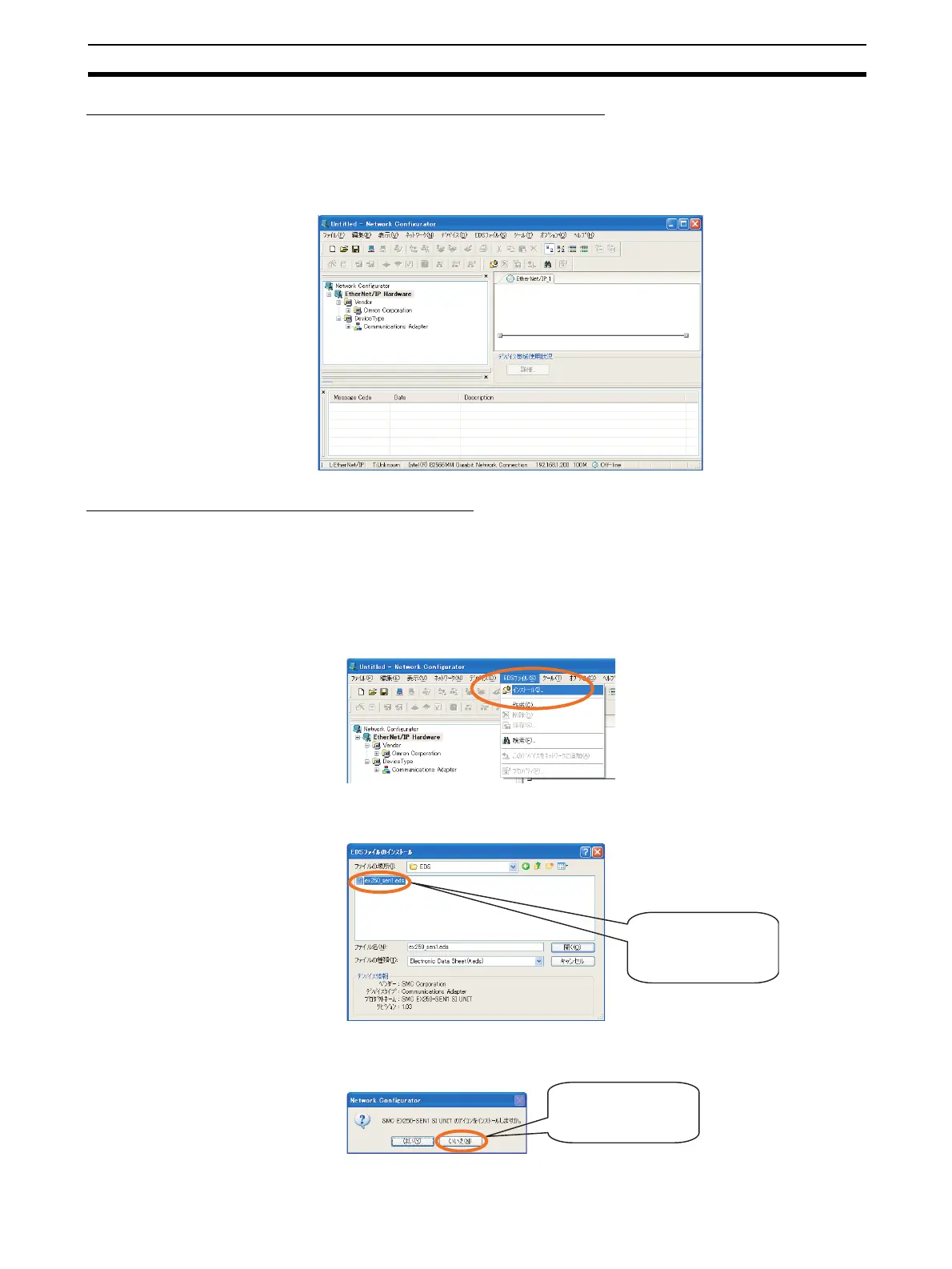

Common Procedure 2. Starting the Network Configurator
Select All Programs
−
OMRON
−
CX-One
−
Network Configurator for Eth-
erNet/IP
−
Network Configurator from the Windows Start Menu. The Net-
work Configurator will start.
The following window will be displayed.
Common Procedure 3. Installing EDS Files
EDS is an acronym for Electronic Data Sheet. An EDS file contains network
device information. The OVDA requires that every EtherNet/IP device has an
EDS file. Contact the manufacturer of the device to obtain an EDS file. Use
the following procedure to install the EDS file.
1,2,3... 1. Using the Network Configurator, select EDS File
−
Install to install the
EDS file for the device to be connected.
2. Select the EDS file of the device to be installed, and then click the Open
Button
3. If there is also a device icon to be installed, click the Yes Button to start the
installation. If there is no icon, click the No Button.
Select the EDS file for
the device to be added.
If there is no icon, click
the No Button.
