Overview of System Startup Procedure Section 2-1
After the connection has been established, the following window will be
displayed.
Common Procedure 5. Uploading the Current Network Configuration
This section explains the procedure for uploading the configuration informa-
tion from the devices connected to the EtherNet/IP network.

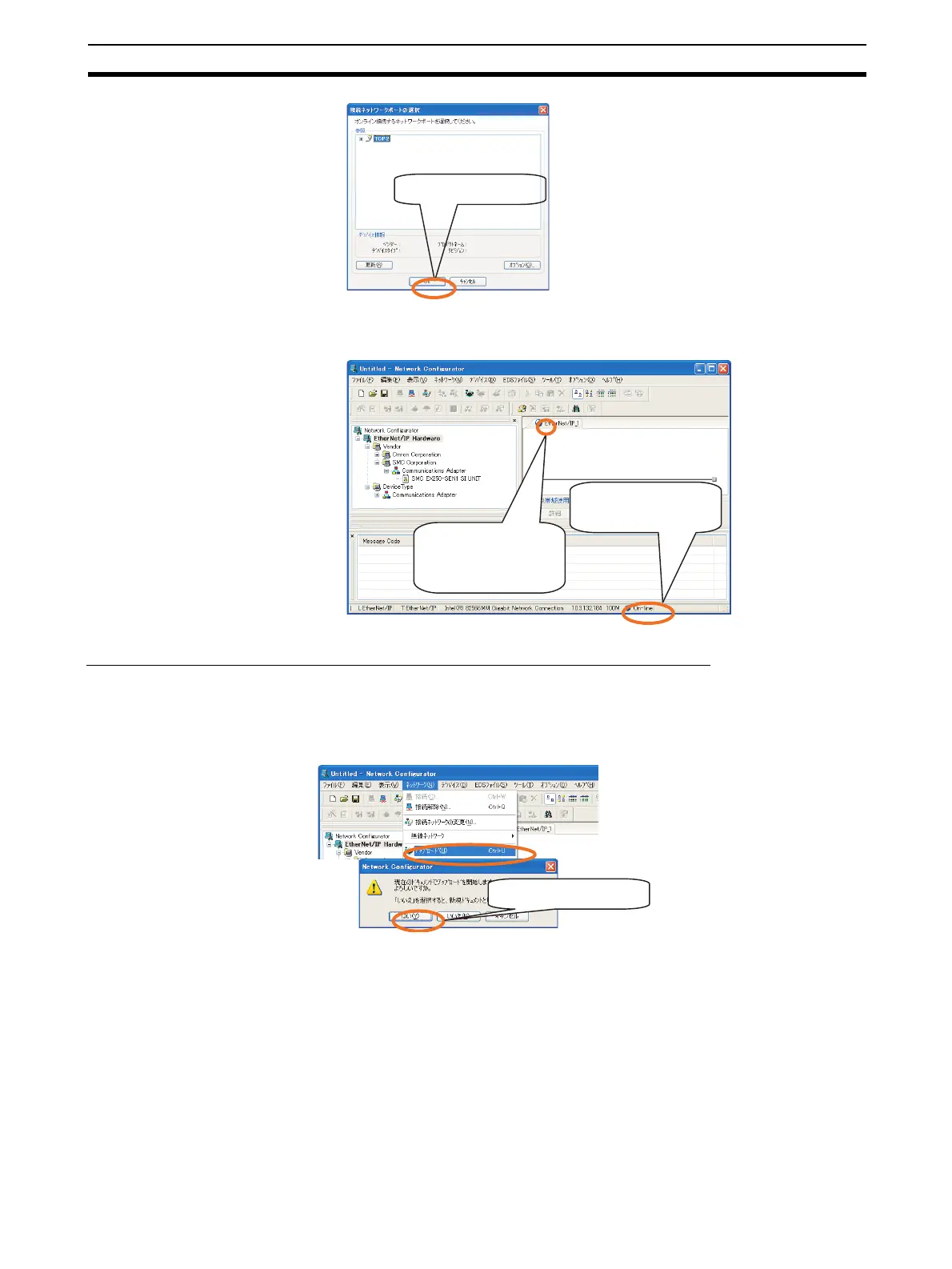

Select Network
−
Upload to start uploading the configuration of the current
network.
If the IP address of a connected device does not appear in the IP addresses
displayed in this dialog box, click the Add Button and register that IP address.
There may also be instances where the IP address of an unconnected device
is displayed. If that occurs, just click the OK Button.
Click the OK Button.
Make sure that online
status is indicated.
Make sure a blue mark
is displayed for
EtherNet/IP_1.
Click the Yes Button.
To Next Page
