Features / Functions of Unit

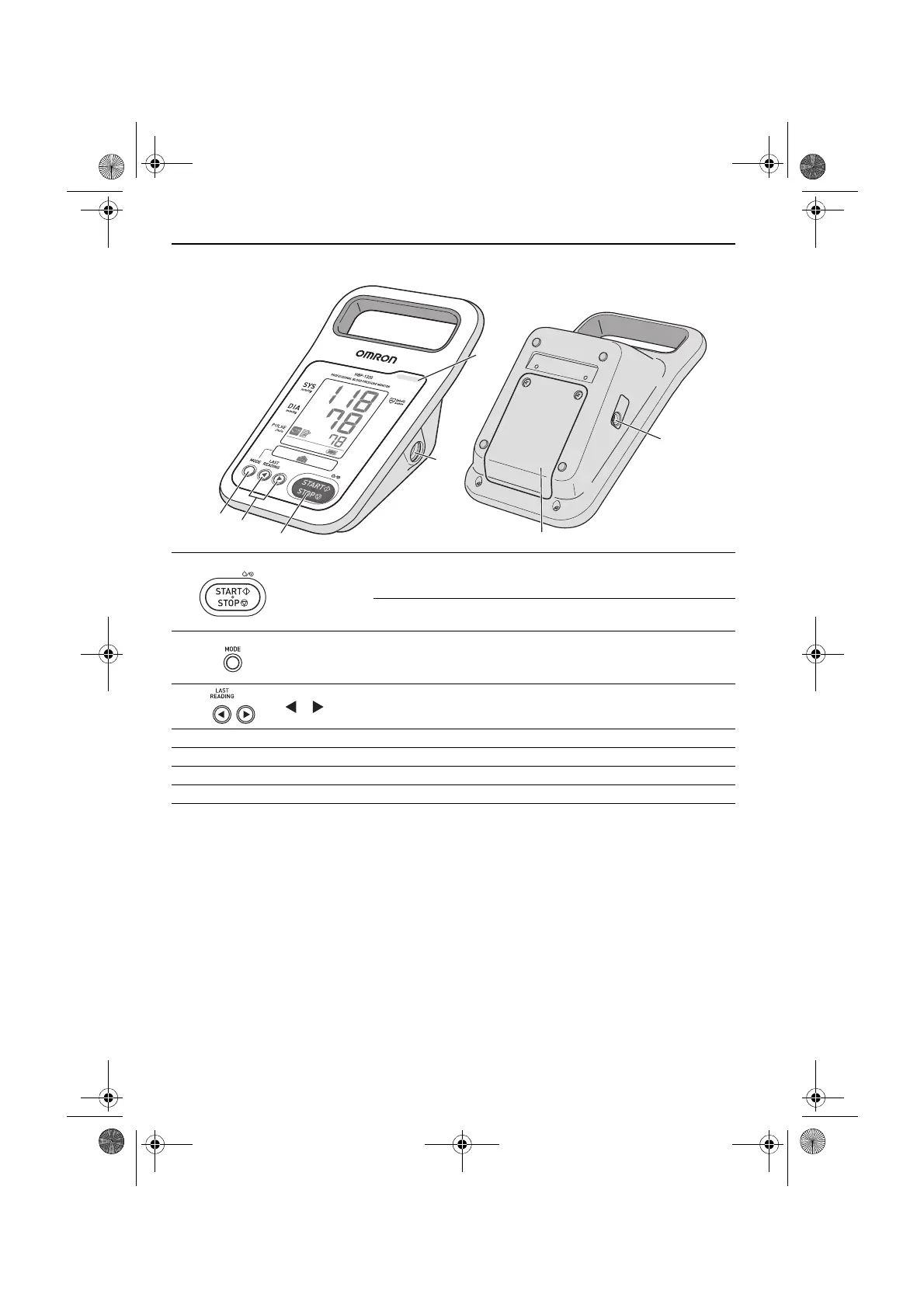

Front and back of unit
Meaning of the Symbols
Please refer to page 32 what the symbols on the units mean.
1
[START/STOP]
button
(Power ON/OFF)
Power ON / Measure blood pressure
Press when the power is off to turn on the power and start blood
pressure measurement. During inflation or measurement, press to stop.
Power OFF
Hold down at least 3 seconds to turn off the power.
2 [MODE] button
Press to enter “Menu Mode” and configure various settings.
If held down at least 3 seconds when a measurement result is displayed,
the measured data is cleared without being stored in memory.
3
[] [] button
Displays the system settings (page 16) and the last reading (page 23).
When using “Auscultation Mode”, inflates and deflates the cuff.
4 Alarm lamp Lights up or flashes when an alarm occurs (page 28).
5 NIBP connector Connects the cuff tube.
6 DC jack Connects the AC adapter.
7 Battery cover Open to install or replace the battery.
