Omron MicroHAWK F320-F User Manual

2-25
2 System Components
MicroHAWK F320-F / F330-F / F420-F / F430-F Smart Camera User Manual
2-6 I/O Wiring
2
2-6-2 MicroHAWK F430-F
The camera has optoisolated outputs that can transfer signals from the camera to
peripherals. Outputs can be configured as either NPN or PNP, but NPN and PNP cannot be mixed in a
system, because the output common is shared by all outputs.

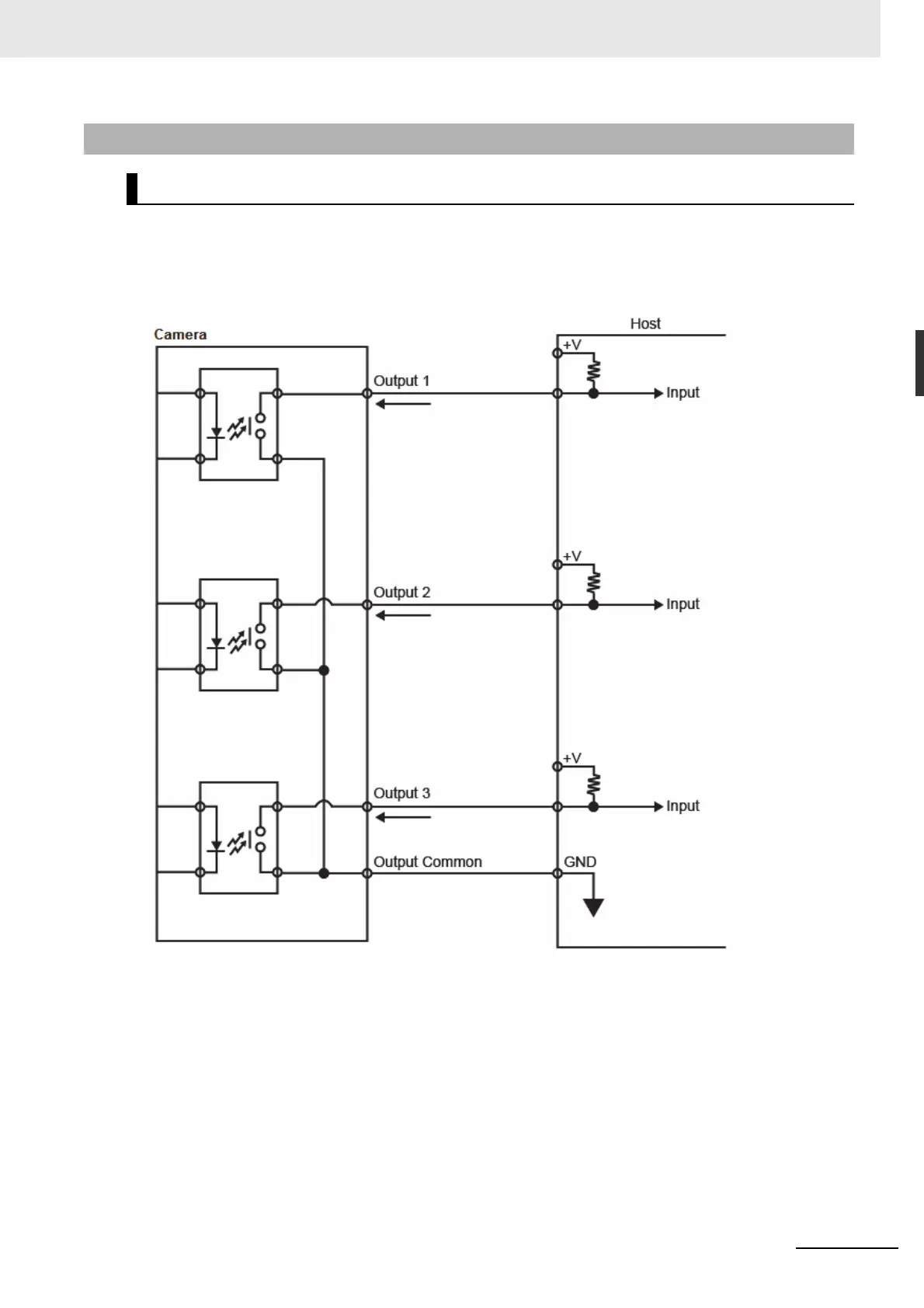

 NPN Output for Host Input
2-6-2 MicroHAWK F430-F
Optoisolated Outputs
