Omron MicroHAWK F320-F User Manual

4 Optics and Lighting
4-10
MicroHAWK F320-F / F330-F / F420-F / F430-F Smart Camera User Manual
Warning: Contact between Pin 5 (gray wire) and any voltage source greater than 3.5VDC will damage
the illuminator.
Insulate Pin 5 (gray wire)

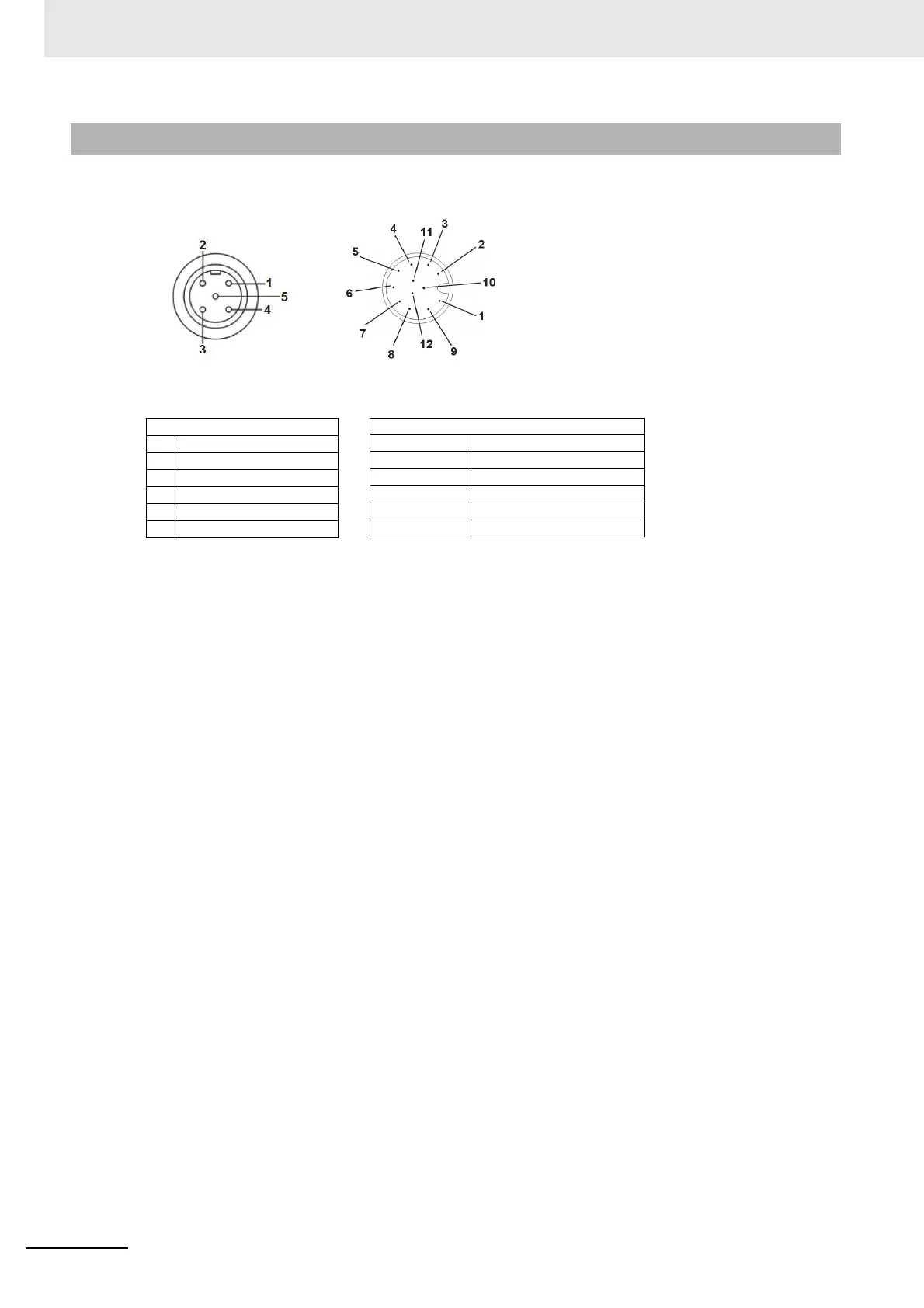

4-4-3 Wiring for ON/OFF Illumination (NPN Only)
F430-F Connector A
Smart Series Illuminator
Connector
Smart Series Illuminator
Pin Signal Name
1 +24VDC
2 Trigger –
3 DC Ground
4 Trigger +
5 Dim
(Connector A)
Pin Signal Name
2 Power
7 and 12 Ground and Output Common
7 and 12 Ground and Output Common
2 Power
6 Output 3
to
to
to
to
to
