4 Optics and Lighting
MicroHAWK F320-F / F330-F / F420-F / F430-F Smart Camera User Manual
4-4 MicroHAWK F430-F External Illumination Control and Wiring
4

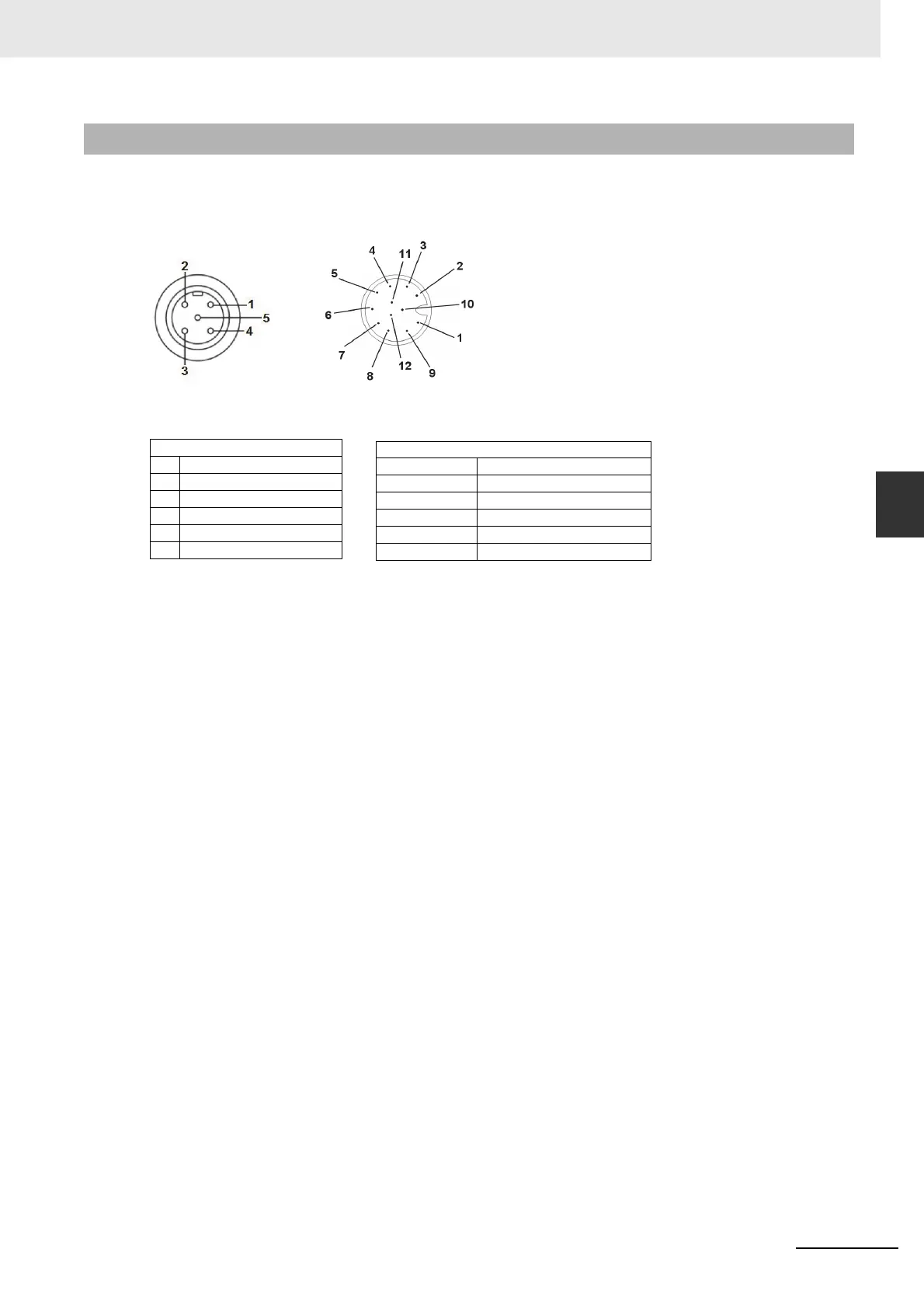

4-4-4 Wiring for Continuous Illumination
Warning: Contact between Pin 5 (gray wire) and any ground or voltage source less than or equal to
3.5VDC may cause erratic operation in this configuration. Contact between Pin 5 (gray wire) and any
voltage source greater than 3.5VDC will damage the illuminator.
Insulate Pin 5 (gray wire)
4-4-4 Wiring for Continuous Illumination
F430-F/F420-F
Connector A
Smart Series Illuminator
Connector
Smart Series Illuminator
Pin Signal Name
1 +24VDC
2 Trigger –
3 DC Ground
4 Trigger +
5 Dim
(Connector A)
Pin Signal Name
2 Power
7 Ground
7 Ground
2 Power
No Connection* N/A
to
to
to
to
to
