6-3 Troubleshooting
6
6-3-1 Software Trouble
28
When a new project is created, what roles do the windows coming with the system play
respectively, and can they be deleted
It’s better not to delete or alter the windows coming with the system, especially for new users,
because each window plays a specific role.
The indications of the windows are as follows:
Window 0: default Startup Window (Frame 0), which can be used for editing the first page.
Window 1: Common Window, in which there are two direct windows used for ejecting the
numeric keyboard coming with the system, and what is more, all the components in the
Common Window work in any of windows of the project.
Window 2: Fast Selection Window, used for ejecting the taskbar, and users can place a page-
turning button in this window.
Windows coming with the system also include:
NUM keyboard
ASCII keyboard
HEX Keyboard
Operator Confirm Window: this window is used together with the [Operator Confirm] of the
attributes page of [Control Setting].

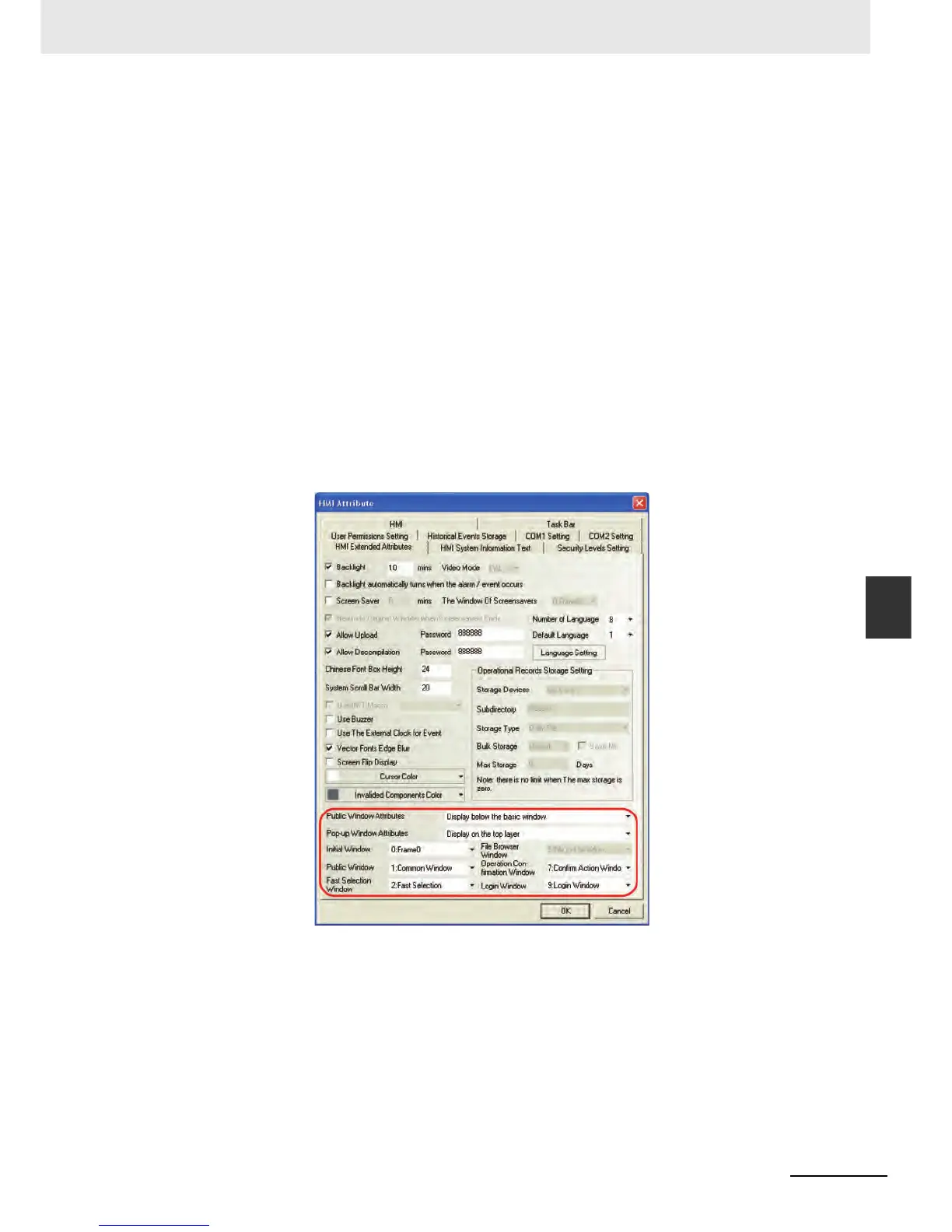

You can change the attributes of the windows coming with the system in [HMI Extended
Attributes] of [HMI Attribute], as shown below:
