29
What methods are there for triggering (executing) macro programs
There are 5 kinds of triggering methods for macro instructions, from which users can choose
the triggering methods they need.

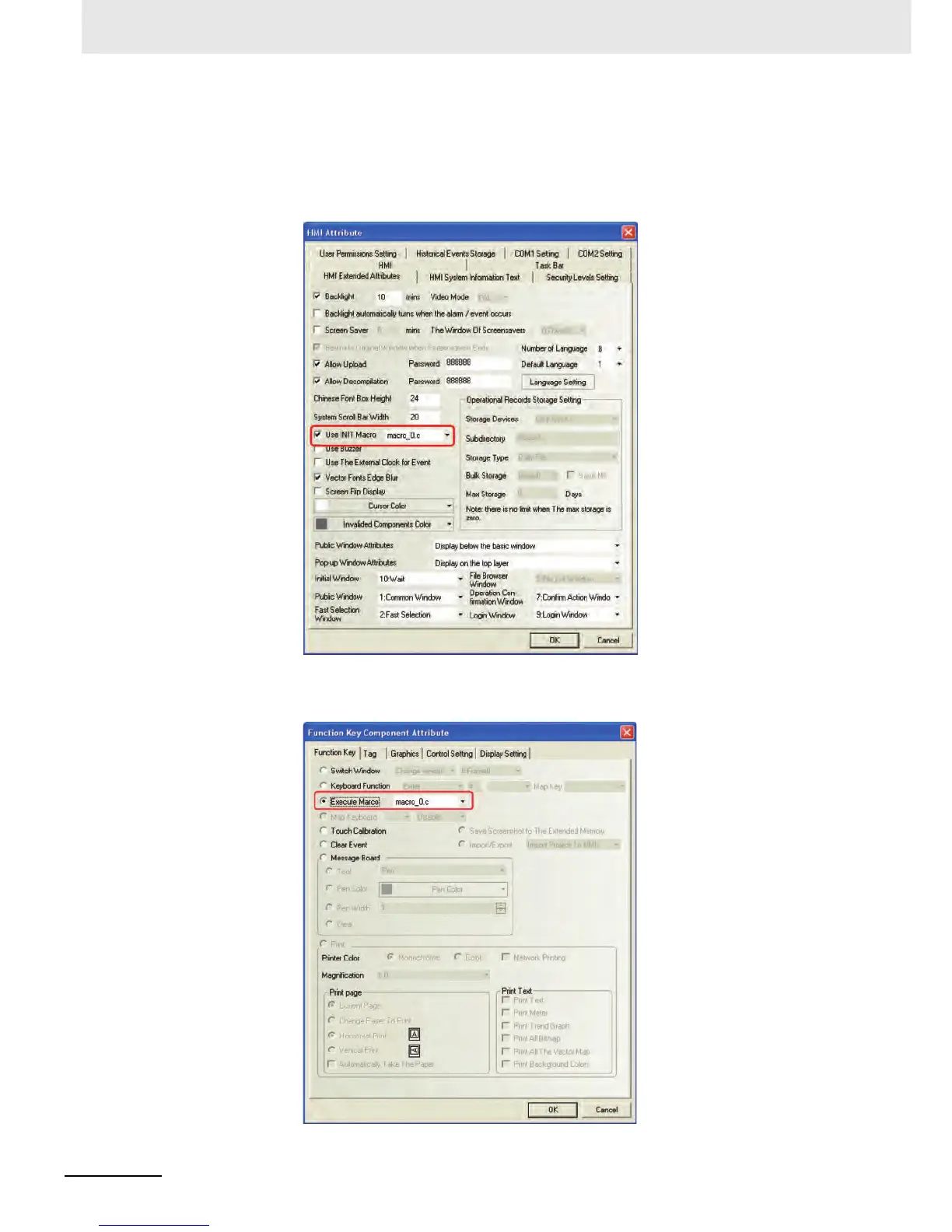

Method 1: [HMI Attribute] Æ [HMI Extended Attributes] Æ [Use INIT Macro]: When the HMI is
energized and started, the set macro program is executed once, as shown below:
Method 2: [Function Key] Æ [Execute Macro]: each time the Function Key is clicked, the macro
program is executed once, as shown below:
To Next Page
